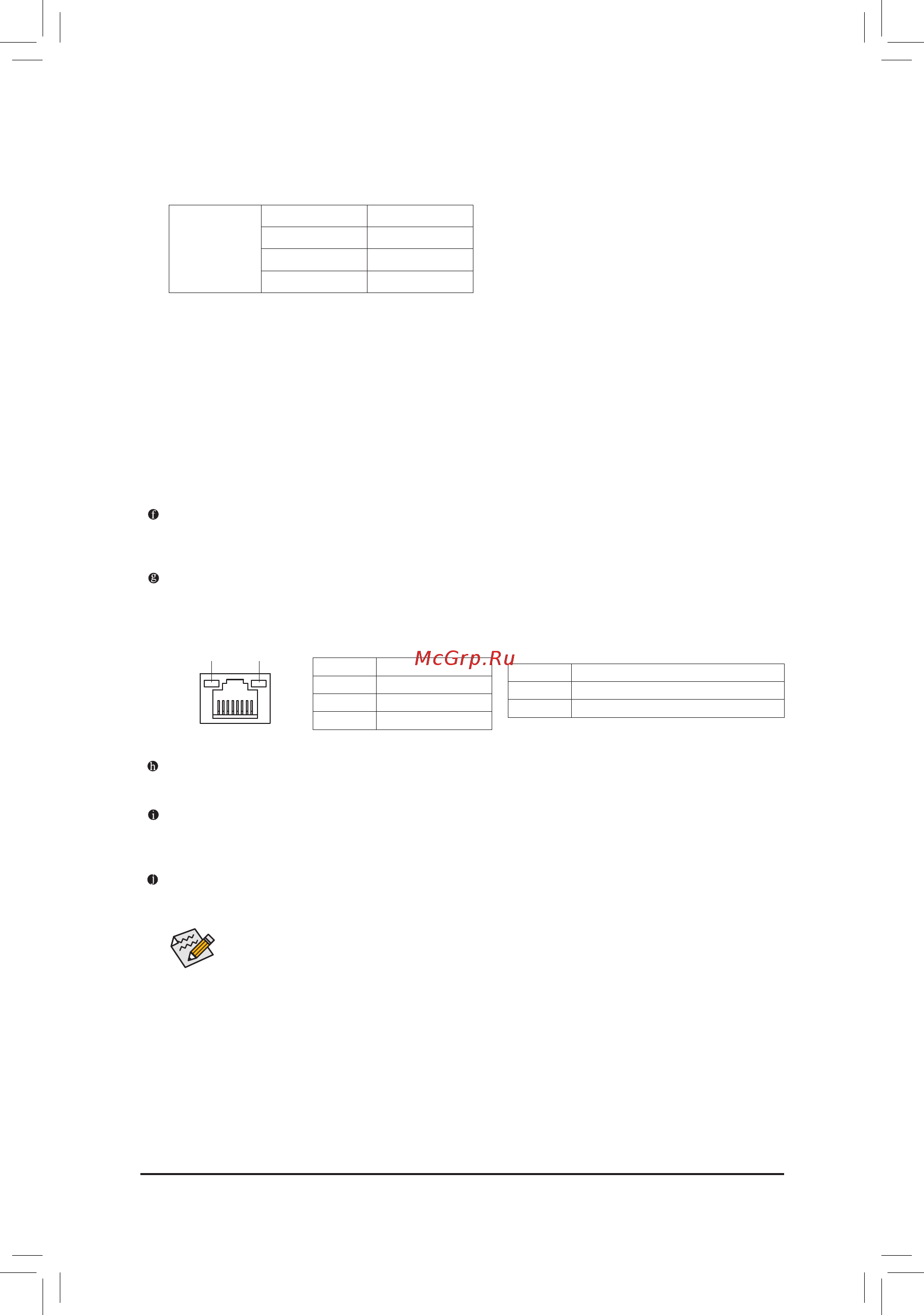

Gigabyte GA-78LMT-USB3 R2 (rev. 1.0) [10/35] A dual displayconfigurations

- 10 -

Line In (Blue)

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out (Green)

The line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to

connect front speakers in a 4/5.1/7.1-channel audio conguration.

Mic In (Pink)

The Mic in jack. Microphones must be connected to this jack.

To congure 7.1-channel audio, you have to use an HD front panel audio module and enable the

multi-channel audio feature through the audio driver.

Activity LED

Connection/

Speed LED

LAN Port

Activity LED:

Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

USB 3.1 Gen 1 Port

The USB 3.1 Gen 1 port supports the USB 3.1 Gen 1 specication and is compatible to the USB 2.0

specication. Use this port for USB devices.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

B. Playback of Blu-ray Discs:

In order to get better playback quality, when playing the Blu-ray discs, refer to the recommended system

requirements (or better) below.

• Memory: Two 1 GB DDR3 1066 MHz memory modules with dual channel mode enabled

• BIOS Setup: At least 256 MB of UMA Frame Buffer Size (refer to Chapter 2, "BIOS Setup," "Advanced

BIOS Features," for more information)

• Playback software: CyberLink PowerDVD 10.0 or later (Note: Please ensure Hardware Acceleration is

enabled.)

• HDCP compliant monitor(s)

A.Dual-DisplayCongurations:

This motherboard provides three video output ports. The table below shows the supported dual display

congurations.

Dual-Display Combination Supported or Not

D-Sub + DVI-D Yes

D-Sub + HDMI Yes

DVI-D + HDMI No
