- 13 -

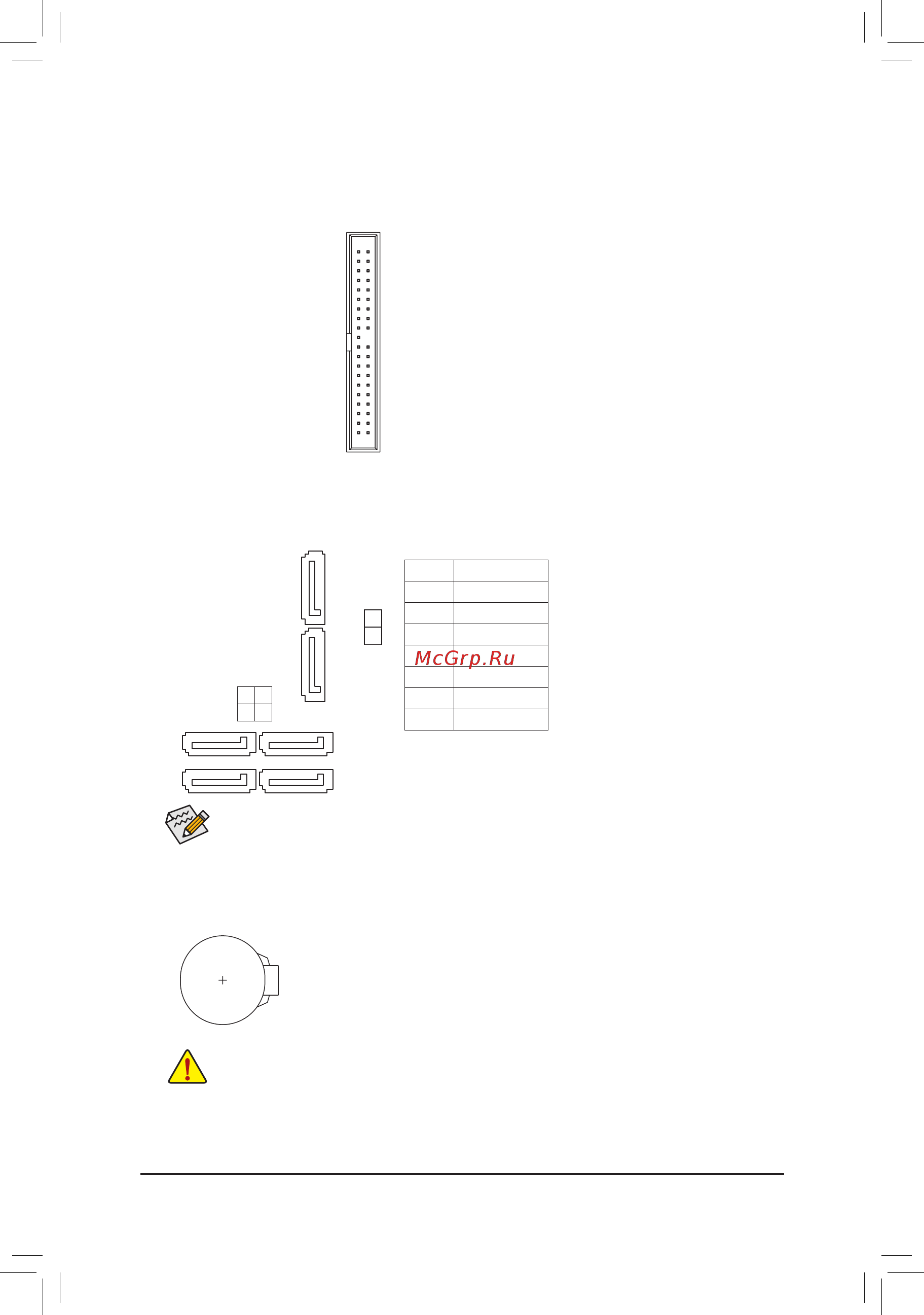

5) IDE (IDE Connector)
The IDE connector supports up to two IDE devices such as hard drives and optical drives. Before attaching
the IDE cable, locate the foolproof groove on the connector. If you wish to connect two IDE devices, remember
to set the jumpers and the cabling according to the role of the IDE devices (for example, master or slave).
(For information about conguring master/slave settings for the IDE devices, read the instructions from the
device manufacturers.)
6) SATA2 0/1/2/3/4/5 (SATA 3Gb/s Connectors)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
Each SATA connector supports a single SATA device. The AMD South Bridge supports RAID 0, RAID 1,
RAID 10, and JBOD. Refer to Chapter 3, "Conguring a RAID Set," for instructions on conguring a RAID
array.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
7) BAT (Battery)
The battery provides power to keep the values (such as BIOS congurations, date, and time information)
in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low
level, or the CMOS values may not be accurate or may be lost.
You may clear the CMOS values by removing the battery:
1. Turn off your computer and unplug the power cord.
2. Gently remove the battery from the battery holder and wait for one minute. (Or use a metal
object like a screwdriver to touch the positive and negative terminals of the battery holder,
making them short for 5 seconds.)
3. Replace the battery.
4. Plug in the power cord and restart your computer.
Always turn off your computer and unplug the power cord before replacing the battery.
Replace the battery with an equivalent one. Damage to your devices may occur if the battery is replaced
with an incorrect model.
Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncertain
about the battery model.
When installing the battery, note the orientation of the positive side (+) and the negative side (-) of the battery
(the positive side should face up).
Used batteries must be handled in accordance with local environmental regulations.
1
39
2
40
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
7
7
1
1
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
SATA2
5
4
SATA2
2 3
0 1
7
1
To enable hot-plugging for the SATA ports, refer to Chapter 2, "BIOS Setup," "Integrated Peripherals\OnChip
SATA Port as ESP," for more information.
