2 / INSTALLING YOUR APPLIANCE

• CONNECTING YOUR APPLIANCE

— Connect the intake hose to a valve with a

threaded end Ø 20x27 (3/4 BSP).

Check presence of the seal.

Water intake :

— Min. water pressure : 0,1 MPa or 1 bar

— Max. water pressure : 1 MPa or 10 bars

••

Electrical power supply (Fig. 13) :

The electrical installation must comply with

the prevailing standards and the Electricity

Board’s regulations in the country concerned,

in particular for the earth electrode.

We cannot be held liable for any incident cau-

sed by incorrect electrical installation.

Tip :

Tips for electrical installation of your

appliance :

— Do not use an extension cord, adaptor or

multiple plug.

— Never remove the grounding.

— The plug must be easy to access but out of

the reach of children.

In the event of uncertainty, consult your ins-

taller.

••

Cold water supply (Fig. 13) :

— Connect the emptying hose :

- either temporarily, to a sink or bathtub

- or permanently, to a ventilated siphon.

If your set-up does not have a ventilated

siphon, ensure that the connection is not

watertight.

In fact, to prevent waste water from returning

to the machine, we strongly recommend lea-

ving free space between the machine's emp-

tying hose and the discharge pipe.

In any case, the emptying crosshead must be

placed at a height of 0.80 m to 1.10 m in rela-

tion to the base of the machine.

Important :

Ensure the emptying hose is supported

using an attachment to prevent the cross-

head from coming off during emptying and

causing a flood.

Important :

Your appliance complies with

European directives 2006/95/CE (low vol-

tage directive) and 2004/108/CE (electro-

magnetic compatibility).

••

Discharge of waste water (Fig. 13) :

2 / INSTALLING YOUR APPLIANCE

• SETTING UP YOUR APPLIANCE

••

Placement on rollers :

Your machine has retractable rollers so that

you can move it easily.

To place it on rollers, turn the lever at the base

of the appliance from the right to the extreme

left

(Fig. 10).

Important :

During operation, the machine must

not rest on its rollers: do not forget to return

the lever to its initial position.

••

Levelling :

Your machine is equipped with two adjustable

feet in front to compensate for unevenness in

the floor. To adjust horizontality and stability

of the appliance, proceed as follows:

— Remove the baseboard

(see Fig. 04, pre-

vious pages).

— Place the machine on rollers.

— Unscrew the 2 screws used to block the feet

using a TORX T20 screwdriver

(Fig. 11).

— Adjust the two feet using a flat head wrench

or pliers to level the appliance.

— Put the appliance back on its feet and return

the lever to its original position.

— Check the stability of the machine by pres-

sing on the lid in a diagonal direction (direc-

tion AA then direction BB)

(Fig.12)

. There

must be no visible movement of the

appliance.

— When the adjustment is correct, screw the 2

screws for blocking the feet and reattach the

baseboard.

••

Environment :

Important :

If you place your machine next to ano-

ther appliance or piece of furniture, we

recommend that you always leave a space

between them to allow air to circulate.

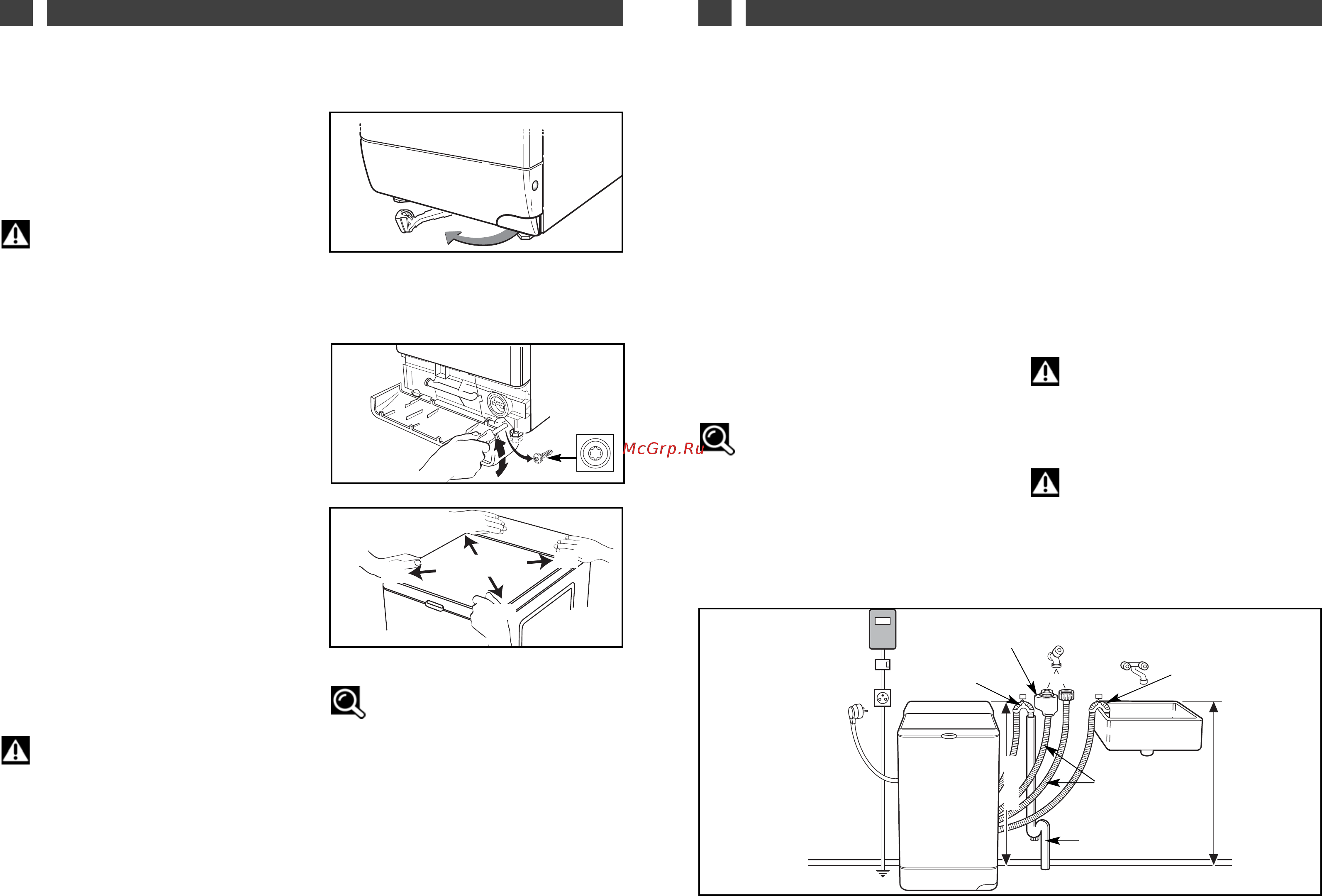

Fig. 10

Tip :

We strongly advise against installing

your appliance :

— in a damp, poorly-ventilated room.

— in a place where it could be subject to water

splattering.

— on a carpeted floor. If you cannot avoid it,

take all precautions so as not interfere with air

circulation at the bottom, to ensure good ven-

tilation of the internal components.

Fig. 12

Fig. 11

Fig. 13

For models equipped with a

hose with safety box: fitting can

be in any direction

discharge into sink

1,10 m maxi

0,80 m mini

ventilated siphon

water intake hose (dif-

ferent according to

model)

discharge on

ventilated siphon
