- 103 - Gigabyte Server Management Console
2-7 Remote Control
The system and browser requirements for Remote Control are given below.
System Requirements
• Client machine with 8GB RAM.
• If the client machine has 4GB RAM, there will be lag in Video/keyboard/mouse
functionality.
Supported Browsers
• Chrome latest version.
• IE 11 and above.
• Firefox (with limited support).
Note: It is advisable to use Chrome or IE for H5Viewer, since Firefox has its own
memory limitations.

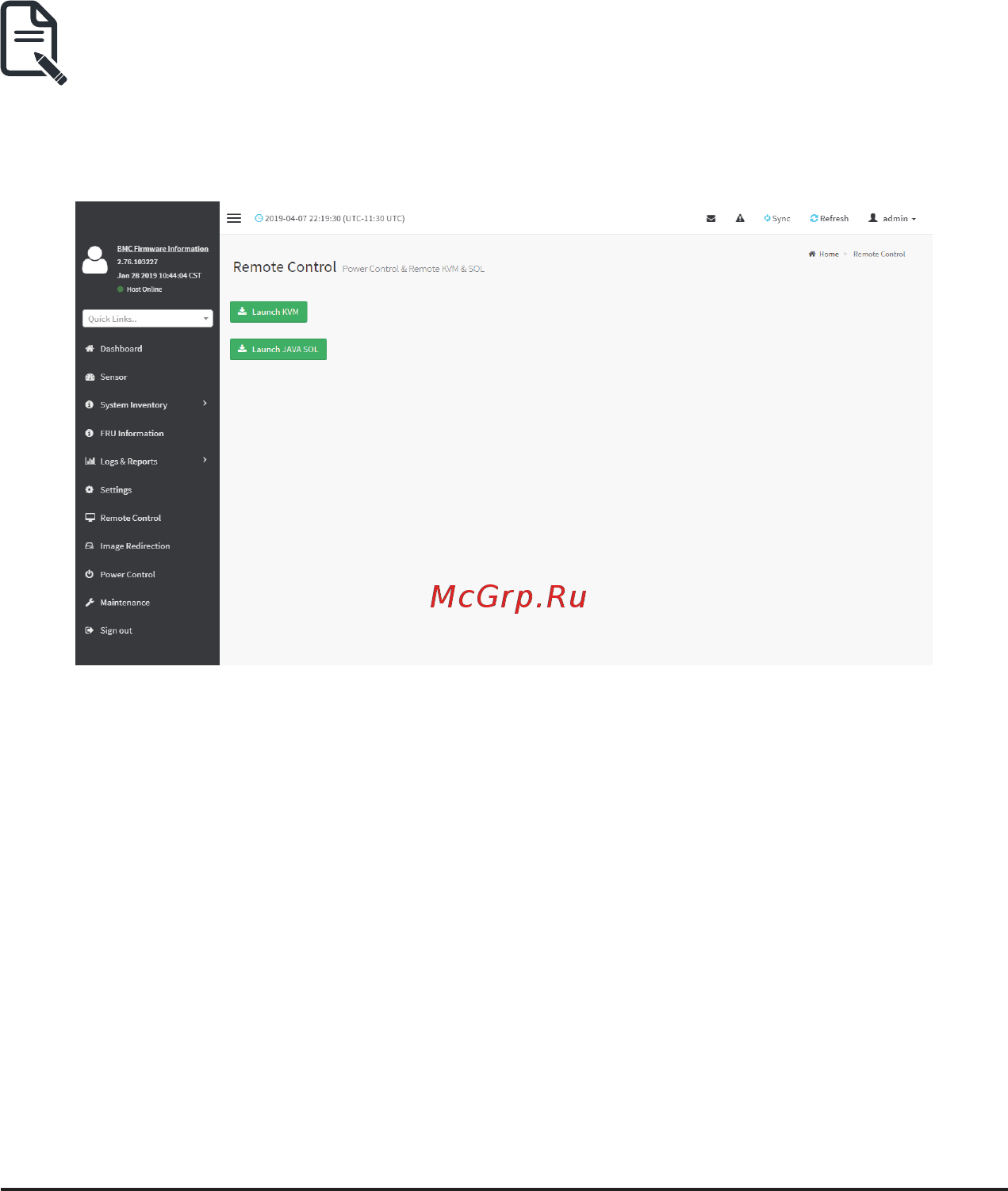

To open Remote Control page, click Remote Control from the menu bar. A sample screenshot of
the Remote Control page is shown below.
A detailed description of the menu items are given on the next page.
