Gigabyte MD71-HB1 (rev. 1.x) [106/134] Procedure to start kvm

Gigabyte Server Management Console - 106 -

Browse File:UsedtoselecttheCDimageletoberedirectedtothehost.

Start Media:RedirectstheselectedCDimageletothehost.

Stop Media: Stops the CD media redirected to the host.

Procedure To Start KVM

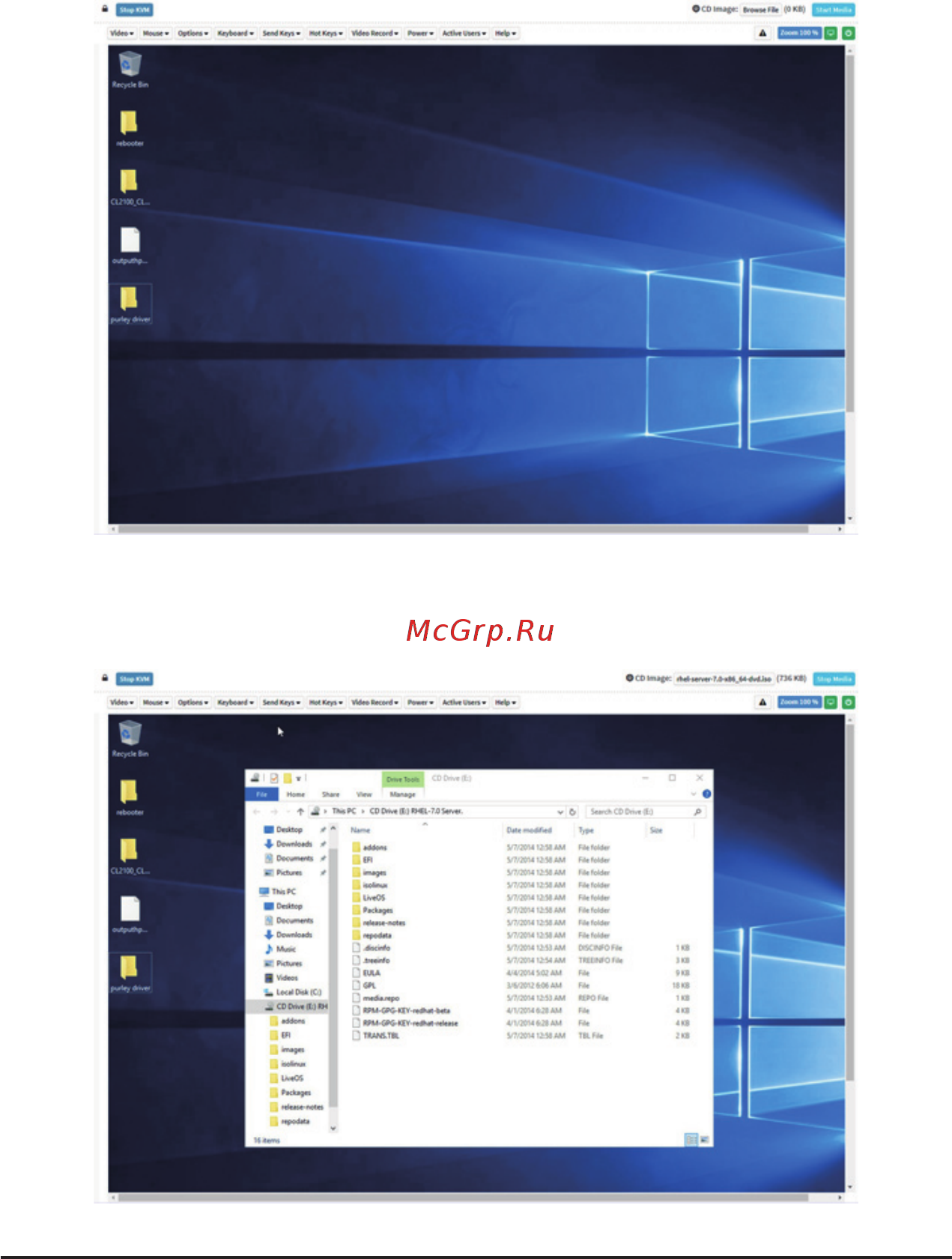

1. Click Start KVM to start the H5Viewer video redirection. A sample screenshot is as

shown below.

2. Click Browse to select CD Image.

3. ClickStartMediatoredirecttheselectedCDimageletotheHost.Asamplescreenshot

is as shown below.
