- 77 - Gigabyte Server Management Console
TheeldsofFirewallSettingstabareexplainedbelow.
To View Existing Firewall Settings
Click General Firewall Settings > Existing Firewall Settings icon. A blank page will be opened
if you did not add anything in “Add Firewall Settings”. If any settings are added, then the added

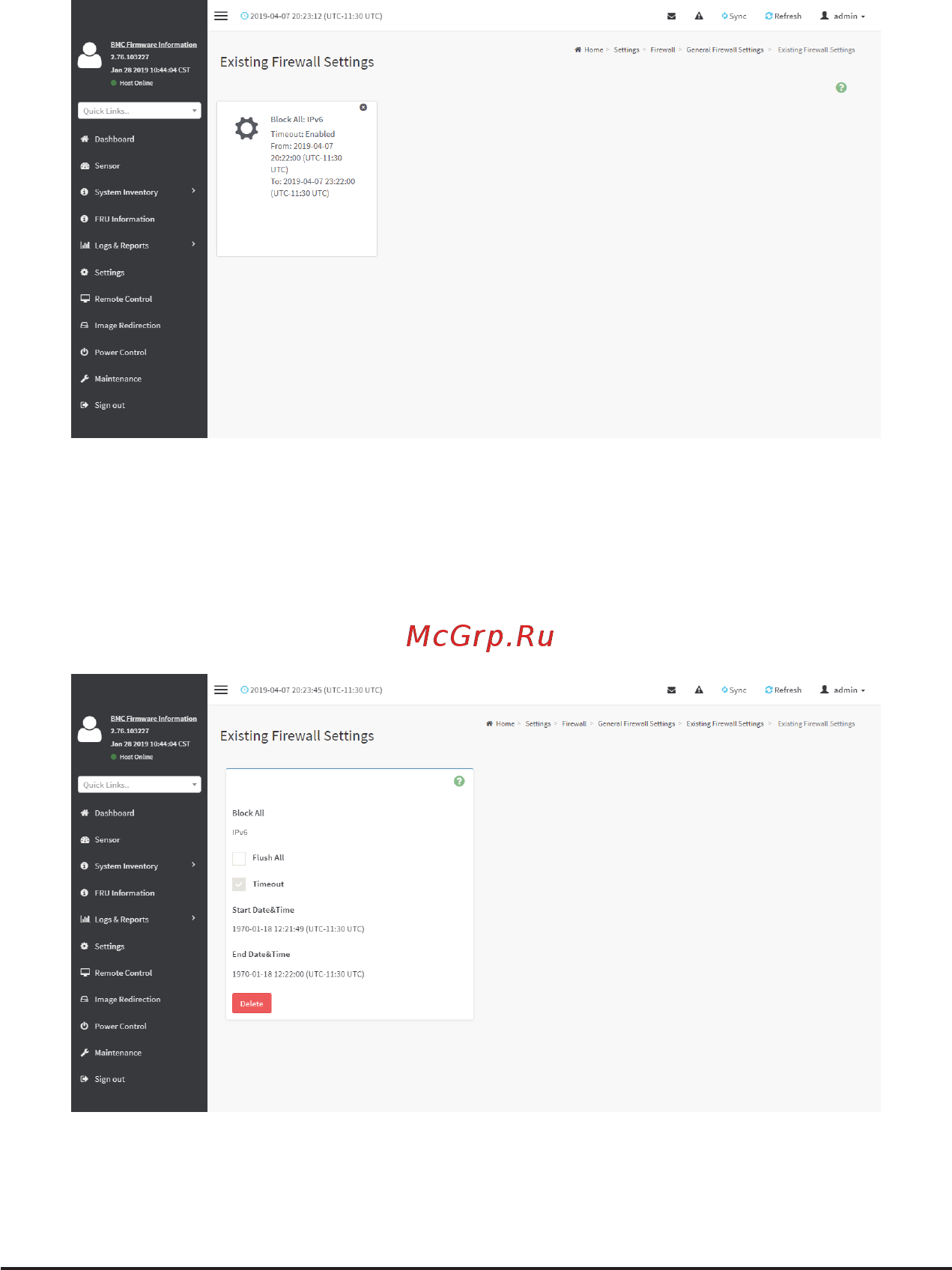

rule will be listed in “Existing Firewall Settings” page. A sample screenshot of Existing Firewall
Settings page is shown below.
The Existing Firewall Settings page allows you to remove any particular Existing Firewall
Settings.
Procedures
1. Select the Existing Firewall Settings you want to remove.
2. Click on Delete to remove the selected Existing Firewall Settings.
