Gigabyte Server Management Console - 46 -

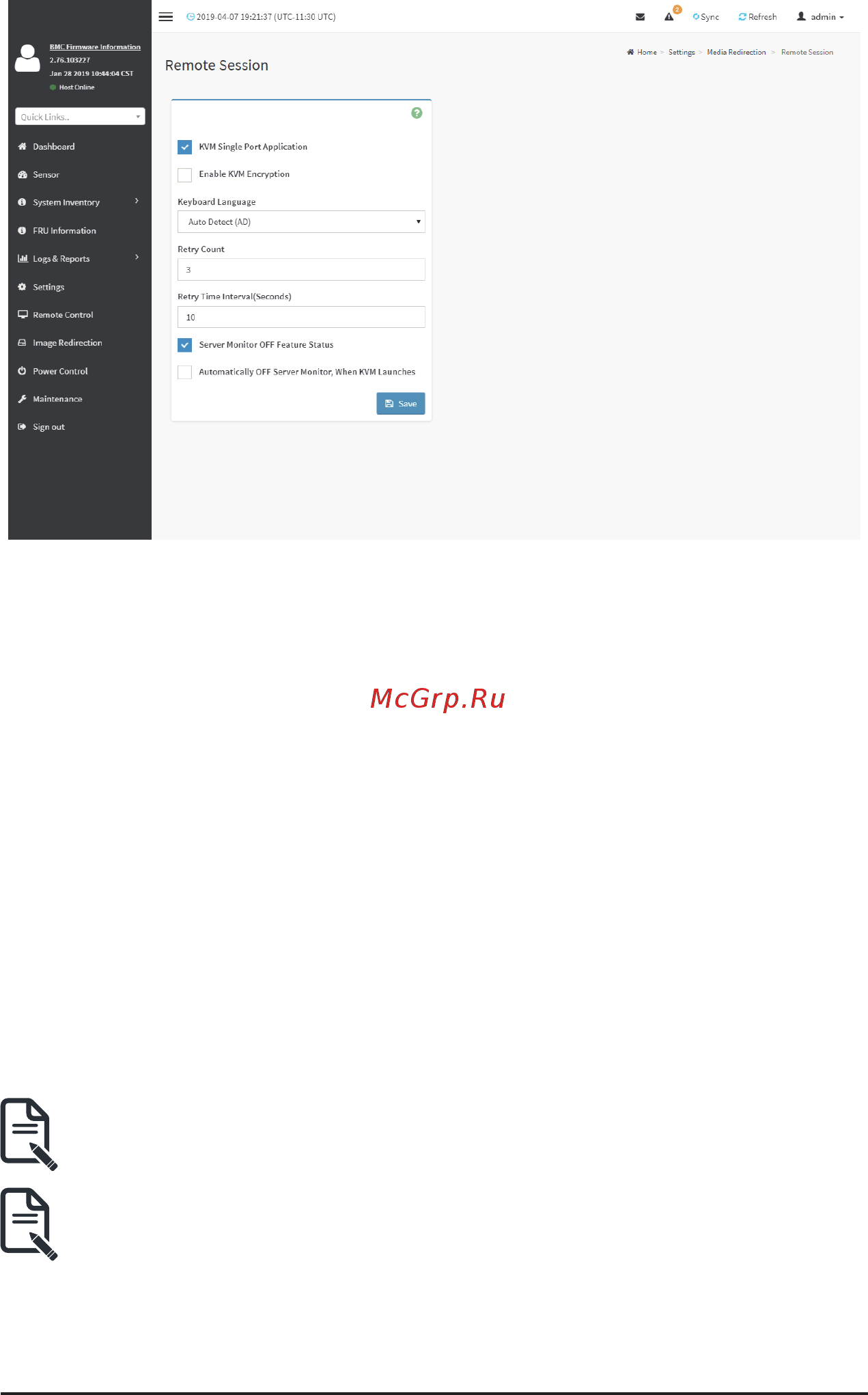

TheeldsofCongureRemoteSessionpageareexplainedbelow.
KVM Single Port Application: To Enable/Disable single port support by runtime. On changing
thisconguration,KVMandVMediaSessionswillberestarted.Ifthissupportisenabled,KVM
session will not use its dedicated port whereas both Web and KVM sessions will be established
only via Web Port. If this support is disabled, KVM and Web sessions will use their own dedicated
ports respectively.
Keyboard Language: This option is used to select the keyboard supported languages.
Retry Count: This option is used to retry the redirection session for certain number of attempts.
Retry Time Interval(Seconds): This option is used to give time interval for each attempts.
Server Monitor OFF Feature Status: To enable/disable Server Monitor OFF. If this option is
enabled, you can Lock or Unlock the Local host monitor from the remote KVM window. If this
option is disabled, you cannot Lock or Unlock the Local host monitor from the remote KVM
window.
Automatically OFF Server Monitor, When KVM Launches: To enable/disable Automatically
OFF Server Monitor, When KVM Launches.
Save: To save the current changes.
Note: It will automatically close the existing remote redirection either KVM or Virtual
media sessions on Single Port enable/Disable.
Note: Installation of Operating System on the servers via BMC CD ISO image over
remote KVM may take 1 to 2 hours.
Procedure
1. Check or uncheck the KVM Single Port Application option to enable Single Port
Application support in BMC.
2. Choose the Keyboard Language from the list of keyboard supported languages.
