- 37 - Gigabyte Server Management Console

Enable KVM Access:ThiseldprovidesaccesstoKVMforRADIUSauthenticatedusers.

Enable VMedia Access:ThiseldprovidesaccesstoVMediaforRADIUSauthenticatedusers.

Save:Tosavetheconguredsettings.

Procedure

1. Enable the RADIUS Authentication check box to authenticate the RADIUS.

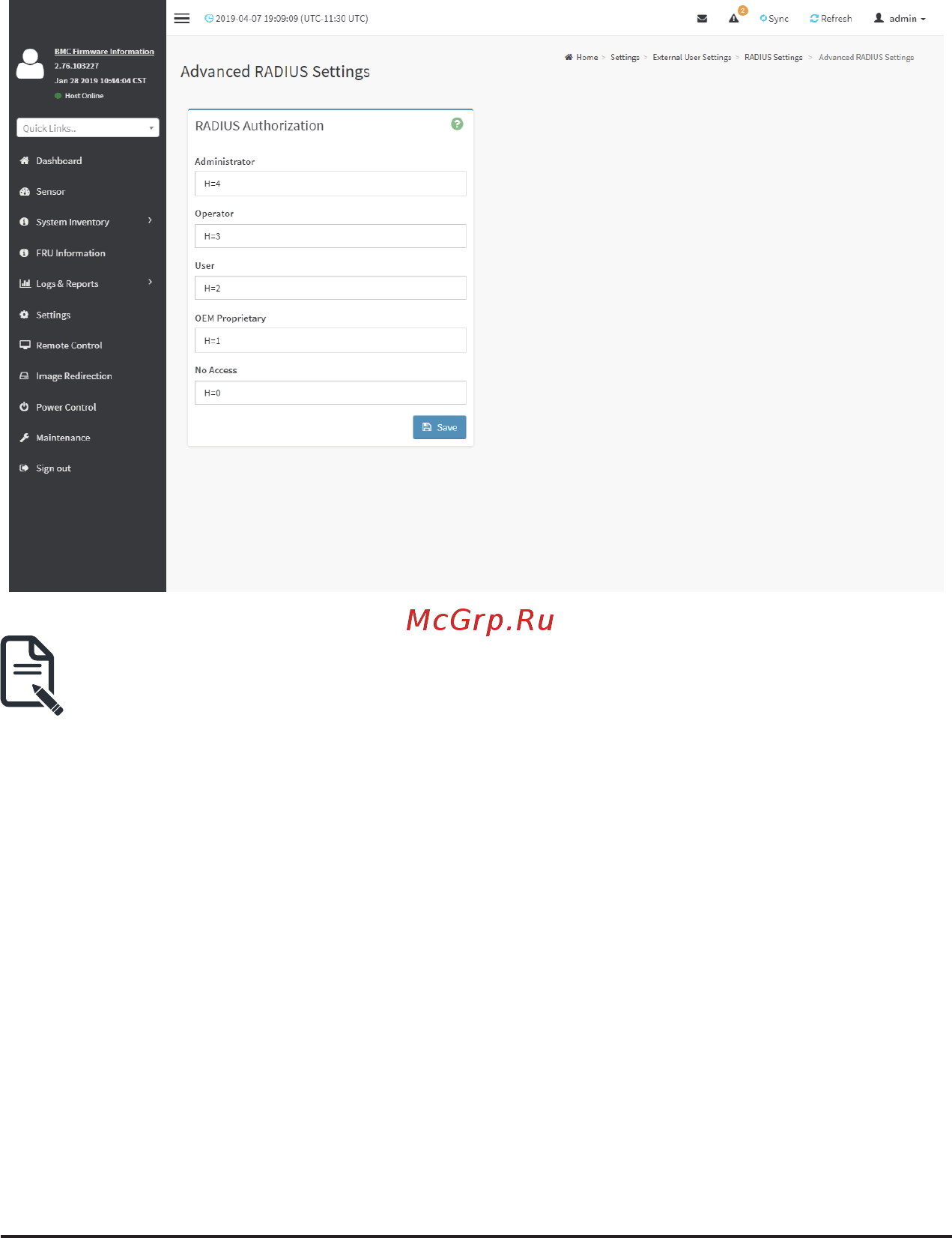

2. Click Advanced RADIUS Settings. This opens the Radius Authorization window as

shown below.

Note:ForAuthorizationPurpose,conguretheRadiususerwithVendorSpecic

Attribute in Server side.

Example: 1

testadmin Auth-Type: =PAP, Cleartext-Password:=”admin”

  Auth-Type:=PAP,Vendor-Specic=”H=4”

Example: 2

test operator Auth-Type: = PAP, Cleartext-Password:= “operator”

  Auth-Type:=PAP,Vendor-Specic=”H=3”

  IfyouchangetheVendor-Specicvalueinserverthenyoushouldchangethesame

values in this page.

3. Click Save to save the changes made.

2-6-3 KVM Mouse Settings

In BMC Web GUI, Redirection Console handles mouse emulation from local window to remote

screenineitherofthreemethods.UserhastobeanAdministratortocongurethisoption.To

view the Supported Operating Systems for Mouse Mode, click Mouse Mode.

To open KVM Mouse setting page, click Settings >KVM Mouse Setting from the menu bar. A

sample screenshot of KVM Mouse Settings page is shown below.
