2-10-4 HPM Firmware Update

ThispageallowsyoutoupdatetheHPM(HardwarePlatformManagement)rmware.

To configure, choose ‘HPM Firmware Image Location’ under Maintenance. To open HPM

Firmware Update page, click Maintenance > HPM Firmware Update from the menu bar.

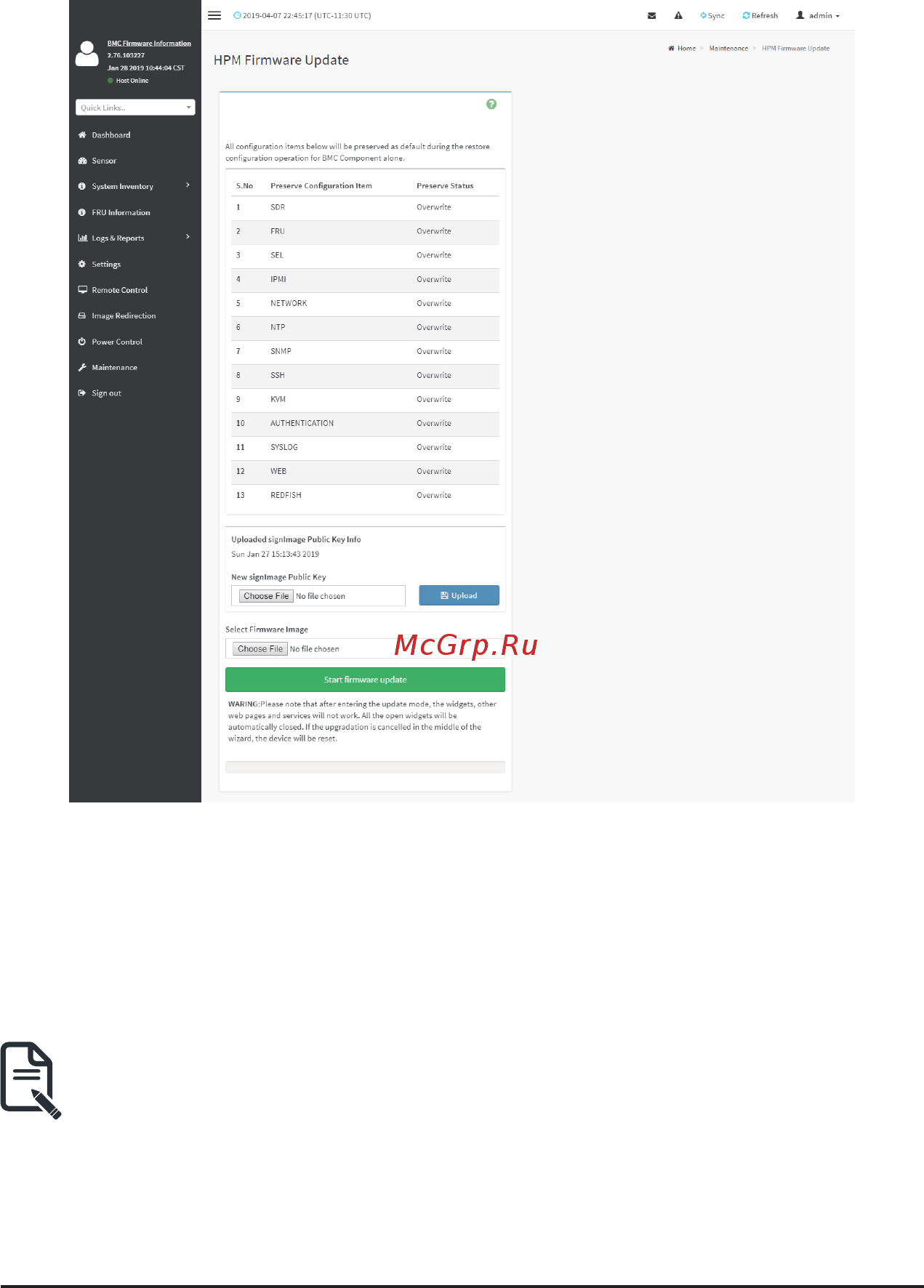

A sample screenshot of HPM Firmware Update page is shown below.

ThevariouseldsofHPMFirmwareUpdateareasfollows:

• New signimage Public Key: To select the signimage Public Key to be uploaded.

• Select Firmware Image: To select the Firmware image to be uploaded.

• Start Firmware Update: To start the Firmware Update.

Thiswizard takesyou throughthe processofAMIbased rmwareupgradation.Theprotocol

informationtobeusedforrmwareimagetransferduringthisupdateisasfollows:

Note: Allcongurationitemswillbepreserved/overwriteasdefaultduringtherestore

  congurationoperation.

Procedure

1. Click Preserve all Congurationtopreserveallconguration.

2. Click Browse toselect rmwareimage.TheFirmwareupdate undergoesthe following

steps:
