Gigabyte MD50-LS0 (rev. 1.1) [20/124] 6 internal connectors

Hardware Installation - 20 -

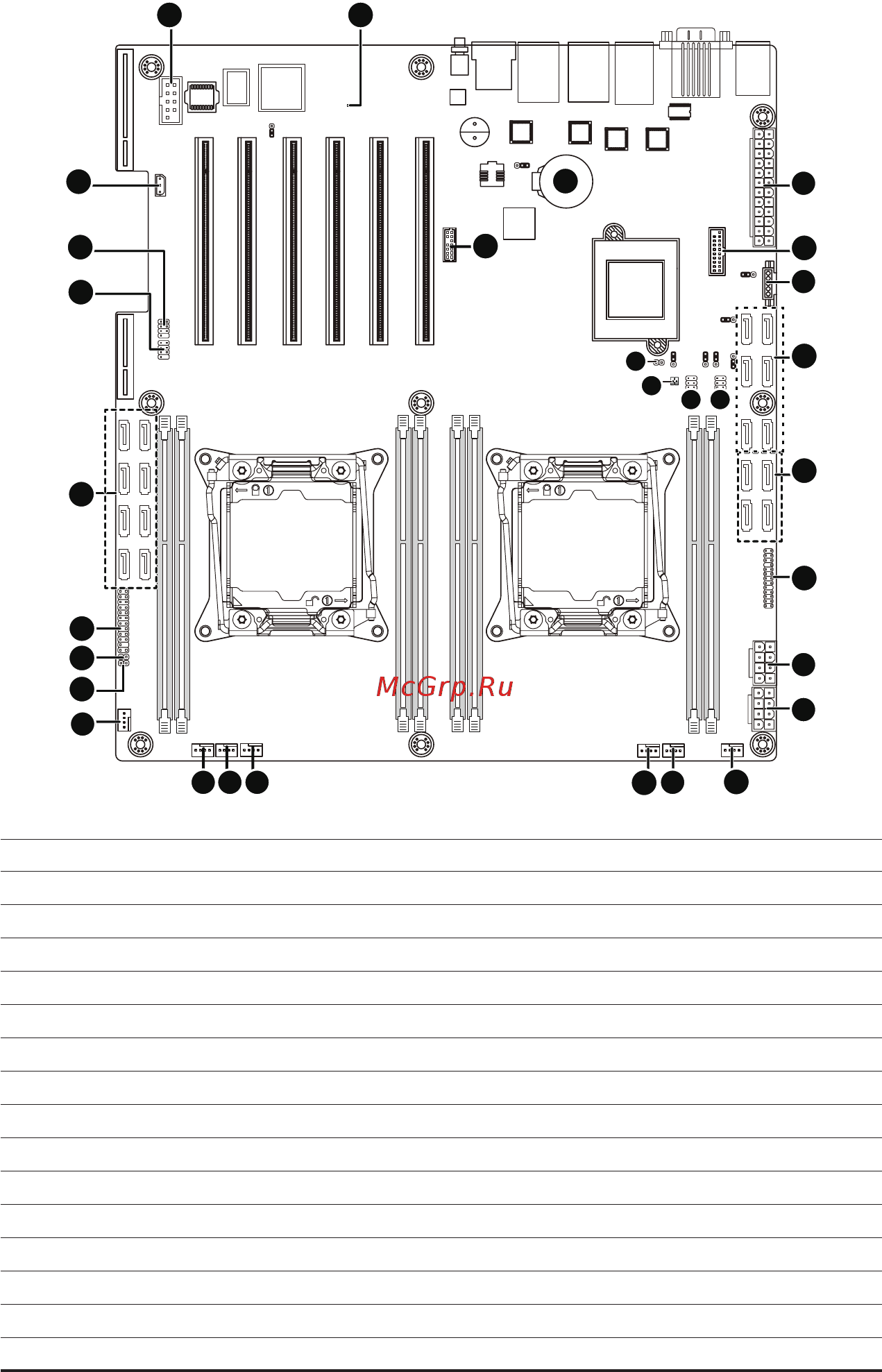

1-6 Internal Connectors

1) ATX1

2) P12V_AUX1

3) P12V_AUX2

4) PMBUS

5) CPU0_FAN (for primary CPU)

6) CPU1_FAN (for seconary CPU)

7) SYS_FAN1 (System Fan)

8) SYS_FAN2 (System Fan)

9) SYS_FAN3 (System Fan)

10) SYS_FAN4 (System Fan)

11) SYS_FAN5 (System Fan)

12) SATA0/1/2/3/4/5

13) SSATA0/SSATA1/SSATA2/SSATA3

14) SAS0/1/2/3/4/5/6/7

15) SSATA_SGP

16) SATA_SGP

17) SAS_SGP1

18) SAS_SGP2

19) F_USB3

20) TPM

21) COM2

22) IPMB

23) FP_1

24) BP_1

25) LED_BMC

26) LAN4_ACT

27) LAN3_ACT

28) SW_RAID

29) CASE_OPEN

30) BAT

5 6

8 9

267

1516
