Gigabyte MD50-LS0 (rev. 1.1) [83/124] 3 6 1 ioat configuration

BIOS Setup - 83 -

2-3-6-1 IOAT Conguration

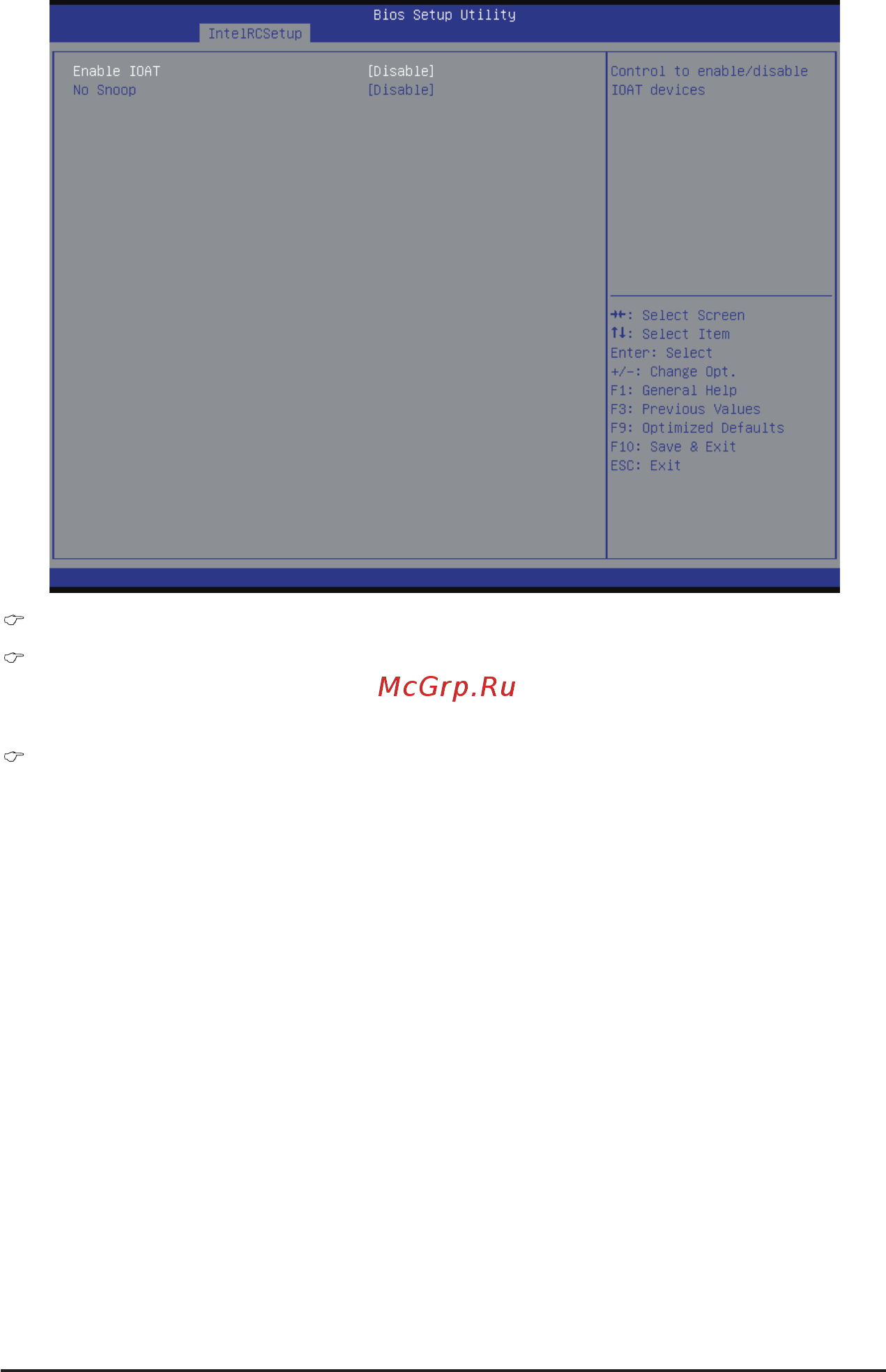

IOAT Conguration

Enable IOAT

Control to enable/disable IOAT (Intel I/O Acceleration Technology) device.

Options available: Enabled/Disabled. Default setting is Disabled.

No Snoop

Enable/Disable PCI Express Device No Snoop option.

Options available: Enabled/Disabled. Default setting is Disabled.
