Gigabyte MD50-LS0 (rev. 1.1) [72/124] 3 2 3 cpu t state control

- 72 - BIOS Setup

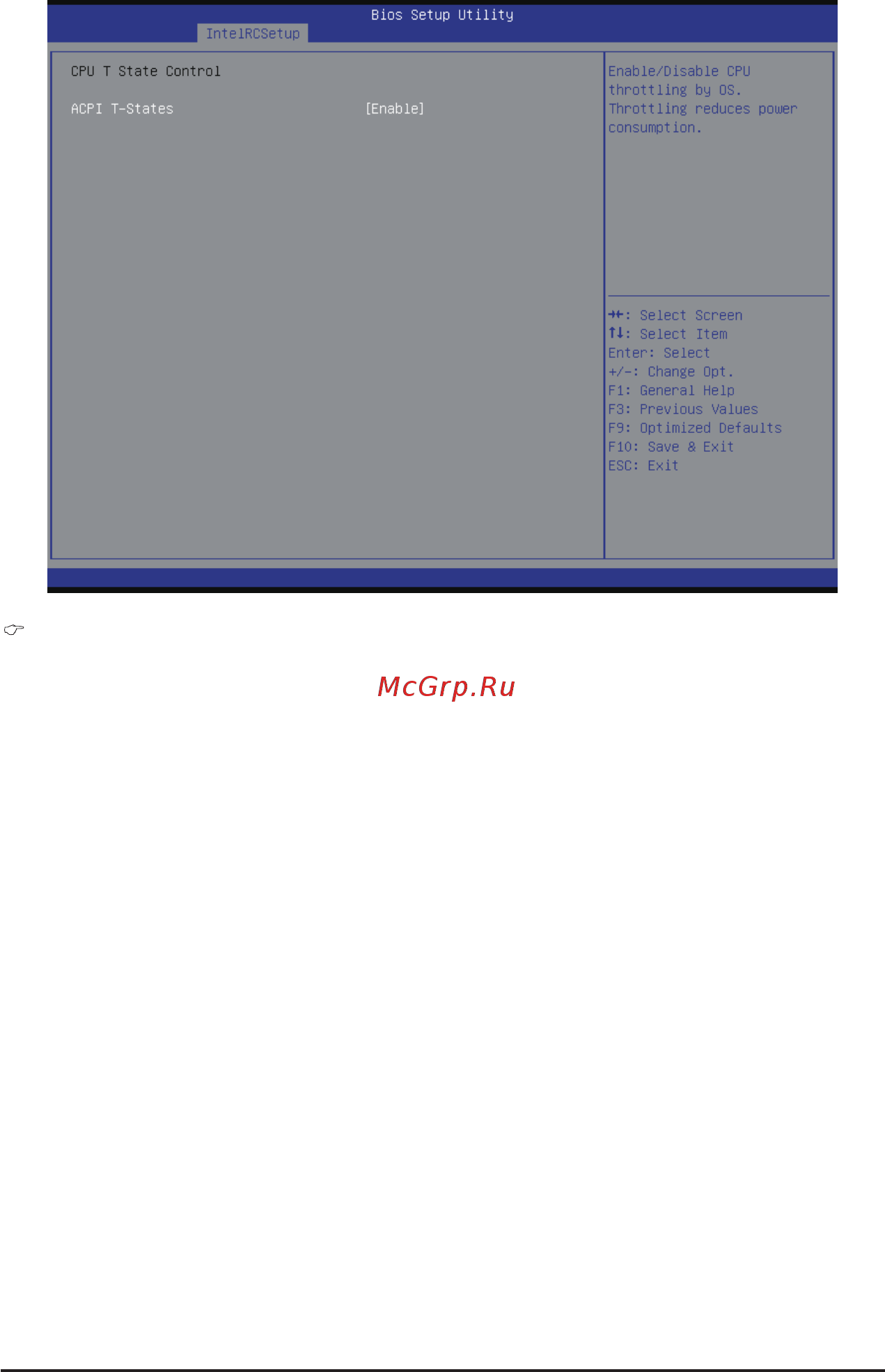

2-3-2-3 CPU T State Control

ACPI T-States

Enable/Disable CPU throttling by OS. Thorttling reduces power comsumption.

Options available: Enabled/Disabled. Default setting is Enabled.
