Gigabyte MD50-LS0 (rev. 1.1) [75/124] Link frequency select

BIOS Setup - 75 -

QPI General Conguration

 Press[Enter]forcongurationofadvanceditems.

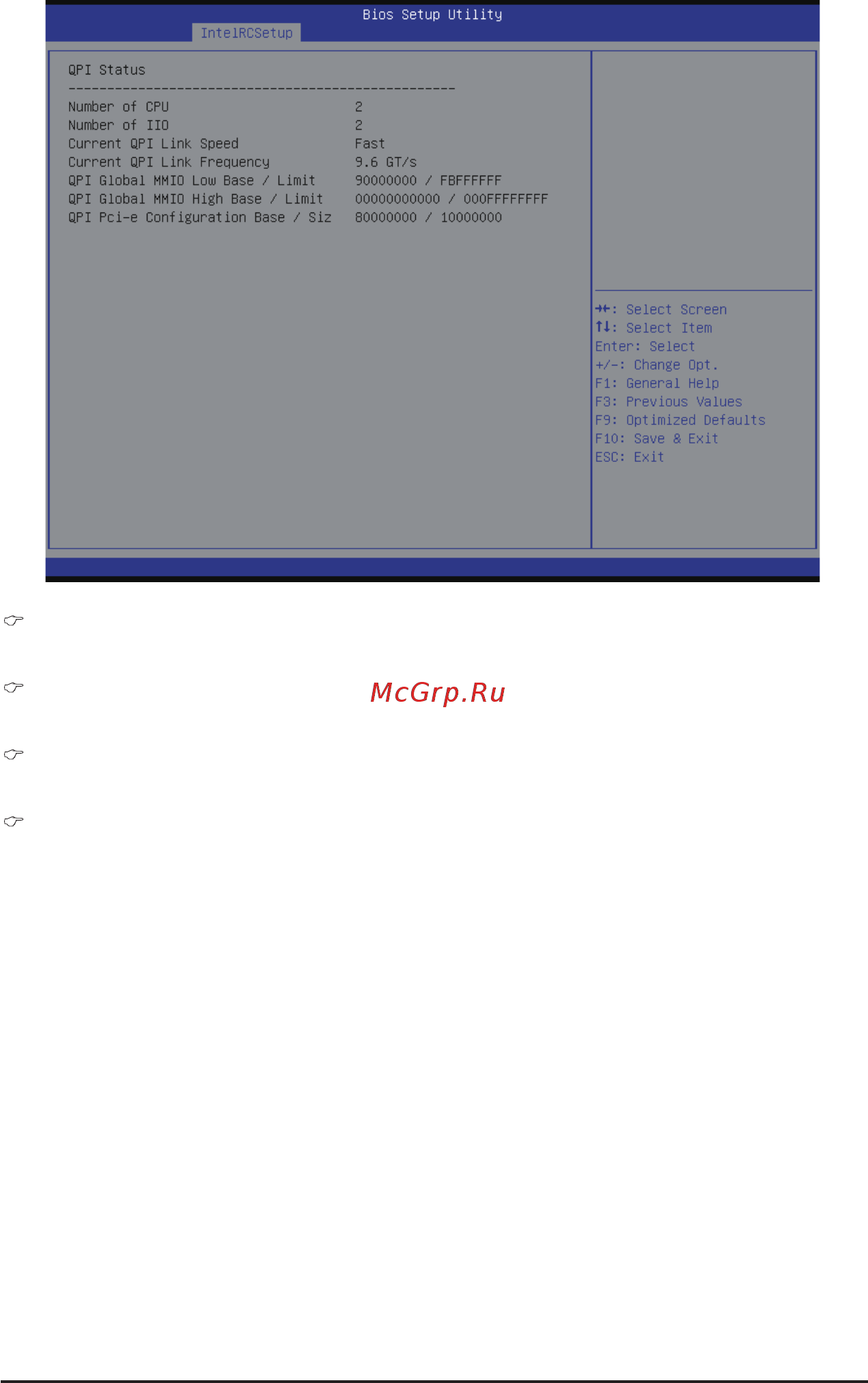

QPI Status

Press [Enter] to view QPI status.

Link Speed Mode

Options available: Slow/Fast. Default setting is Fast.

Link Frequency Select

Options available: 6.4GB/s/8.0GB/s/9.6GB/s/Auto/Auto Limited. Default setting is Auto.
