Gigabyte R161-340 (rev. 100/200) [19/107] 6 power supply unit led

System Appearance - 19 -

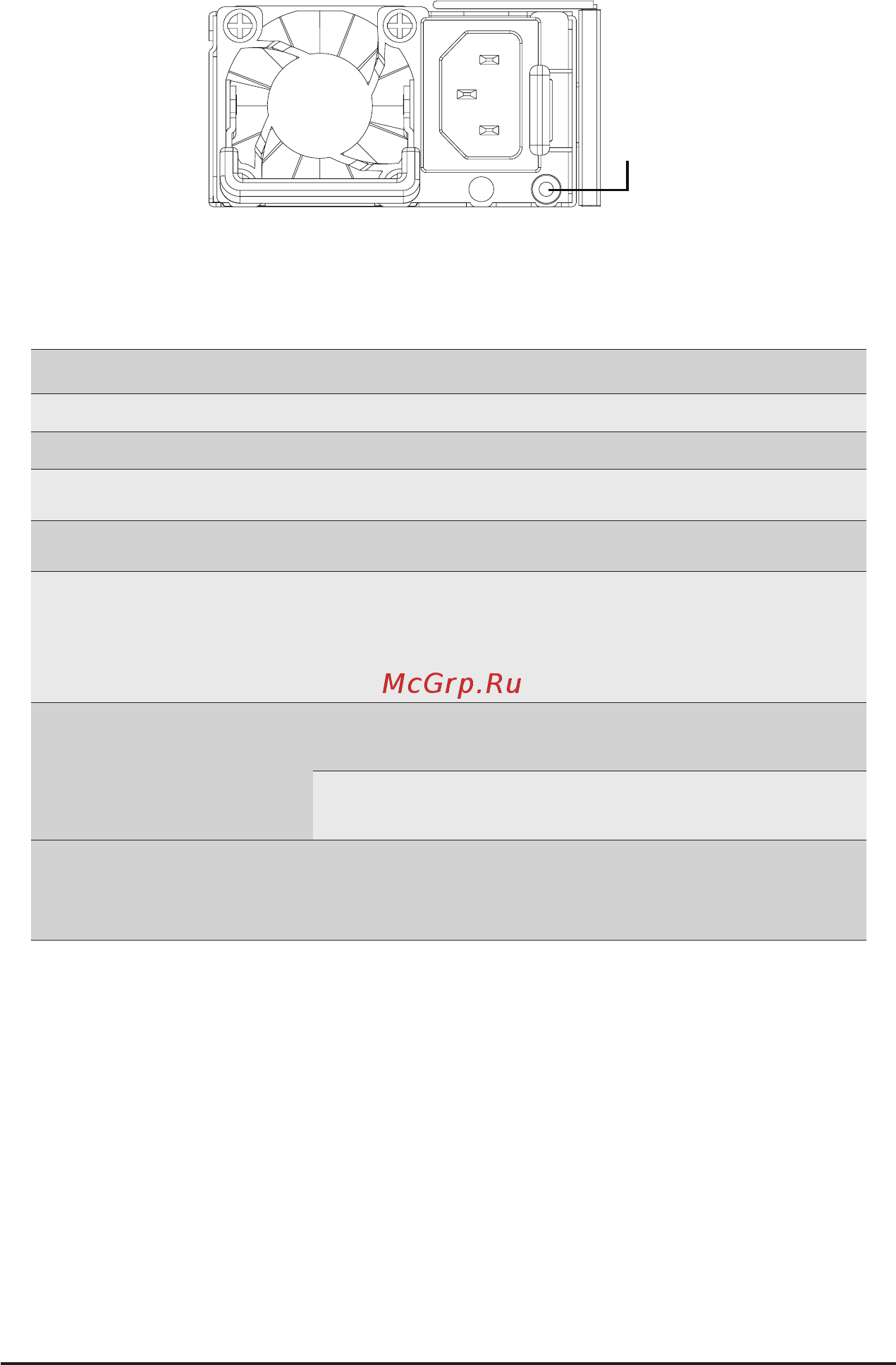

2-6 Power Supply Unit LED

PSU LED

State Description

Off No AC power to all power supplies

GREEN Output ON and OK

1Hz Blink GREEN AC present/ only standby on/ Cold redundant mode

2Hz Blink GREEN Power supply F.W updateing mode

Green BLINKING

0.25 Sec./On

0.25 Sec./Off

2Hz

PSU Sleep Mode (cold Redundant/Ofine mode)

Amber

AC cord unplugged or AC power lost; with a second

power supply in parallel still with AC input power

Power supply critical event causing shut down:

failure, OCP, OVP, Fan Fail, UVP

1Hz Blink AMBER

Power supply warning events where the

power supply continues to operate:

high temp, high power, high current, slow fan
