Gigabyte R161-340 (rev. 100/200) [23/107] 2 removing and installing the fan duct

- 23 - System Hardware Installation

3-2 Removing and Installing the Fan Duct

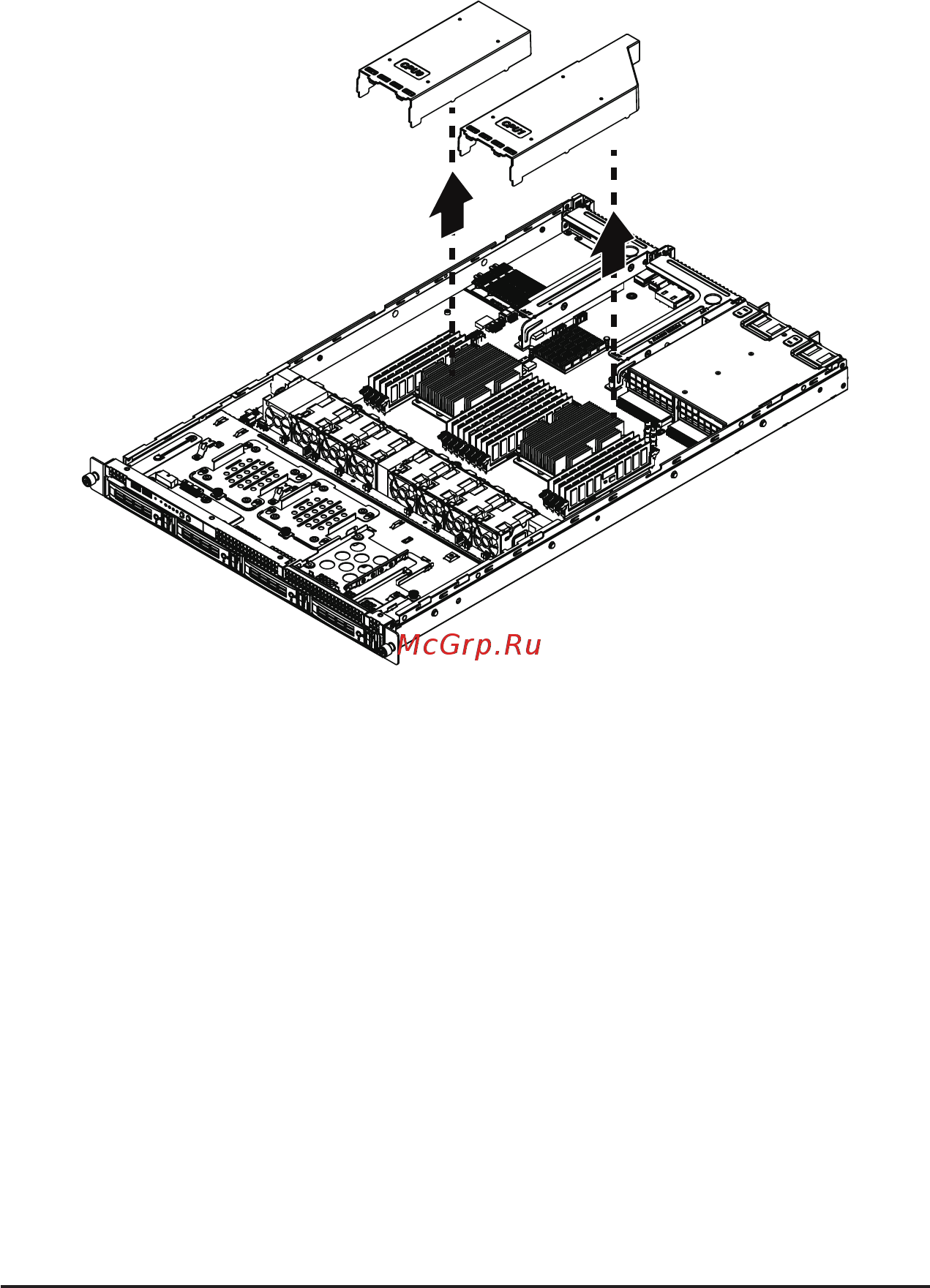

Follow these instructions to remove the fan duct:

1. Lift up to remove the two fan ducts

2. To install the fan duct, align the fan duct with the guiding groove. Push down the fan duct into

chassis until its rmly seats
