Инструкция Страница: 22

Gigabyte R161-340 (rev. 100/200) [22/107] 1 removing and installing the chassis cover

System Hardware Installation - 22 -

3-1 Removing and Installing the Chassis Cover

Before you remove or install the system cover

• Make sure the system is not turned on or connected to AC power.

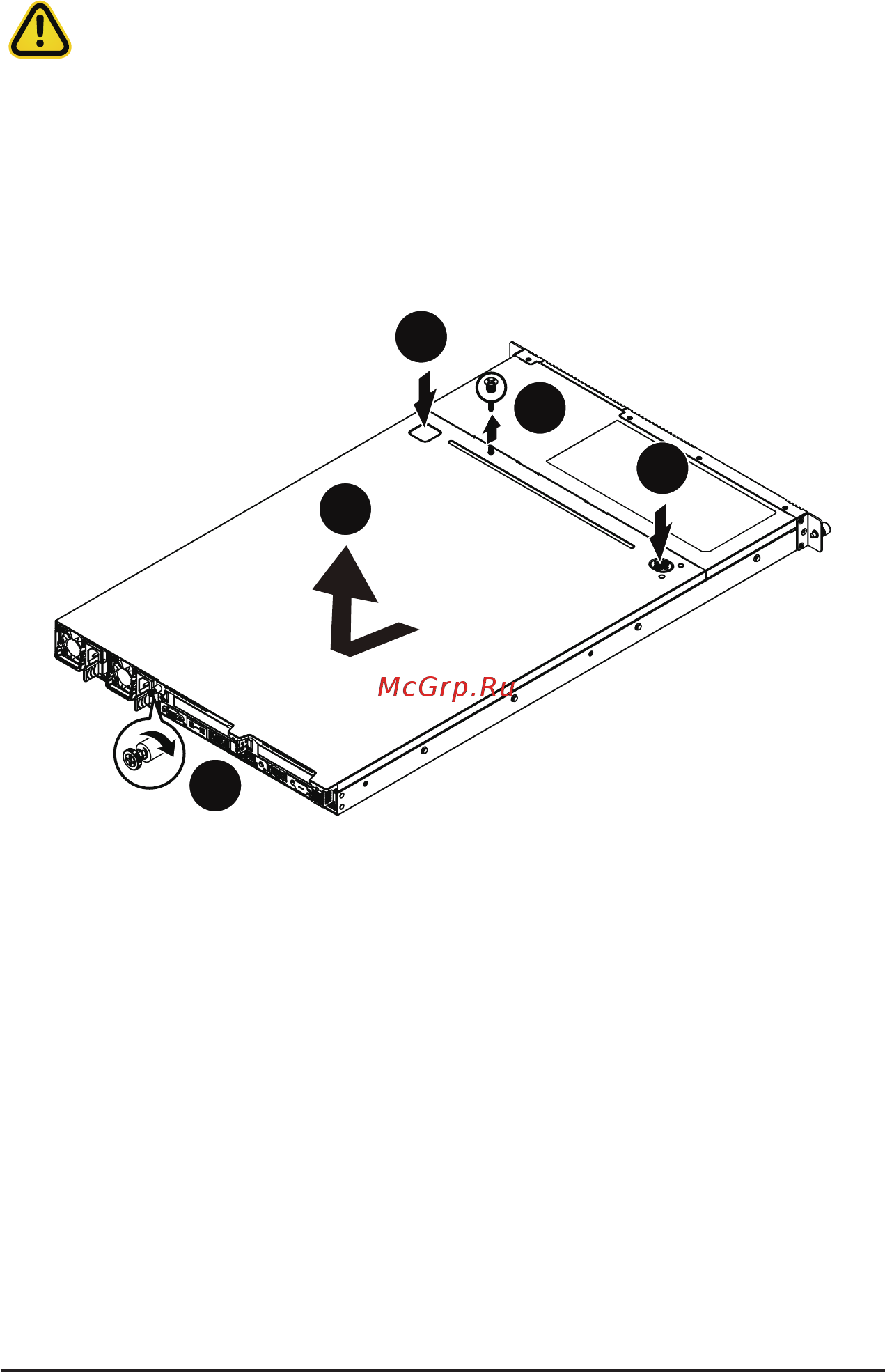

Follow these instructions to remove the chassis covers:

1. Loosen and remove the two thumbscrews securing the back cover.

2. Push down the indentation located at the side of the back chassis

3. Slide the cover horizontally to the back and remove the cover in the direction of the arrow.

4. To reinstall the chassis cover follow steps 1-3 in reverse order.
