English
10

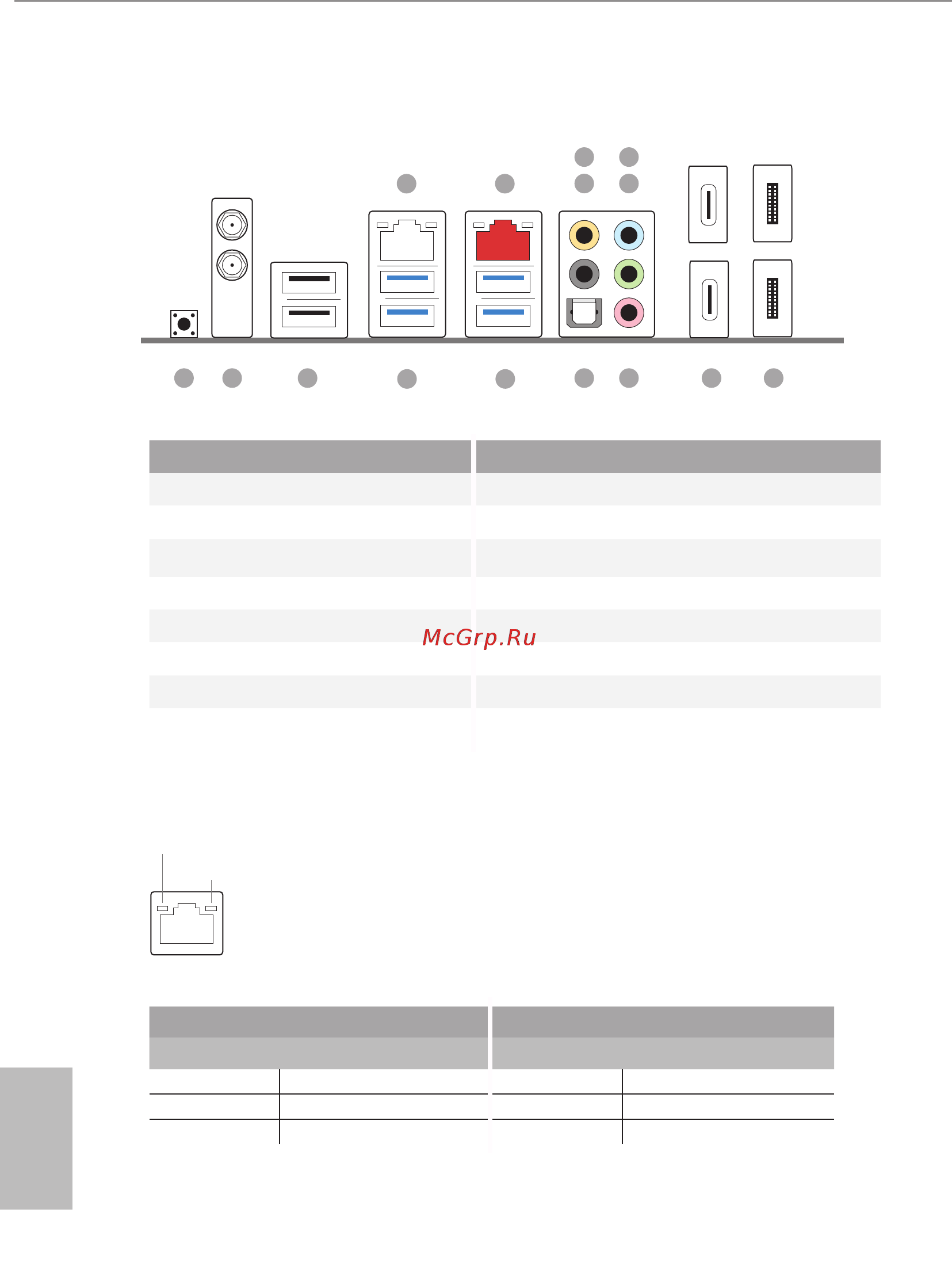

1.4 I/O Panel
No. Description No. Description
1 LAN RJ-45 Port (Intel® I219V)* 8 USB 3.2 Gen2 underbolt
TM
3 Type-C Ports
2 10G LAN RJ-45 Port 9 Microphone (Pink)
(AQUANTIA® AQC107)** 10 Optical SPDIF Out Port
3 Central / Bass (Orange) 11 USB 3.2 Gen1 Ports (USB3_34)*****
4 Rear Speaker (Black) 12 USB 3.2 Gen1 Ports (USB3_1_2)
5 Line In (Light Blue) 13 USB 2.0 Ports (USB2_1_2)
6 Front Speaker (Lime)*** 14 Antenna Ports
7 Mini DisplayPort Input Ports**** 15 Clear CMOS Button
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
9 81015
6
5
4
3
1314
11
2
12
1
7
