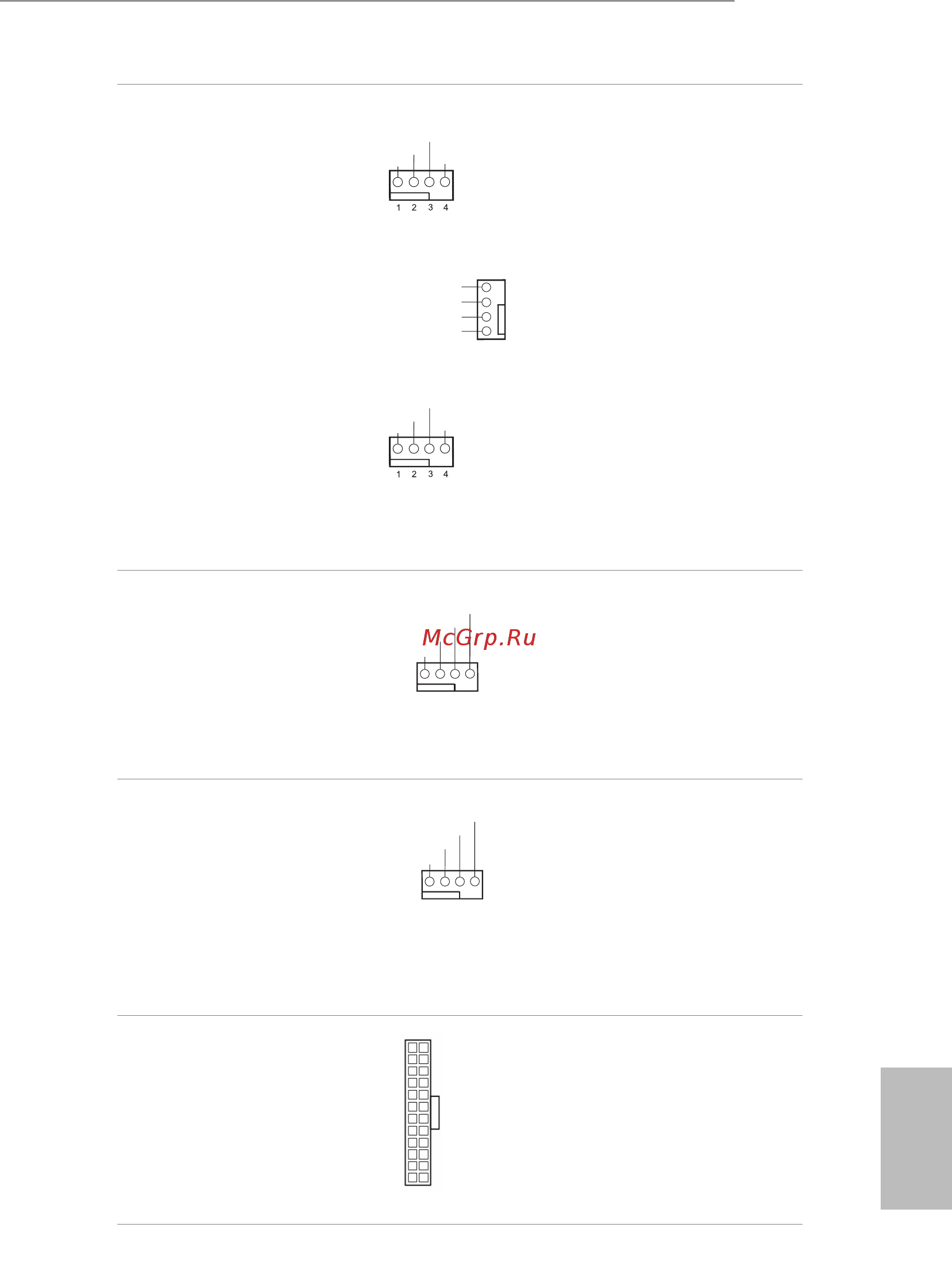

English
31
X299 Creator
GND
FAN_VOLTAGE_CONTROL
FAN_SPEED
FAN_SPEED_CONTR OL
GND
FAN_VOLTAGE_CONTROL
FAN_SPEED
FAN_SPEED_CONTR OL
Chassis Water Pump Fan
Connectors
(4-pin CHA_FAN1/WP)
(see p.8, No. 10)
(4-pin CHA_FAN2/WP)
(see p.8, No. 25)
(4-pin CHA_FAN3/WP)
(see p.8, No. 27)
(4-pin CHA_FAN4/WP)
(see p.8, No. 28)
(4-pin CHA_FAN5/WP)
(see p.8, No. 34)
is motherboard
provides ve 4-Pin water
cooling
chassis
fan
connectors. If you plan to
connect a 3-Pin
chassis
water cooler fan, please
connect it to Pin 1-3.
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.8, No. 13)
is motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
CPU Water Pump Fan
Connector
(4-pin CPU_FAN2/WP)
(see p.8, No. 11)
is motherboard
provides a 4-Pin water
cooling CPU fan
connector. If you plan
to connect a 3-Pin CPU
water cooler fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.8, No. 9)
is motherboard
provides a 24-pin ATX
power connector. To use a
20-pin ATX power supply,
please plug it along Pin 1
and Pin 13.
12
1
24
13
FAN_VOLTAGE
GND
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
FAN_VOLTAGE
GND
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
GND
FAN_V OLTAGE
CHA_FAN_SPEED
F A N_SPEED_CON TRO L
4
3
2
1
