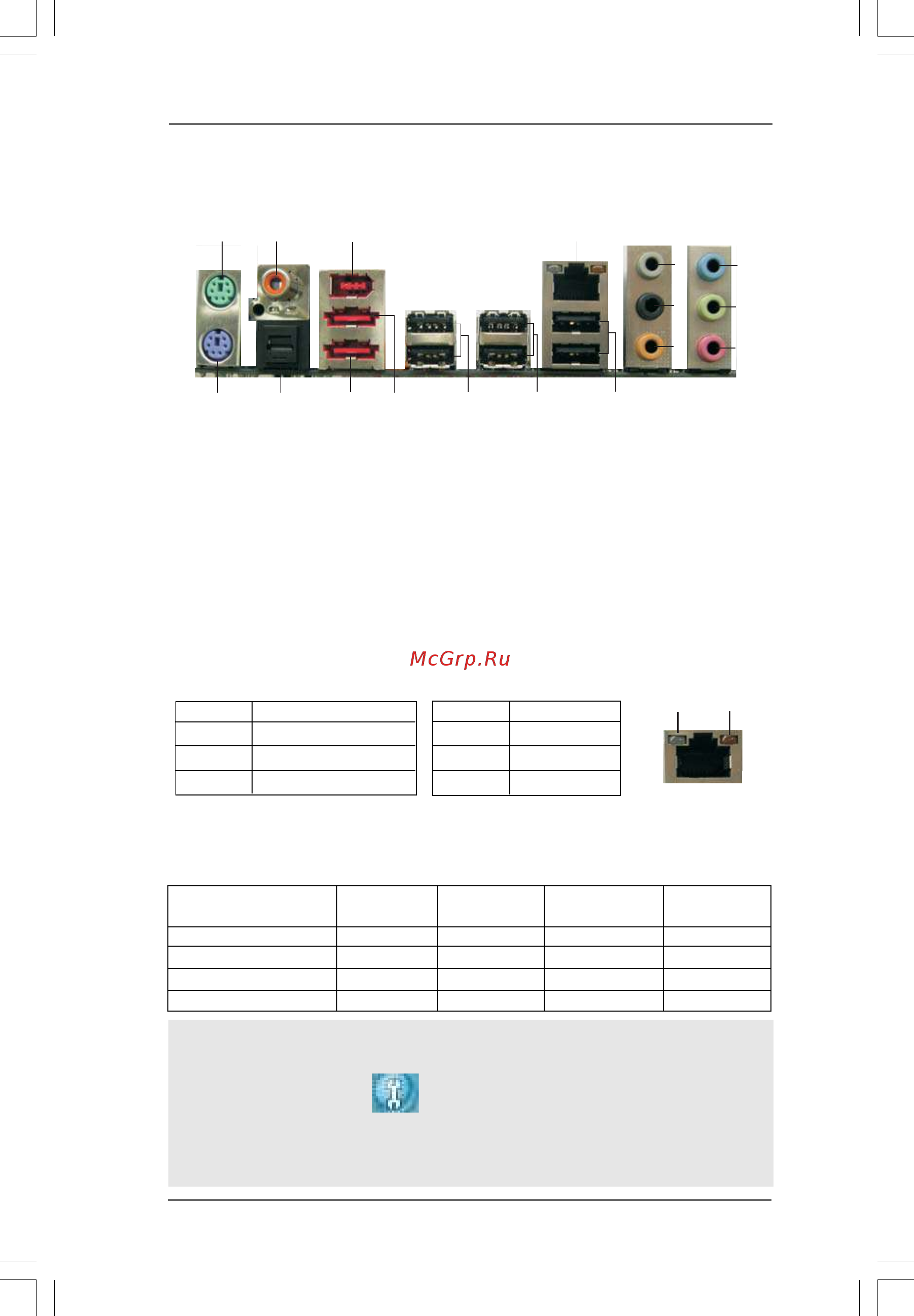

ASRock 1394_SPDIF I/O PlusASRock 1394_SPDIF I/O Plus

ASRock 1394_SPDIF I/O Plus

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output ChannelsFront Speaker Rear Speaker Central / Bass Side Speaker

(No. 9) (No. 6) (No. 7) (No. 5)

2 V -- -- --

4 V -- -- V

6V--VV

8VVVV

LAN Port

ACT/LINK

LED

SPEED

LED

1 PS/2 Mouse Port (Green) 10 Microphone (Pink)

2 Coaxial SPDIF Out Port 11 USB 2.0 Ports (USB45)

3 IEEE 1394 Port 12 USB 2.0 Ports (USB23)

* 4 LAN RJ-45 Port 13 USB 2.0 Ports (USB01)

5 Side Speaker (Gray) 14 eSATAII Port (ESATAII_TOP)

6 Rear Speaker (Black) 15 eSATAII Port (ESATAII_BOTTOM)

7 Central / Bass (Orange) 16 Optical SPDIF Out Port

8 Line In (Light Blue) 17 PS/2 Keyboard Port (Purple)

** 9 Front Speaker (Lime)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

SPEED LED Activity/Link LED

Status Description Status Description

Off 10Mbps connection Off No link

Orange 100Mbps connection Orange Linked

Green 1Gbps connection Blinking Data Activity
