ASRock 4Core1600-DVI Motherboard

EnglishEnglish

English

2.5 D2.5 D

2.5 D

VI GraphicsVI Graphics

VI Graphics

-SI Card Installation Guide-SI Card Installation Guide

-SI Card Installation Guide

With the onboard VGA/D-Sub output and the external installation of our DVI

Graphics-SI card, this motherboard provides users with dual VGA output support:

DVI-D and D-Sub. You can easily enjoy the benefits of dual VGA output support by

connecting the D-Sub monitor to the VGA/D-Sub port on the I/O panel and connecting

the DVI-D monitor to our DVI Graphics-SI card inserted to PCIE1 (PCIE x16 slot) on this

motherboard. Please refer to below procedures for proper installation of DVI Graphics-SI

card.

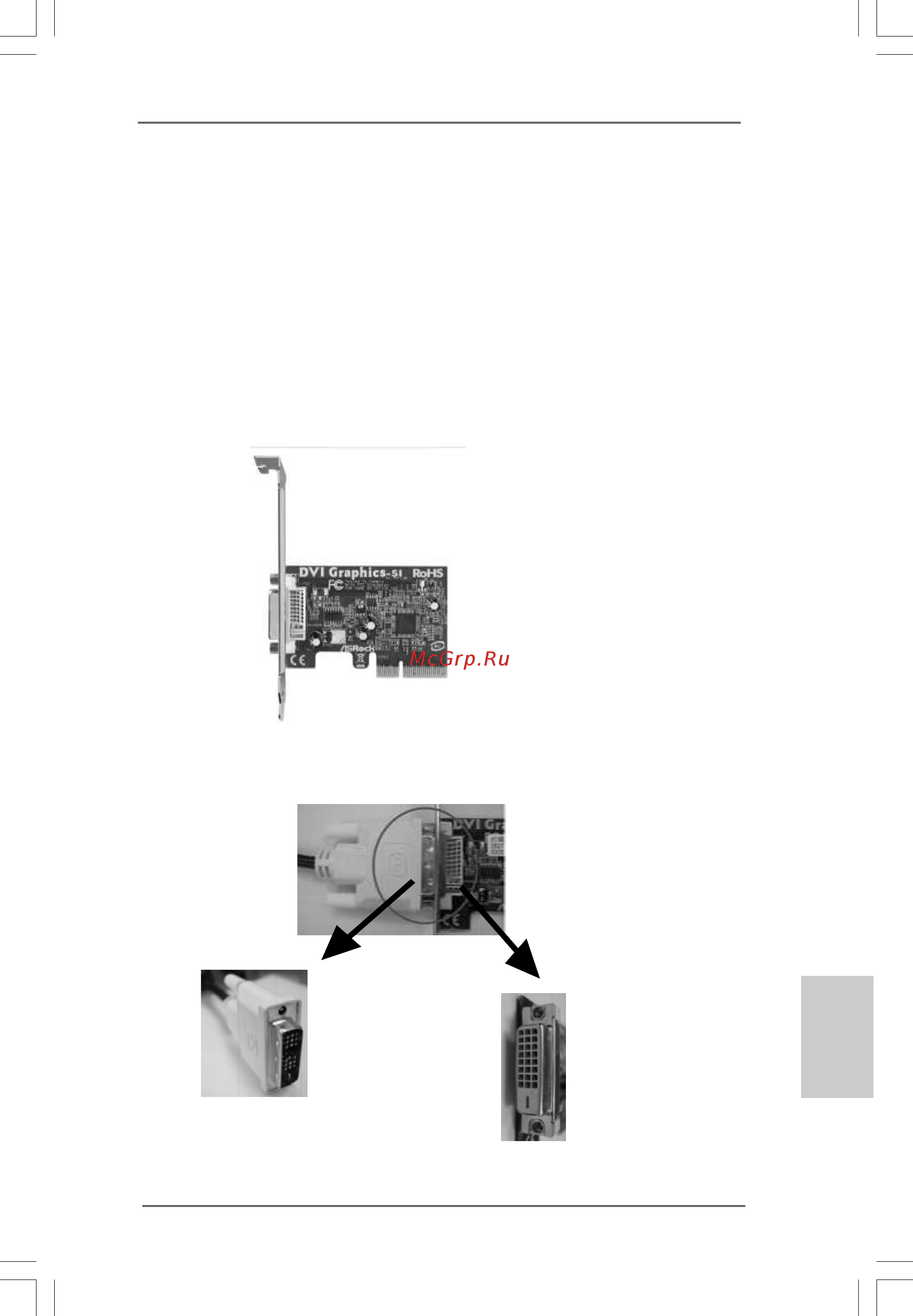

Step 1. Install the DVI Graphics-SI card to PCIE1 (PCIE x16 slot). Please refer to the

expansion card installation procedures on page 14 for details.

DVI Graphics-SI card

Step 2. Connect the DVI-D monitor to the DVI-D output connector of DVI Graphics-SI

card which is inserted to PCIE1 (PCIE x16 slot) on this motherboard.

DVI-D connector of

DVI-D monitor

DVI-D output connector

of DVI Graphics-SI card
