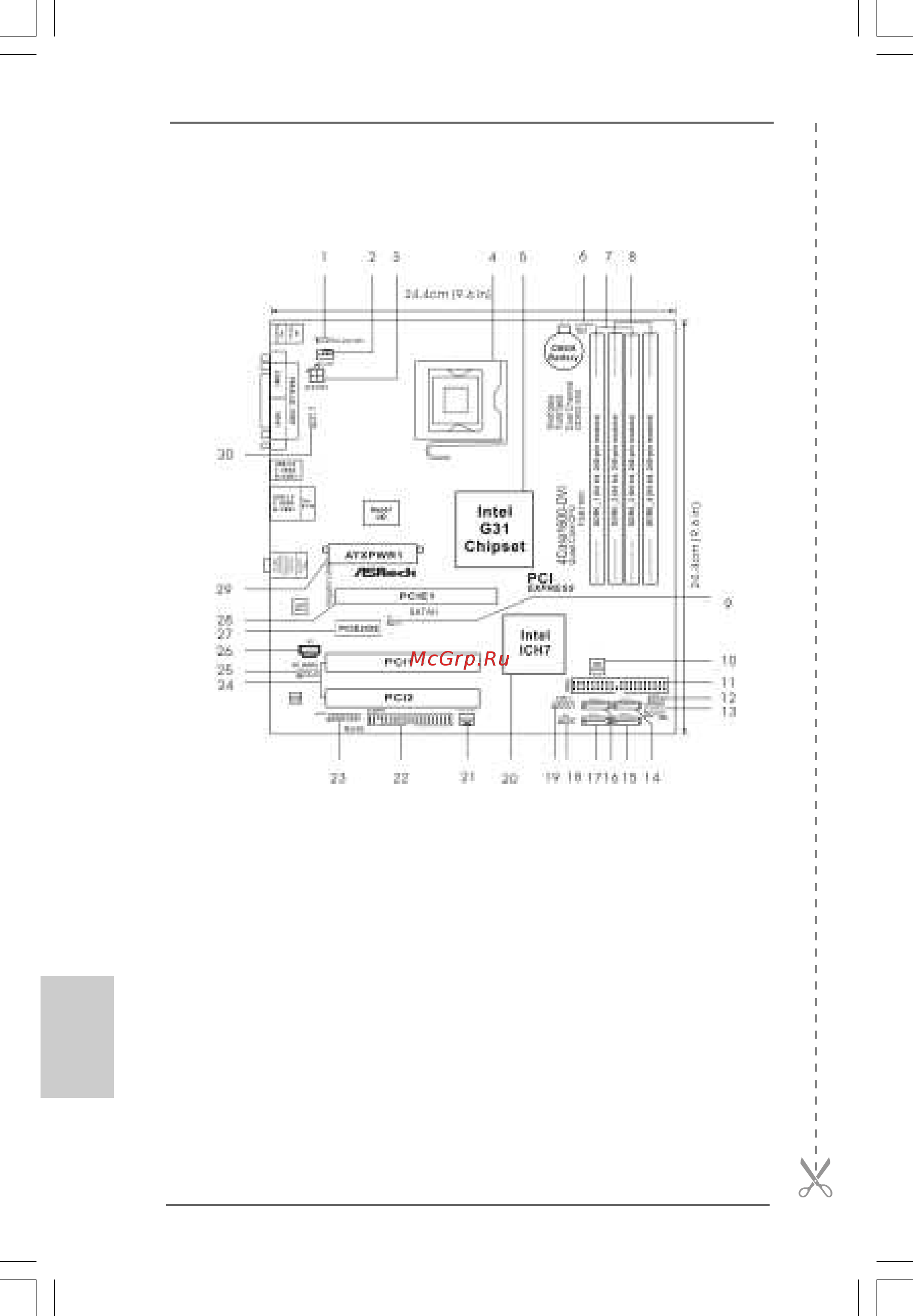

1 PS2_USB_PWR1 Jumper 16 Third SATAII Connector (SATAII_3)

2 CPU Fan Connector (CPU_FAN1) 17 Primary SATAII Connector (SATAII_1)

3 ATX 12V Connector (ATX12V1) 18 USB 2.0 Header (USB6, Blue)

4 775-Pin CPU Socket 19 USB 2.0 Header (USB4_5, Blue)

5 North Bridge Controller 20 South Bridge Controller

6 Clear CMOS Jumper (CLRCMOS1) 21 Chassis Fan Connector (CHA_FAN1)

7 2 x 240-pin DDR2 DIMM Slots 22 Floppy Connector (FLOPPY1)

(Dual Channel A: DDRII_1, DDRII_3; Yellow) 23 WiFi/E Header (WIFI/E)

8 2 x 240-pin DDR2 DIMM Slots 24 PCI Slots (PCI1 - 2)

(Dual Channel B: DDRII_2, DDRII_4; Orange) 25 Front Panel Audio Header (HD_AUDIO1)

9 FD Jumper 26 Internal Audio Connector: CD1 (Black)

10 Flash Memory 27 PCI Express x1 Slot (PCIE2/DE)

11 IDE1 Connector (IDE1, Blue) 28 PCI Express x16 Slot (PCIE1)

12 Chassis Speaker Header (SPEAKER 1) 29 ATX Power Connector (ATXPWR1)

13 System Panel Header (PANEL1) 30 DeskExpress Hot Plug Detection Header

14 Fourth SATAII Connector (SATAII_4) (IR1)

15 Secondary SATAII Connector (SATAII_2)
