AB350M-HDV R3.0 / A320M-HDV R3.0 / A320M-DVS R3.0
11
English

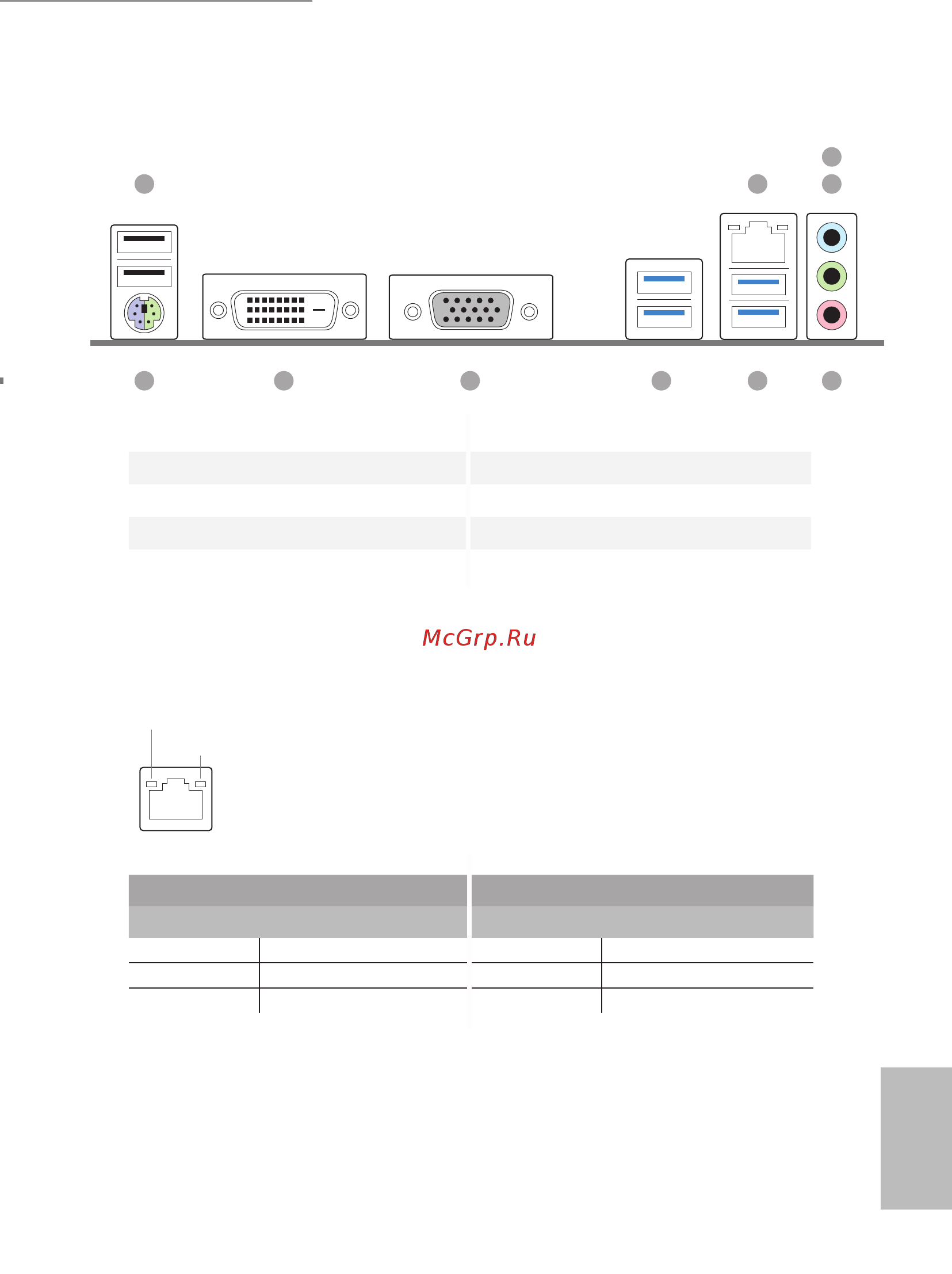

A320M-DVS R3.0:
1 USB 2.0 Ports (USB12) 6 USB 3.1 Gen1 Ports (USB3_34)
2 LAN RJ-45 Port* 7 USB 3.1 Gen1 Ports (USB3_12)
3 Line In (Light Blue)** 8 D-Sub Port
4 Front Speaker (Lime)** 9 DVI-D Port
5 Microphone (Pink)** 10 PS/2 Mouse/Keyboard Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 2 4
567810 9
3
