ASRock 4X4-4500U [8/34] Motherboard layout

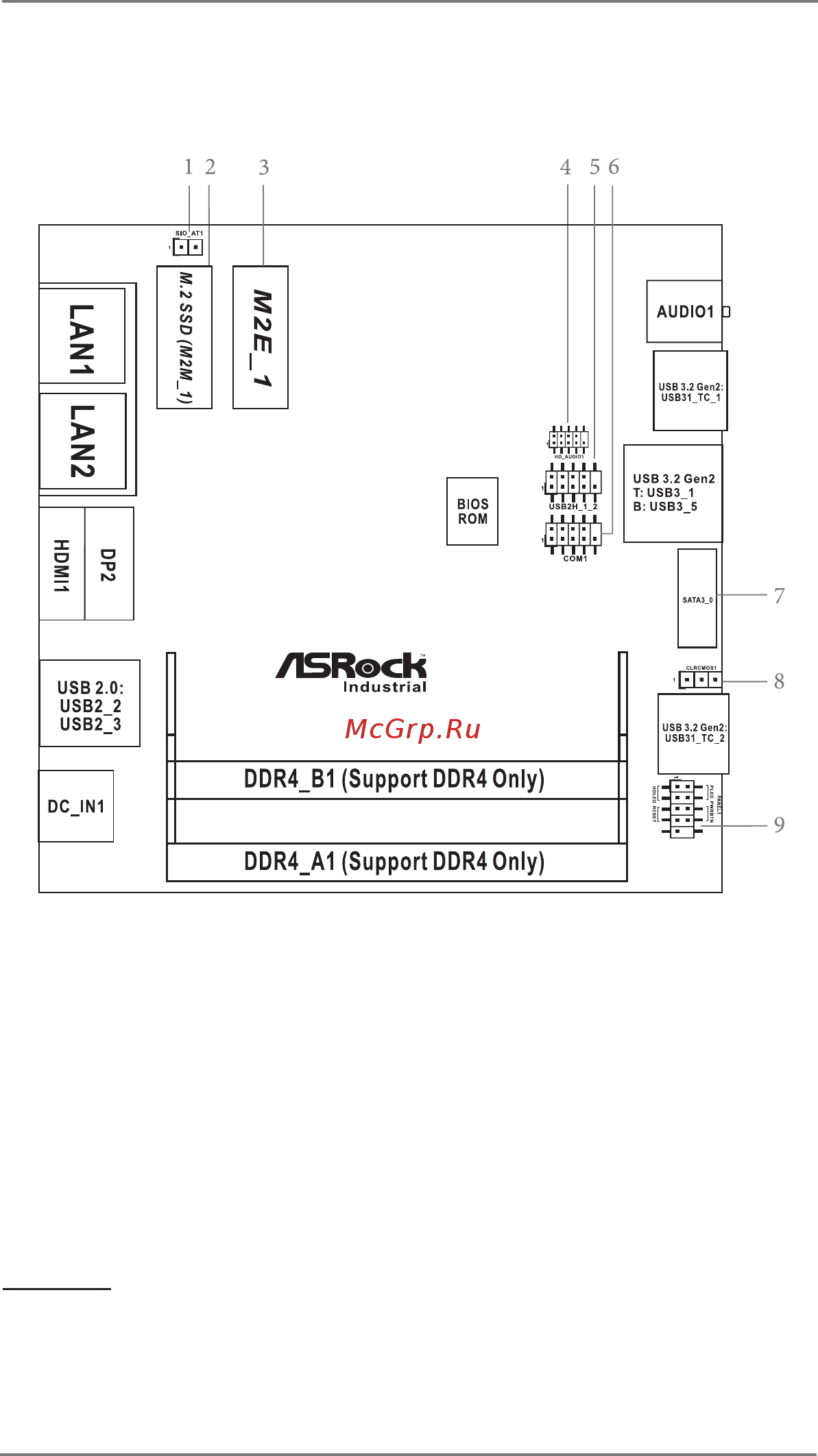

1.3 Motherboard Layout

1 :

SIO_AT1

2 :

M.2 Key-M Socket (M2M_1)

3 :

M.2 Key-E Socket (M2E_1)

4 :

Front Panel Audio Header

5 : USB2.0 Connector (USB2H_1_2)

6 :

COM Port Header (RS232/422/485)

7 : SATA3 Port (SATA3_0)

8 :

Clear CMOS Header (CLRCMOS1)

9 :

System Panel Header (PANEL1)

Back Side :

Power Button (PWR_BTN3)

Fan Connector (FAN1)

Battery Connector (BAT1)

LPC Connector (LPC1)
