11
2.3 Installation of Memory Modules (SO-DIMM)
NUC-6100U / 6300U provides two 204-pin DDR4 (Double Data Rate 4) SO-DIMM
slots.

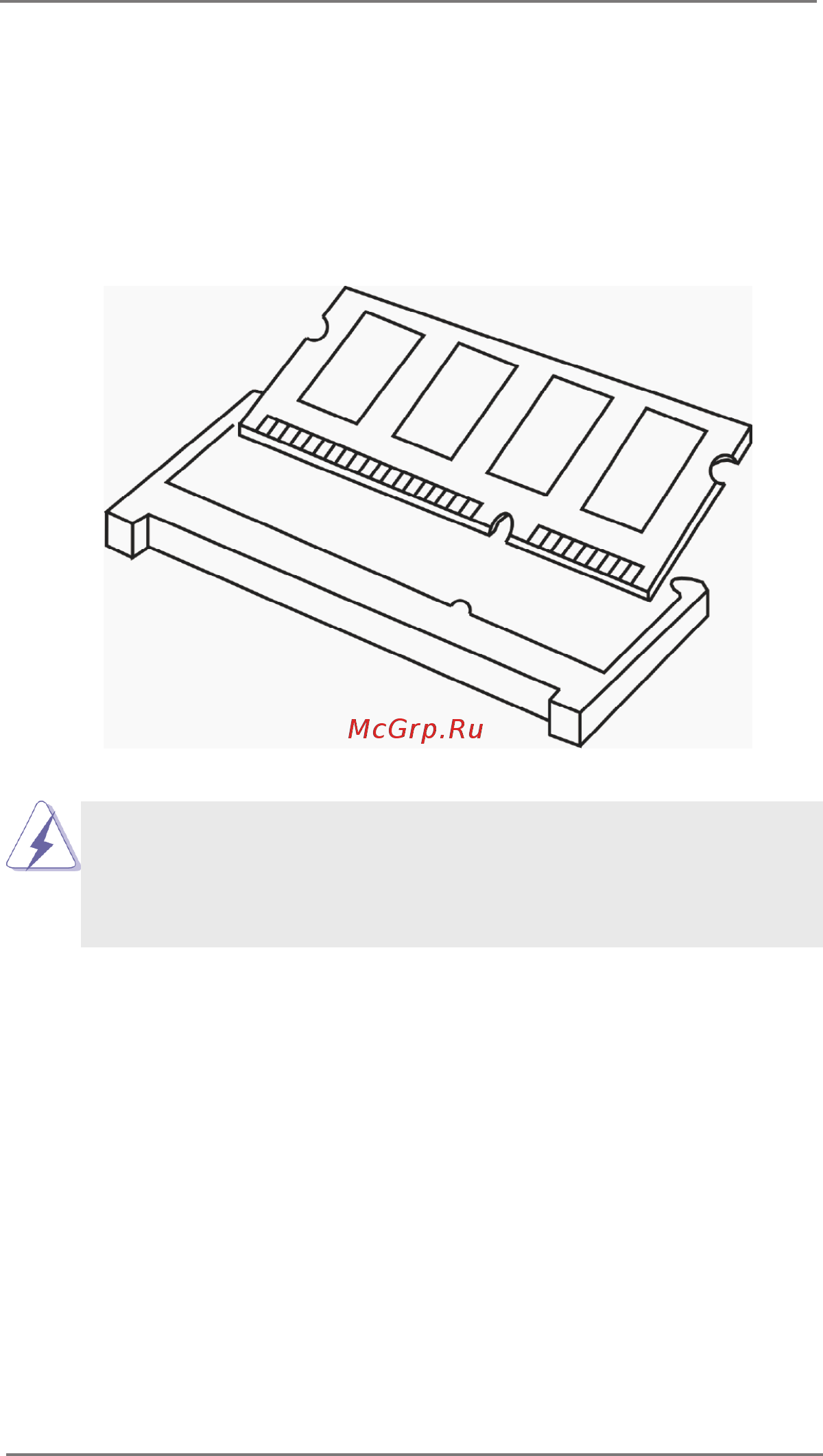

Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
1. The SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
2. Please do not intermix different voltage SO-DIMMs on this motherboard.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.
