ASRock NUC-6300U [8/31] Motherboard layout
![ASRock NUC-6300U [8/31] Motherboard layout](/views2/1693706/page8/bg8.png)
8

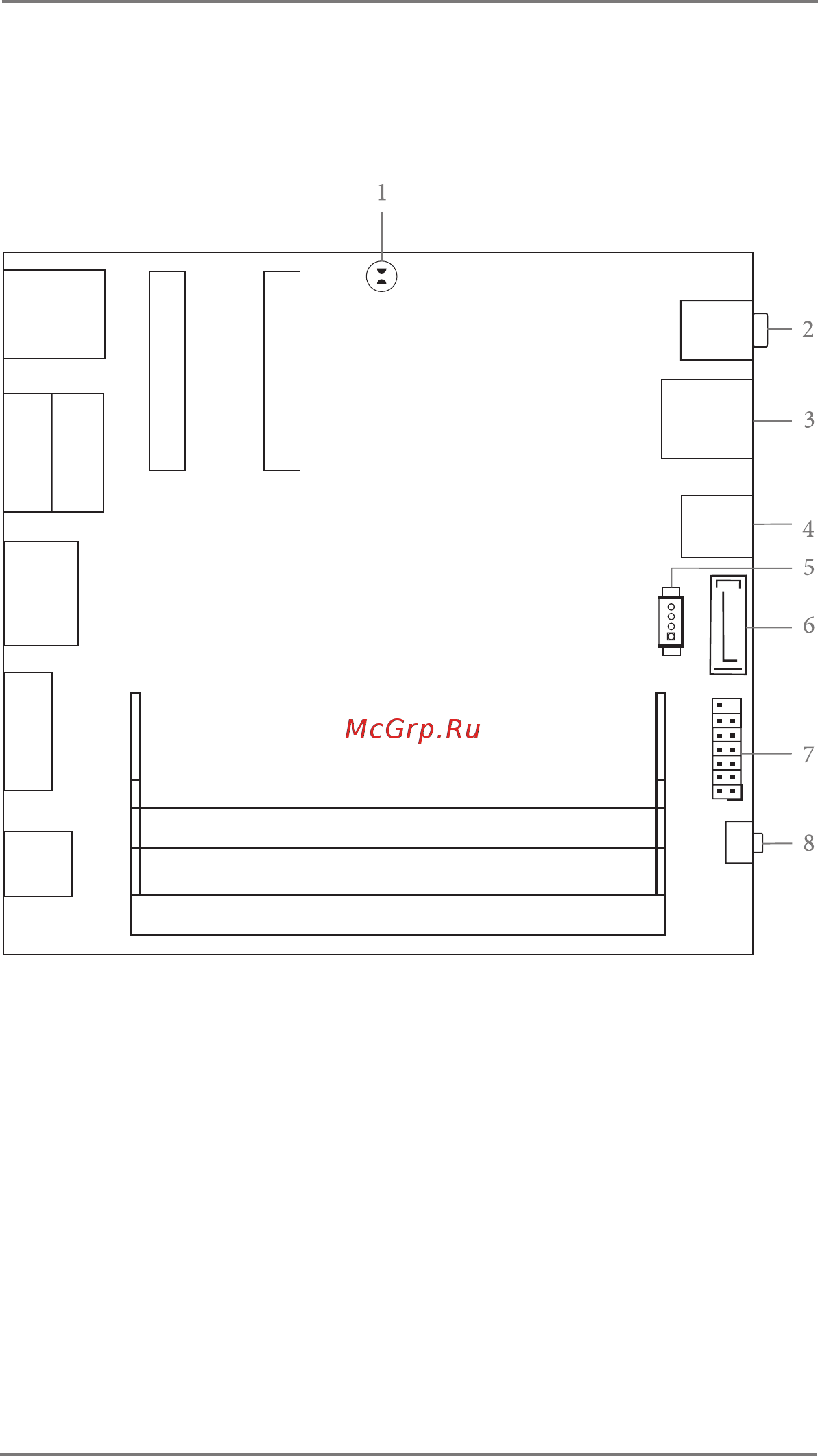

1.3 Motherboard Layout
M2_2
LAN1
AUDIO1
HDMI1
USB3_2
DC_IN1
M.2 SSD (M2_1)
USB 3.0
T: USB4
B: USB3
HDMI_DP_1
HDMI2
USB3_TC_1
SATA3 _1
1
LPC1
IR1
DDR4_B1 (Support DDR4L Only)
DDR4_A1 (Support DDR4L Only)
SATA_ PW R1
1
CLRM OS1
1 : Clear CMOS Pad (CLRMOS1)
2 :
Audio Jack (AUDIO1)
3 : USB3.0 Port (USB3_2)
4 : USB 3.0 Type-C Port (USB3_TC_1)
5 :
SATA Power Output Connector (SATA_PWR1)
6 : SATA3 Connector (SATA3_1)
7 : LPC Debug Header (LPC1)
8 : Infrared LED (IR1)
