2U4FH-12L
14 15
English

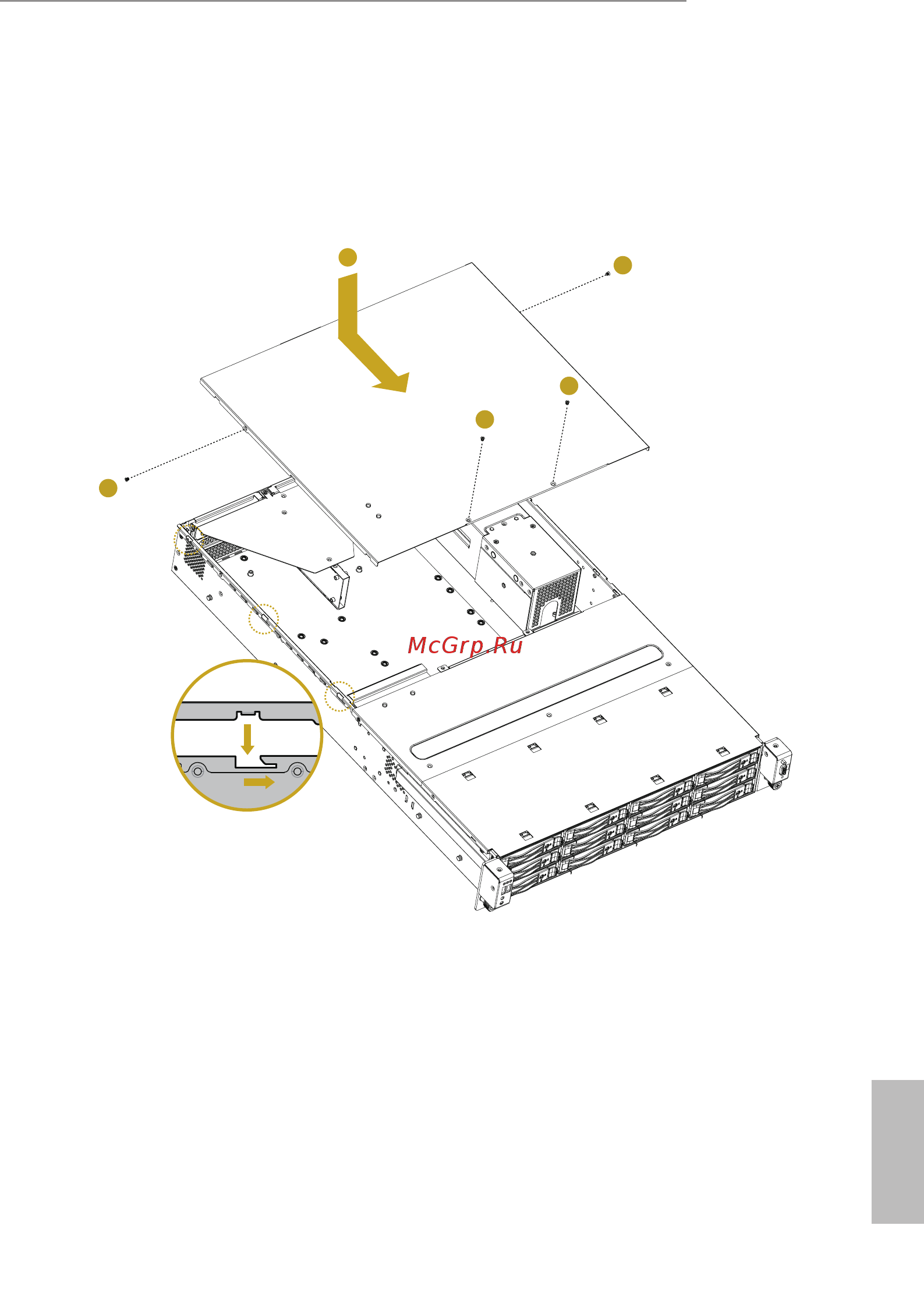

3. Lower the top rear cover on the chassis, making sure the side latches align with the
cutouts. Slide the top rear cover toward the front.
4. Secure the both covers with the screws.
3
4
4
4
4
