2U4FH-12L
24 25
English
3.6 System Fan

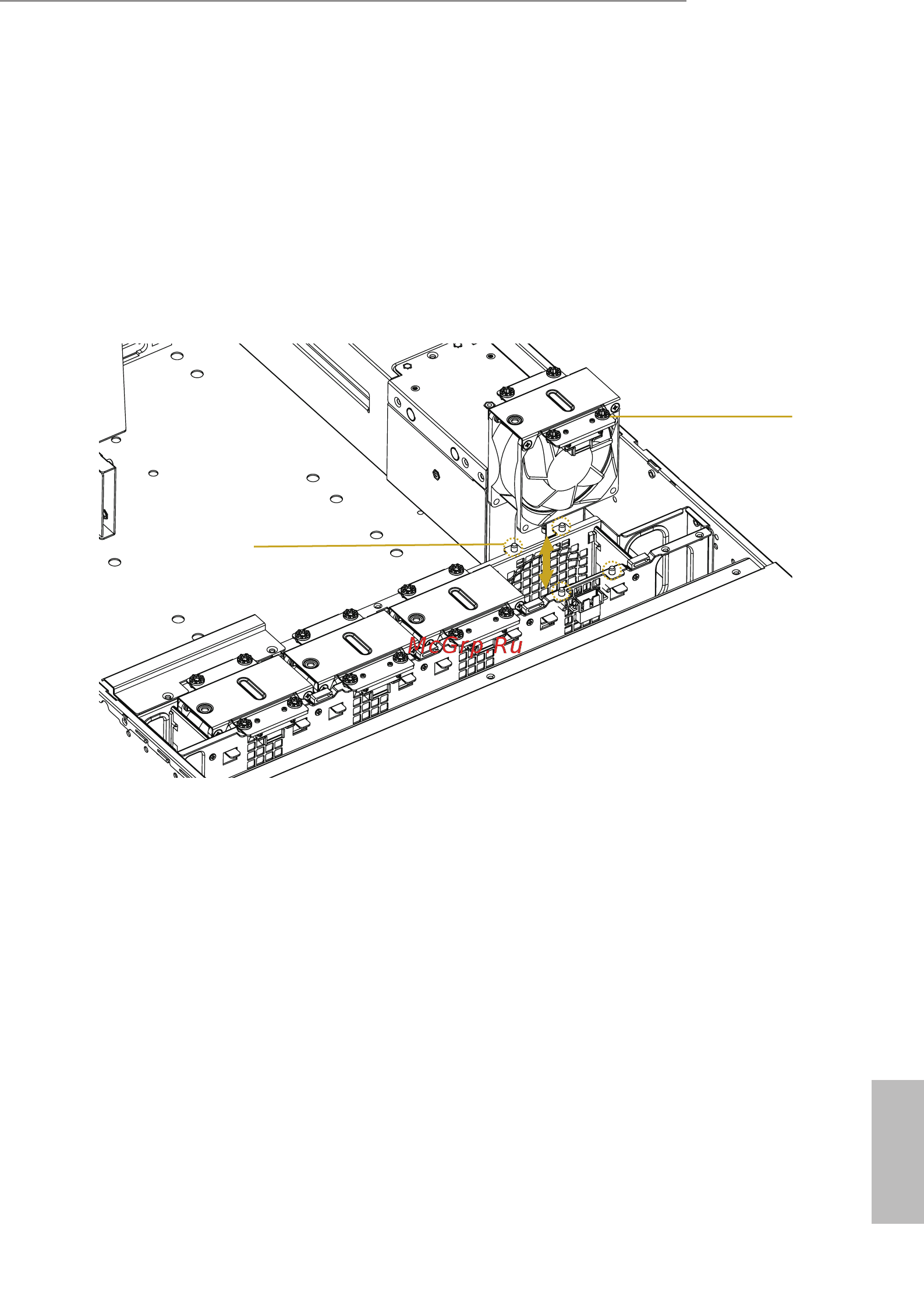

Replacing the System Fan
1. Unplug the fan connecter and remove the failed fan.
2. Align the fan mounts on the fan bar with the mounting holes on the replacement fan.
3. Gently place the fan on the fan bar. Make sure the fan is well seated.
4. Connect the end of the fan cable to the fan connector.
Fan Mount
Mounting Hole
