ASRock 2U4FH-12L [36/40] Chapter 4 backplane specifications
![ASRock 2U4FH-12L [36/40] Chapter 4 backplane specifications](/views2/1694128/page36/bg24.png)
30 31
English

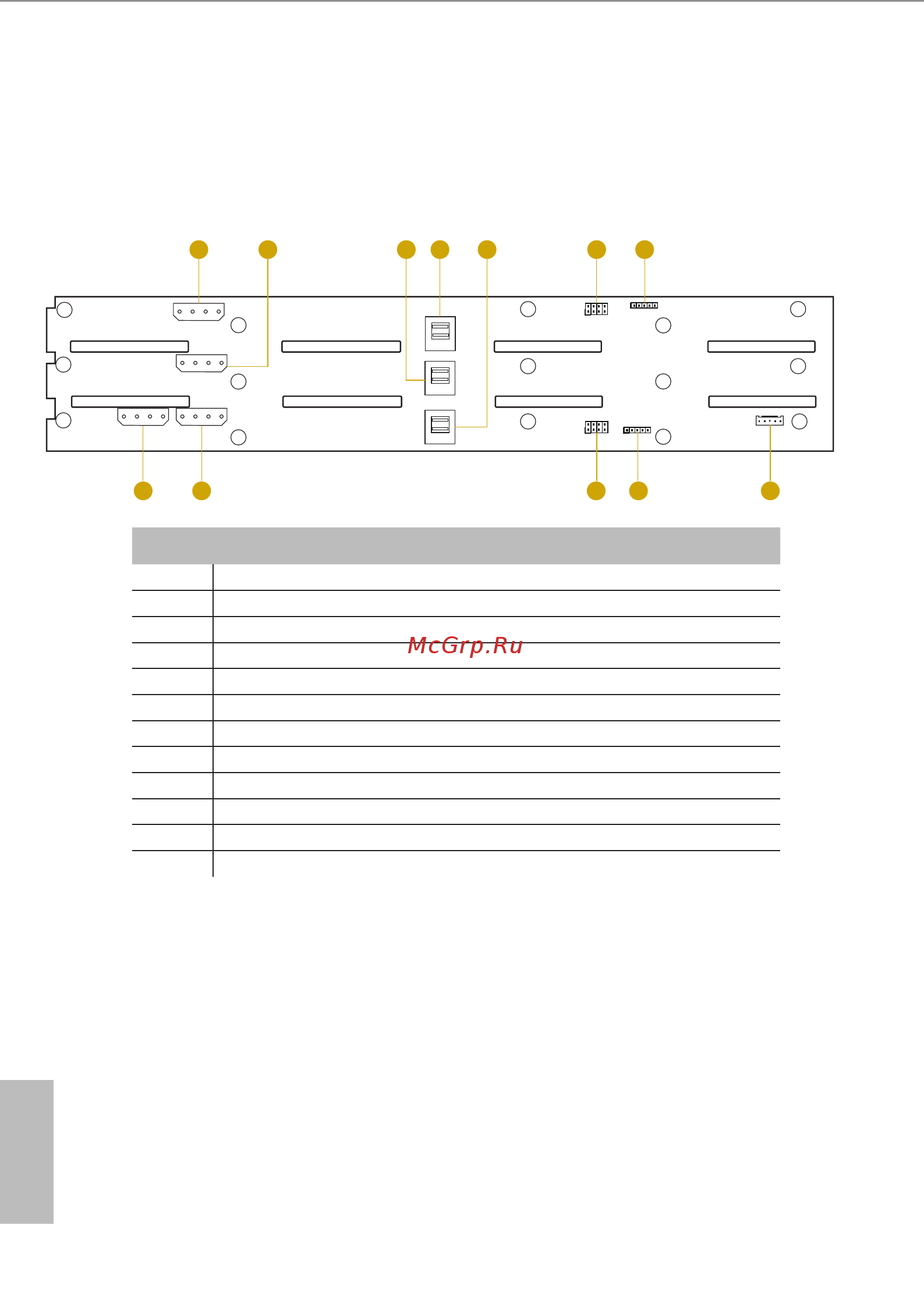

Chapter 4 Backplane Specications
4.1 Hard Drive Backplanes (BPB)
Top View
No. Description
1 HDD Power Connector (PWR_HDD4)
2 HDD Power Connector (PWR_HDD3)
3 Mini-SAS HD Connector (HBA1)
4 Mini-SAS HD Connector (HBA2)
5 Mini-SAS HD Connector (HBA0)
6 I2C Address Setting Jumper (BPB_ADDR_1)
7 Debug Header (CYP_DEBUG1)
8 BMC SMBus Connector (BMC_SMB1)
9 Debug Header (CYP_DEBUG2)
10 I2C Address Setting Jumper (BPB_ADDR_2)
11 HDD Power Connector (PWR_HDD2)
12 HDD Power Connector (PWR_HDD1)
BMC_SMB1
1
1
1
1
CYP_DEBUG2
CYP_DEBUG1
BPB_ADDR_2
BPB_ADDR_1
HBA0
HBA1
HBA2
PWR_HDD4
PWR_HDD3
PWR_HDD2
PWR_HDD1
1
2
3
10
4
5
6 7
8
91112
