1.10 How to Operate the Unit
Before attempting to use the unit, plug the power cable into a single phase 220 – 240 V/220 V (50/60 Hz) socket.
Note
For the first 2 seconds after the front panel has been reattached or the power cable plugged in, the unit does not respond to remote controller
commands - not even the buttons in
.
The buttons and their functions are explained below.

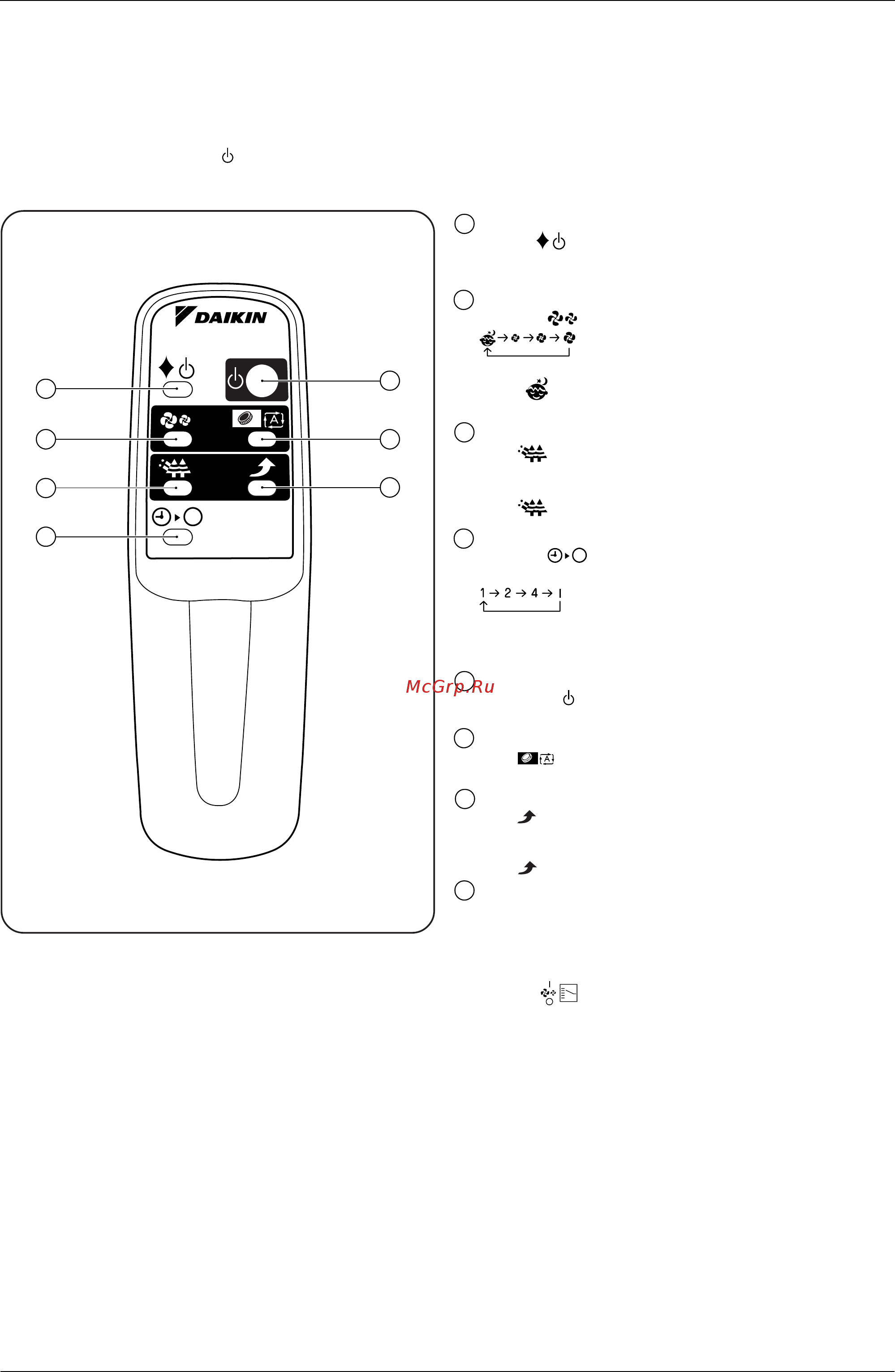

A To turn the lamps ON/OFF
Pressing turns the inverter lamp ON and OFF. Turn the lamp
OFF if light from the front panel is disturbing, for example at night. If
left OFF, deodorizing and antiviral performance is reduced.
B To set fan speed manually
Every time is pressed, fan speed changes as follows.
The fan starts at the last set fan speed.
When “
” is selected, the fan turns slowly enough not to disturb
people in their sleep.
C To remove pollen
Press once to remove pollen from room air effectively. The unit
will repeatedly switch between 5 minutes at normal speed and 5
minutes at low speed.
Press
again to turn the pollen mode OFF.
D To set the OFF timer
Every time is pressed, the OFF timer setting changes as
follows.
When the set time elapses, the unit shuts OFF automatically.
The setting can be changed at any time even while the unit is
running.
E To start/stop the unit
The first time is pressed, the unit starts up. The next time, it turns
OFF.
F To set fan speed automatically
Press . Fan speed is selected automatically - Quiet, Low,
Normal, High - depending on air quality.
G To remove cigarette odors and smoke effectively
Press once to remove cigarette odors and smoke from room air
rapidly. The unit will run for 30 minutes at especially high speed and
will then switch to auto fan speed control.
Press again to turn OFF the turbo mode.
H To turn OFF air quality lamps
Tu rn the air cleaner OFF before pressing this button when you want
to turn OFF the lamps.
To operate the unit from the front panel
The unit can be operated from the front panel instead of the remote control. Pressing the selects operating mode and turns the unit OFF.
See page 4.
If the unit malfunctions
If, during electrical storms or because of radio communications, the front panel lamps light irregularly, if the unit cannot be operated from the
remote controller or if some other problem occurs, unplug the power cable for a moment, then plug it back in and restart the unit.
PHOTOCATALYTIC
AIR CLEANER
ARC17A53
