22 23
English

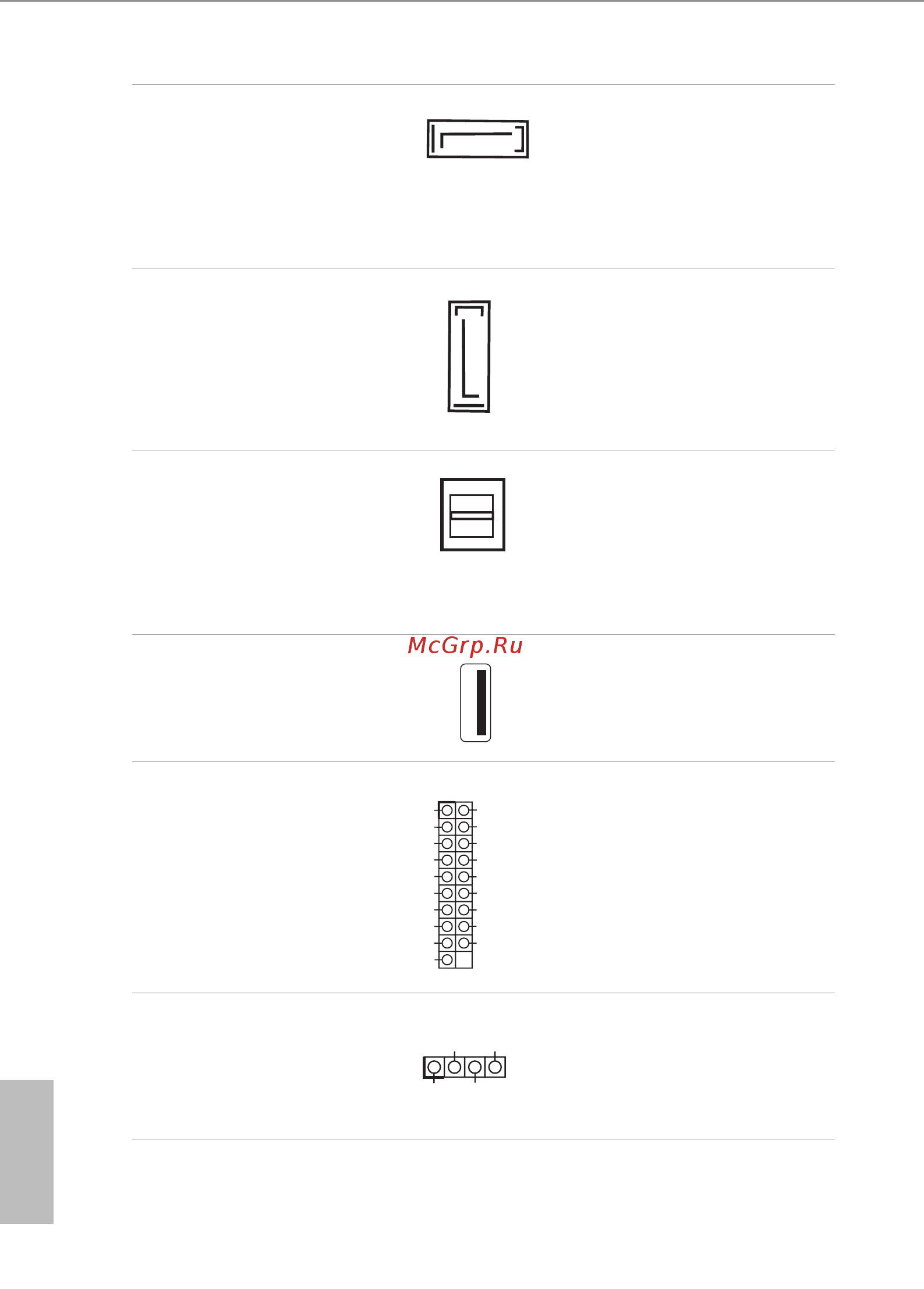

Serial ATA3 Connector
(SATA_1)
(see p.6, No. 16)
SA
TA_1
e SATA3 connector
supports SATA data cables for
internal storage devices with
up to 6.0 Gb/s data transfer
rate.
Serial ATA3 DOM
Connector
(SATA_0)
(see p.6, No. 17)
SATA _0
e SATA3 DOM connector
supports both a SATA DOM
(Disk-On-Module) and a
SATA data cable for internal
storage device.
MINI-SAS HD Connector
(MINI-SAS HD)
(see p.6, No. 18)
ese connectors support
MiniSAS-to-SATA data
cables for internal storage
devices with up to 6.0 Gb/s
data transfer rate.
USB 3.0 Connector
(USB3_5)
(see p.6, No. 31)
USB 3.0 Header
(19-pin USB3_3_4)
(see p.6, No. 13)
Besides two default USB 3.0
ports on the I/O panel, there
is one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB
3.0 ports.
Chassis Speaker Header
(4-pin SPEAKER1)
(see p.6, No. 28)
1
+5V
DUMMY
DUMMY
SPEAKER
Please connect the chassis
speaker to this header.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusV
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
MINI-SAS
HD
