E3C236D4I-44E85
42 43
English

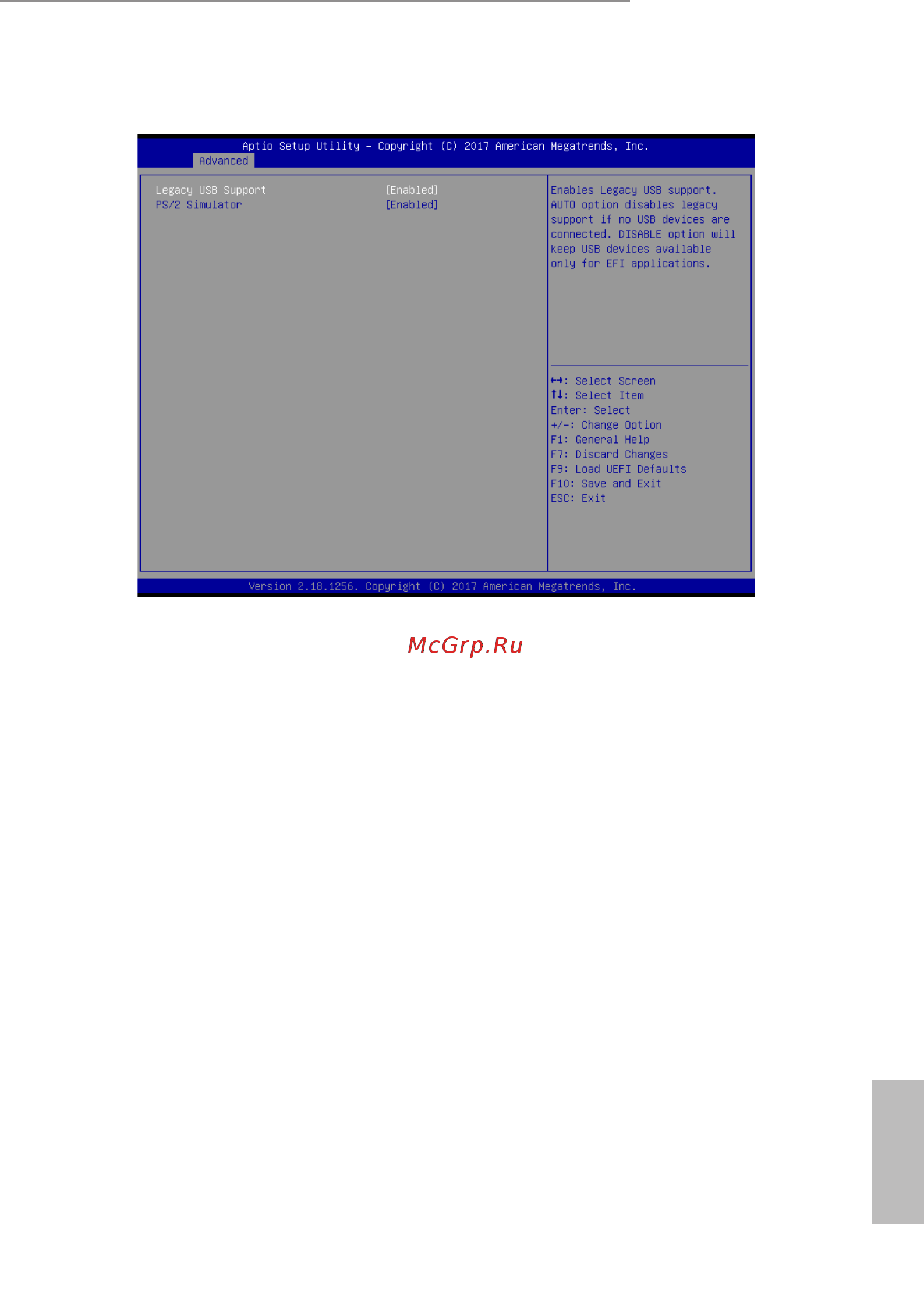

3.3.7 USB Conguration
Legacy USB Support
Use this option to enable or disable legacy support for USB devices. e default value is
[Enabled].
PS/2 Simulator
Enable PS/2 Simulator. is should be enabled for the complete USB keyboard legacy
support for non-USB aware OSes.
*Enable this option if you install Windows 2008.
