E3C236D4I-44E85
72 73
English

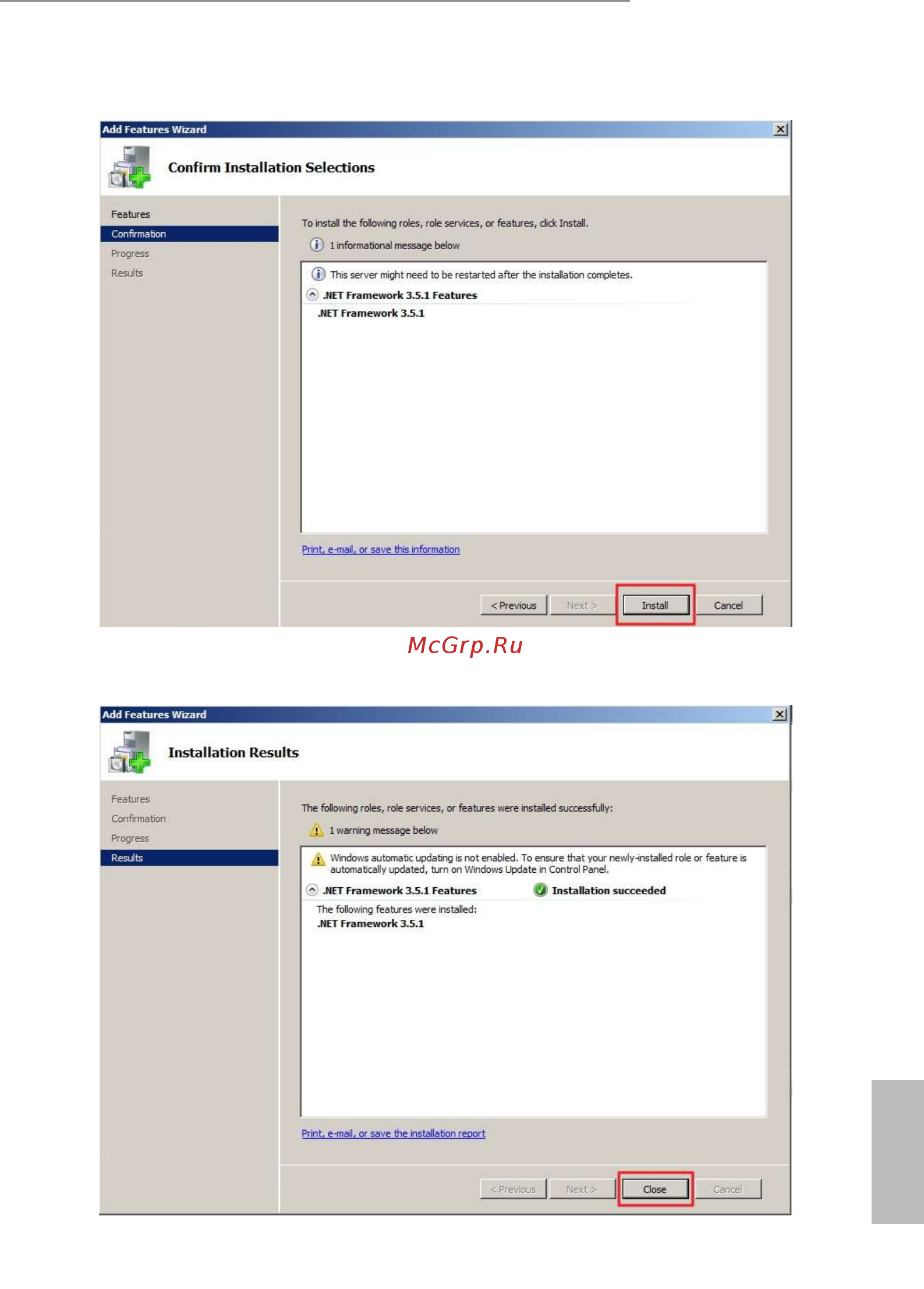

5. Click Install to start installing .Net Framework 3.5.1.
6. Aer the installation completes, click Close.
