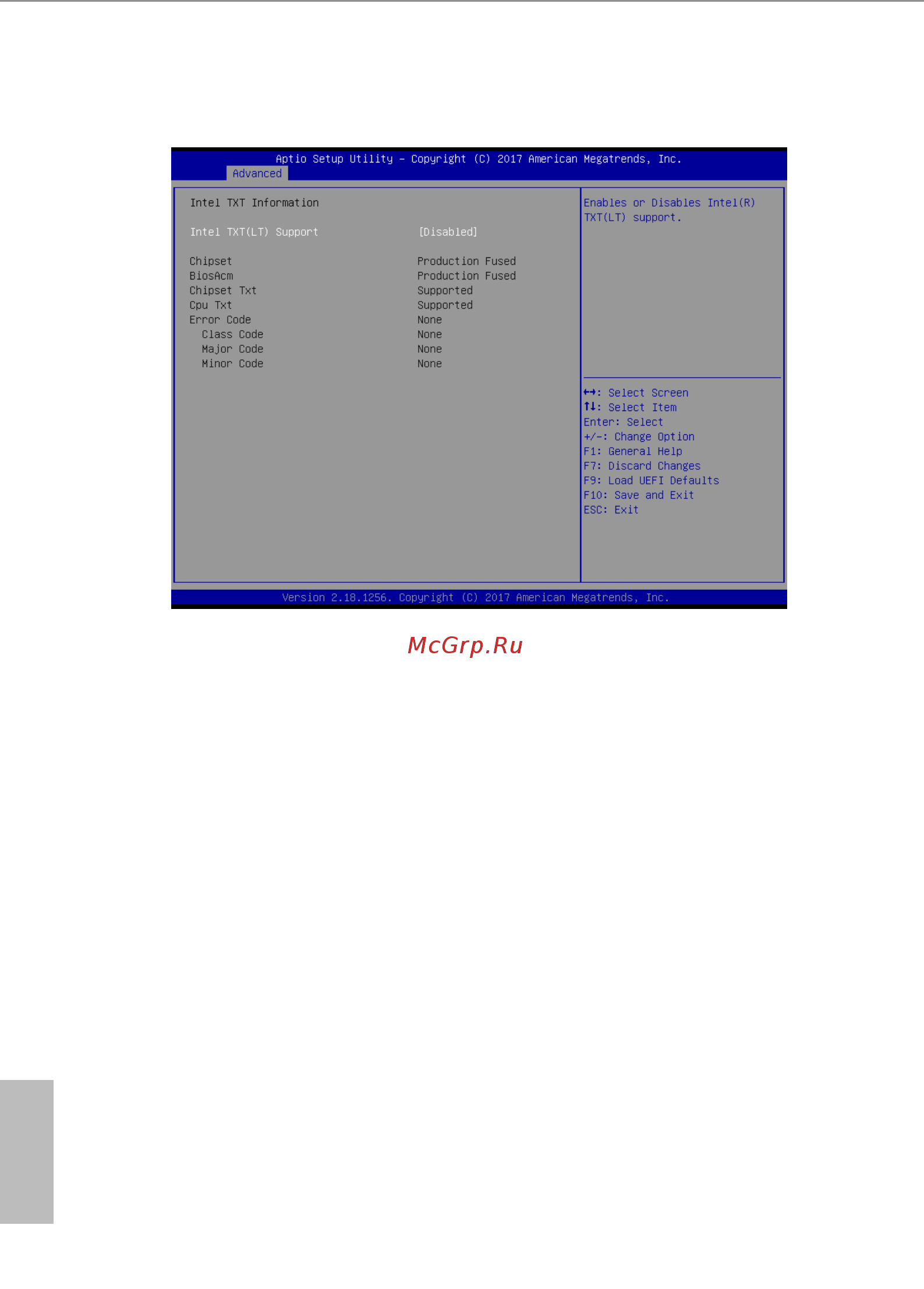

3.3.13 Intel TXT information
Intel TXT(LT) Support
Use this item to enable or disable Intel(R) TXT(LT) support.
