E3C236D4I-44E85
22 23
English

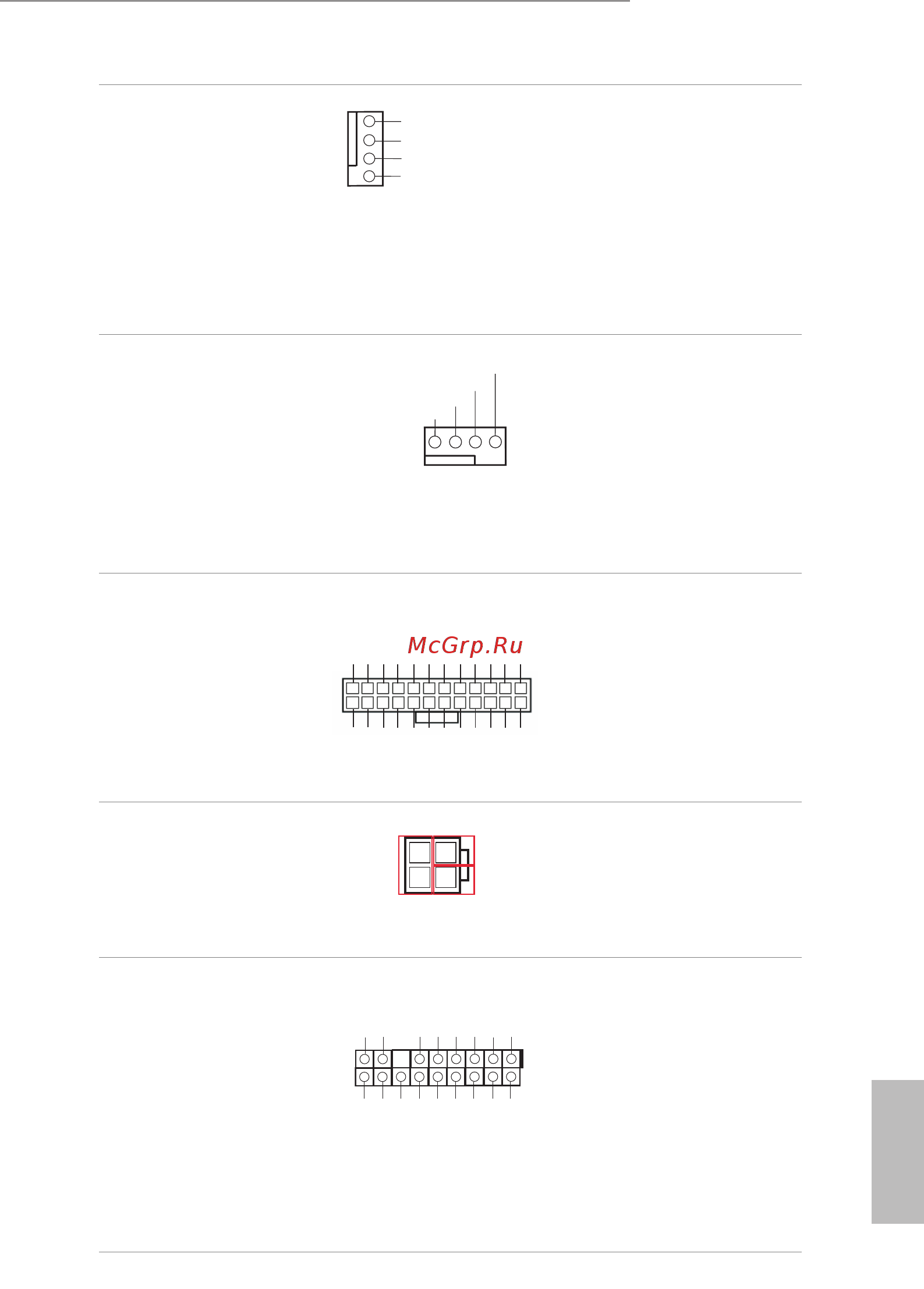

CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.6, No. 38)
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
is motherboard provides
one 4-Pin CPU fan (Quiet
Fan) connectors. If you plan
to connect a 3-Pin CPU fan,
please connect it to Pin 1-3.
*For more details, please refer to the
Cooler QVL list on the ASRock Rack
website.
Front and Rear Fan
Connectors
(4-pin FRNT_FAN1)
(see p.6, No. 5)
(4-pin REAR _FAN1)
(see p.6, No. 34)
FAN_SPEED
FAN_SPEED_CONTROL
GND
FAN_VOLTAGE
1234
Please connect fan cables to
the fan connector and match
the black wire to the ground
pin. A ll fans support Fan
Control.
ATX Power Connector
(24-pin ATX PWR1)
(see p.6, No. 2)
3V
3V
GND
GND
5V
5V
GND
PWROK_PS
5VSB
12V
12V
3V
121
13
24
3V
-12V
GND
PSON#
GND
GND
GND
5V
5V
5V
GND
N/A
is motherboard provides a
24-pin ATX power connector.
To use a 20-pin ATX power
supply, please plug it along
Pin 1 and Pin 13.
SATA Power Connector
(4-pin SATA_PWR1)
(see p.6, No. 29)
+5V
GND
+12V
is motherboard provides a
4-pin SATA power connector.
TPM Header
(17-pin TPM1)
(see p.6, No. 1)
1
G N
D
S M B_DATA_MAIN
LAD2
LAD1
G ND
S _ PWRDWN#
S E RIRQ#
G N
D
PCICL
K
P C IRST#
LAD3
+ 3 V
LAD0
+3VSB
G N D
L F RAME#
S M B_CLK_MAIN
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
