22 23
English

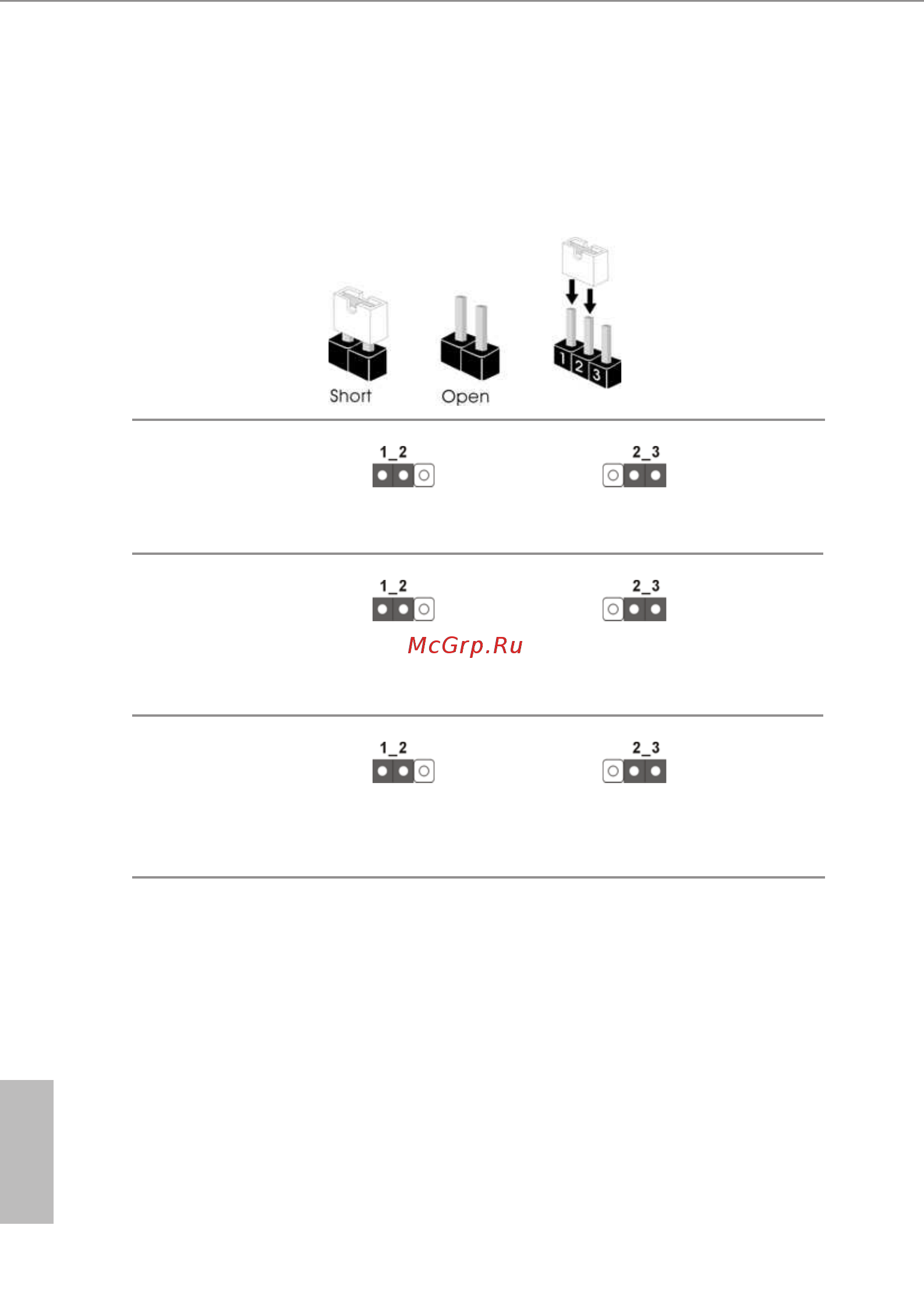

2.7 Jumper Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
ME Recovery Jumper
(3-pin ME_RECOVERY1)
(see p.6, No. 32)
Normal Mode (Default)
ME Recovery Mode
Descriptor Security Over-
ride Jumper
(3-pin J100)
(see p.6, No. 33)
Descriptor Security Over-
ride
Not Override (Default)
CPU PECI Mode Jumper
(3-pin PECI_ SEL1)
(see p.6, No. 17)
CPU PECI connect to PCH
CPU PECI connect to BMC
(Default)
