EP2C612D8HM
70 71
English

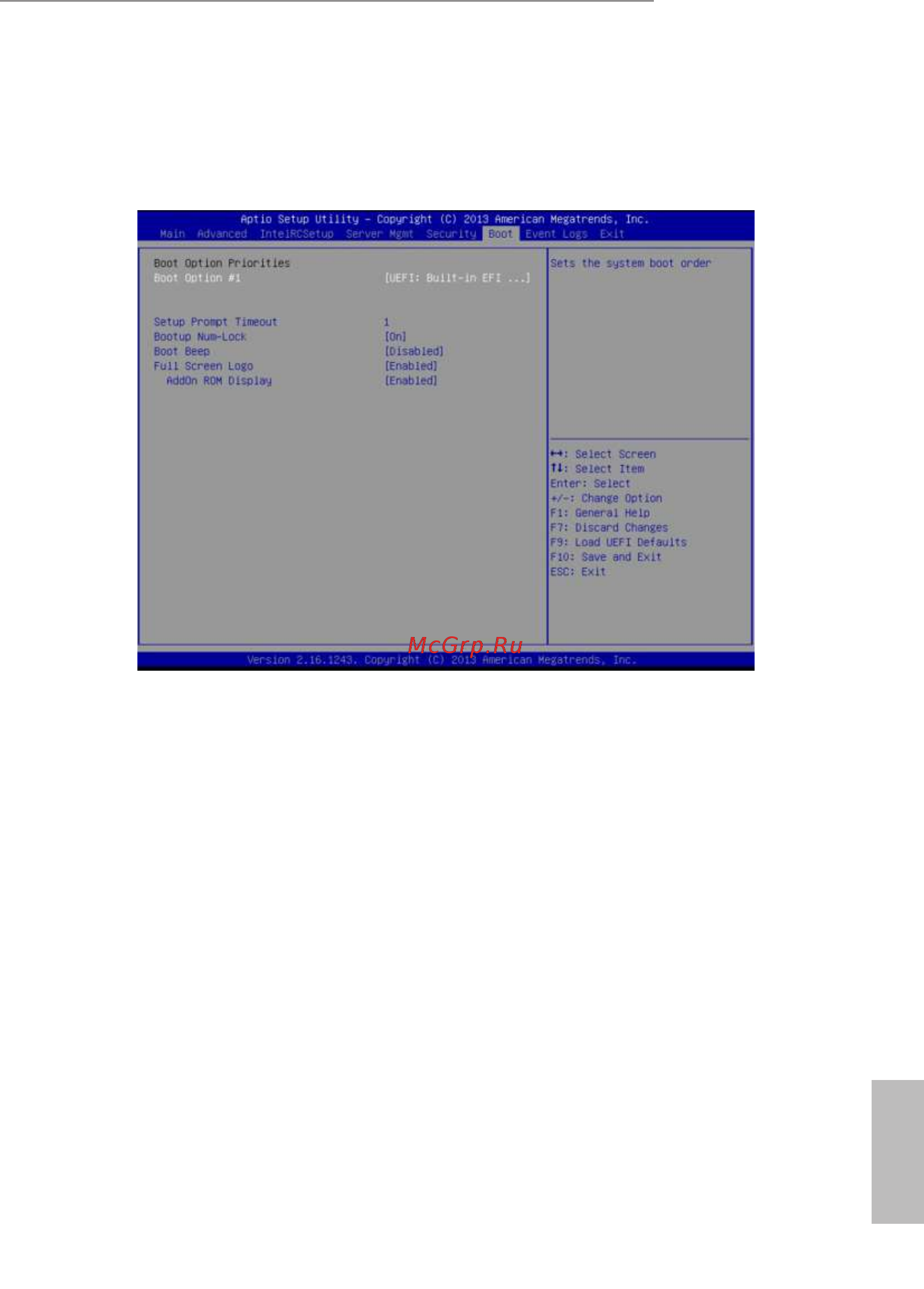

3.7 Boot Screen
In this section, it will display the available devices on your system for you to congure the
boot settings and the boot priority.
Boot Option #1
Use this item to set the system boot order.
Setup Prompt Timeout
is shows the number of seconds to wait for setup activation key. 65535(0XFFFF) means
indenite waiting.
Bootup Num-Lock
If this item is set to [On], it will automatically activate the Numeric Lock function aer
boot-up.
Boot Beep
Select whether the Boot Beep should be turned on or o when the system boots up. Please
note that a buzzer is needed.
Full Screen Logo
Use this item to enable or disable OEM Logo. e default value is [Enabled].
