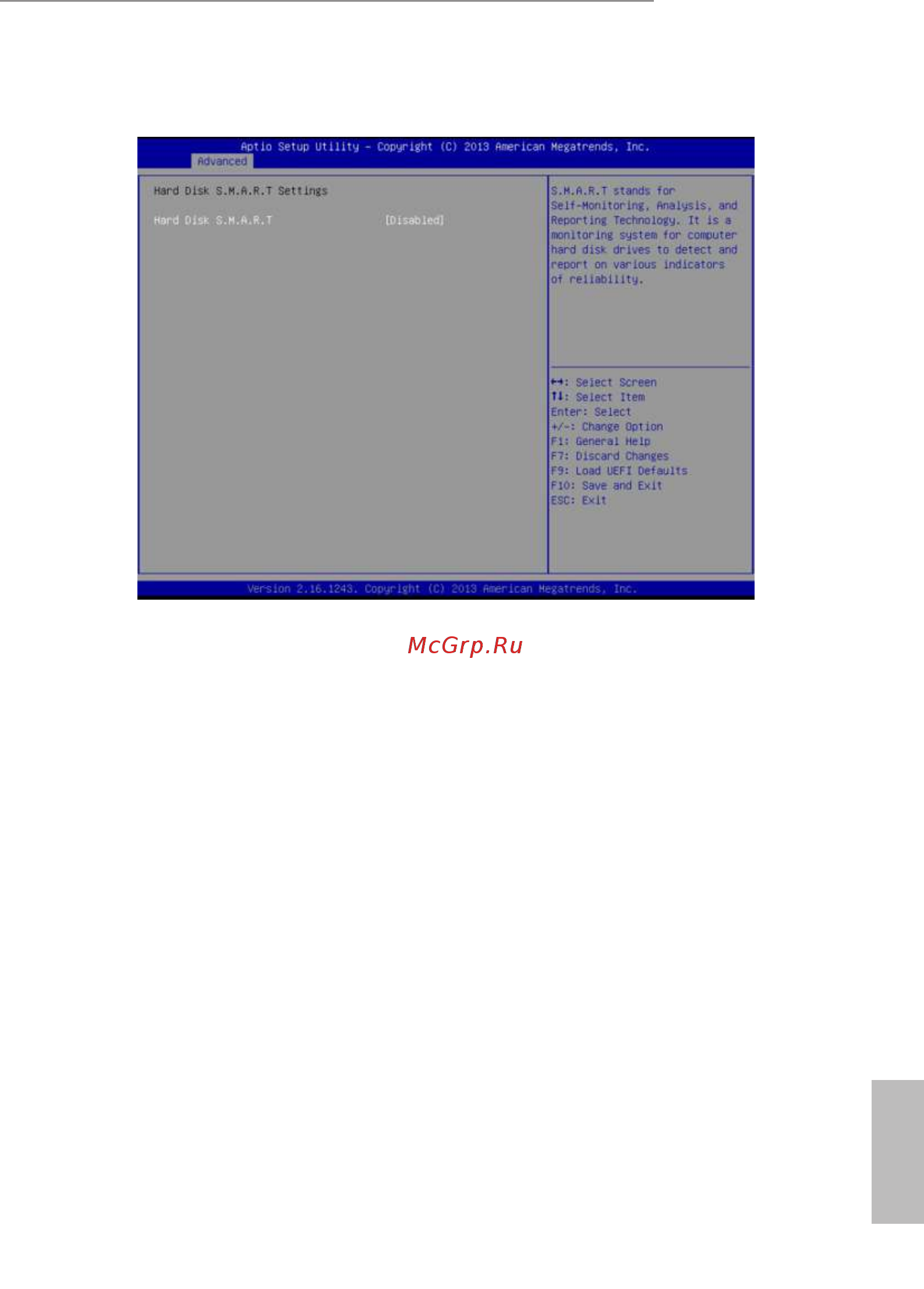

3.3.8 Hard Disk S.M.A.R.T Settings
Hard Disk S.M.A.R.T.
Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analysis, and
Reporting Technology) feature. Conguration options: [Disabled] and [Enabled].
