ASRock EP2C612D8HM [56/89] Easy raid installer
![ASRock EP2C612D8HM [56/89] Easy raid installer](/views2/1694671/page56/bg38.png)
50 51
English

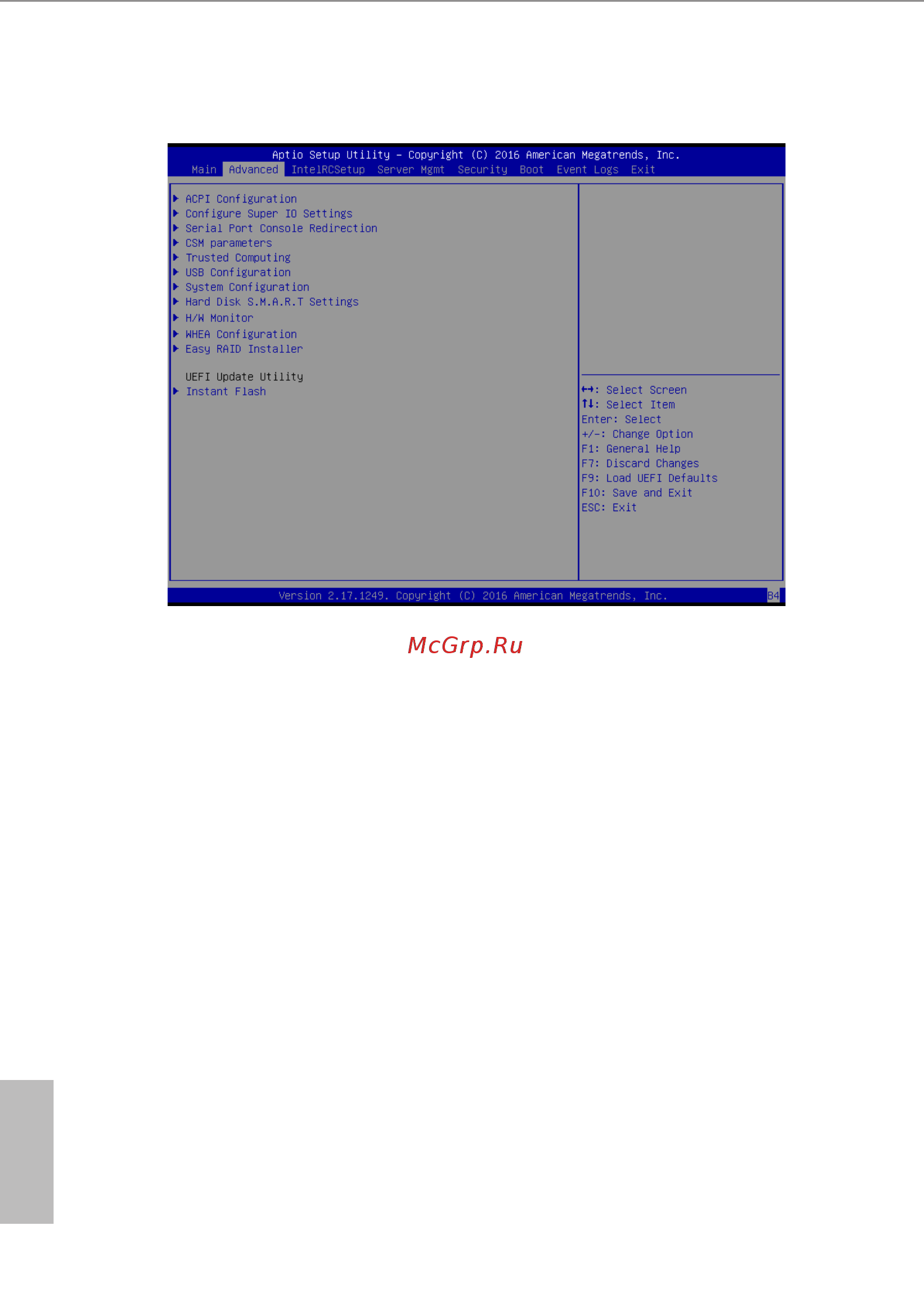

3.3.11 Easy RAID Installer
Easy RAID Installer helps you to copy the RAID driver from the support CD to your USB
storage device. Aer copying the driver please change the SATA mode to RAID, then you
can start installing the operating system in RAID mode.
