ASRock EP2C612D8HM [38/89] Main screen
![ASRock EP2C612D8HM [38/89] Main screen](/views2/1694671/page38/bg26.png)
32 33
English

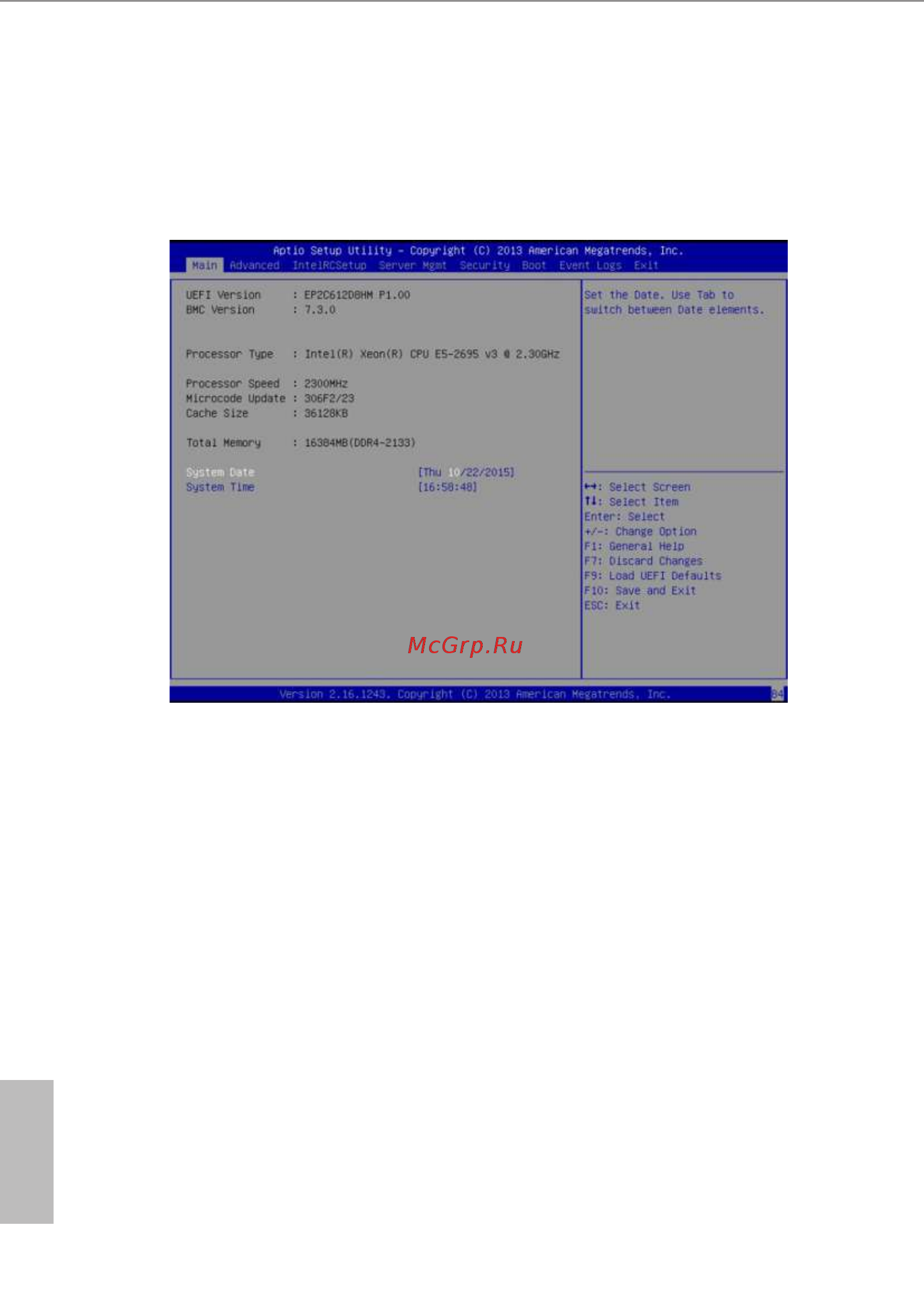

3.2 Main Screen
Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the
system overview. e Main screen provides system overview information and allows you
to set the system time and date.
