Troubleshooting by Indication on the Remote Controller Si38-606
146 Troubleshooting
2.24
“
J2
”
Current Sensor Malfunction
Remote
Controller
Display
J2
Applicable
Models
RXM8, 10M
Method of
Malfunction
Detection
Malfunction is detected according to the current value detected by current sensor.
Malfunction
Decision
Conditions
When the current value detected by current sensor becomes 5A (400 V unit) or lower during
STD compressor operation and 40A or more during STD compressor stop.
Supposed
Causes
Faulty current sensor
Faulty outdoor unit PC board

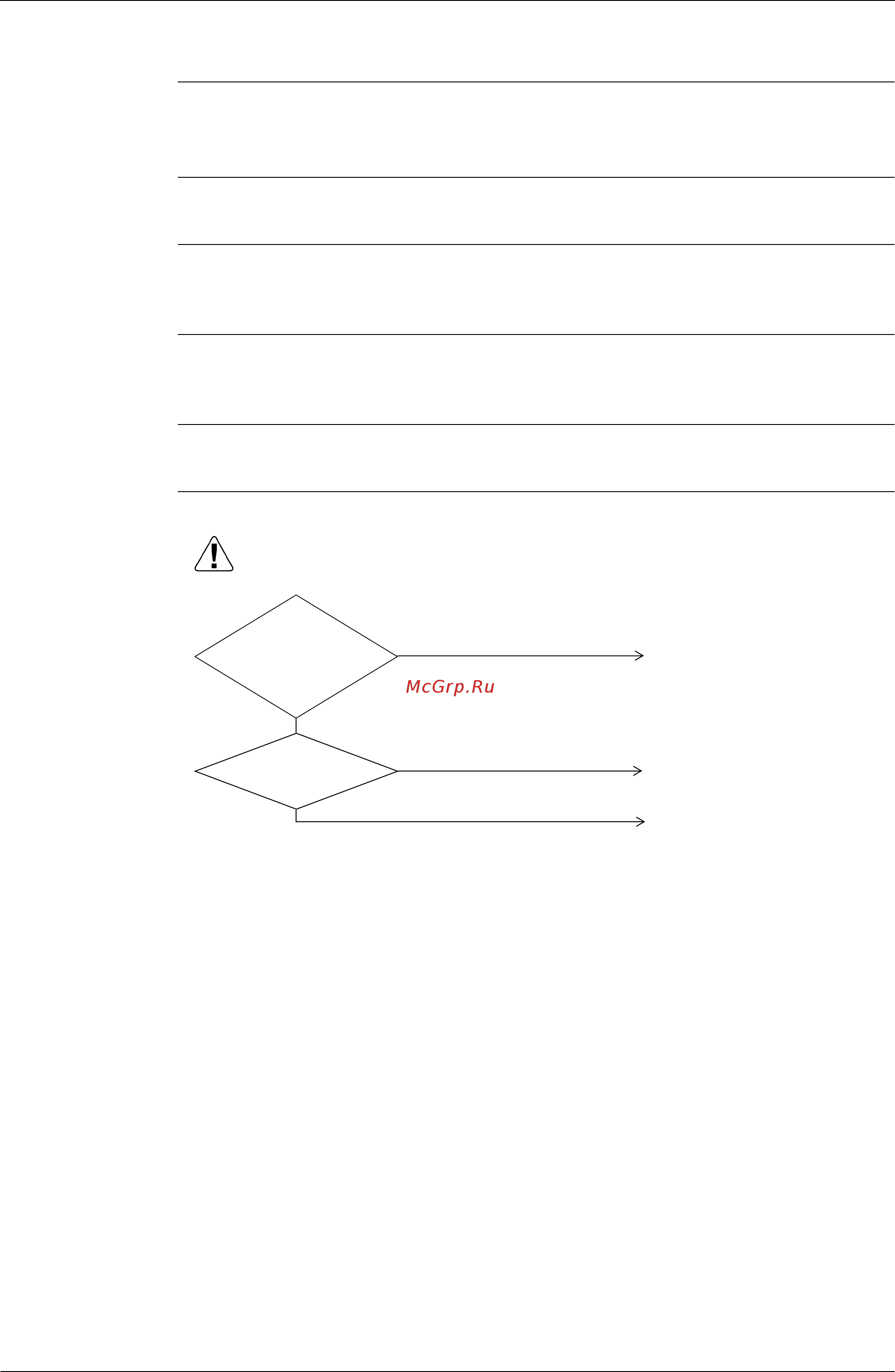

Troubleshooting
(V3071)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Is the
current sensor
mounted on the T-phase
wire?
Is the
connector for
current sensor
connected to X30A, X31A
on outdoor unit
PC board
(A1P)?
Replace current sensor and
outdoor unit PC board.
Connect the connector, and
operate unit again.
NO
NO
Mount the current sensor
correctly, and operate unit again.
YES
YES
