Outdoor Unit PC Board Layout Si38-606
74 Test Operation

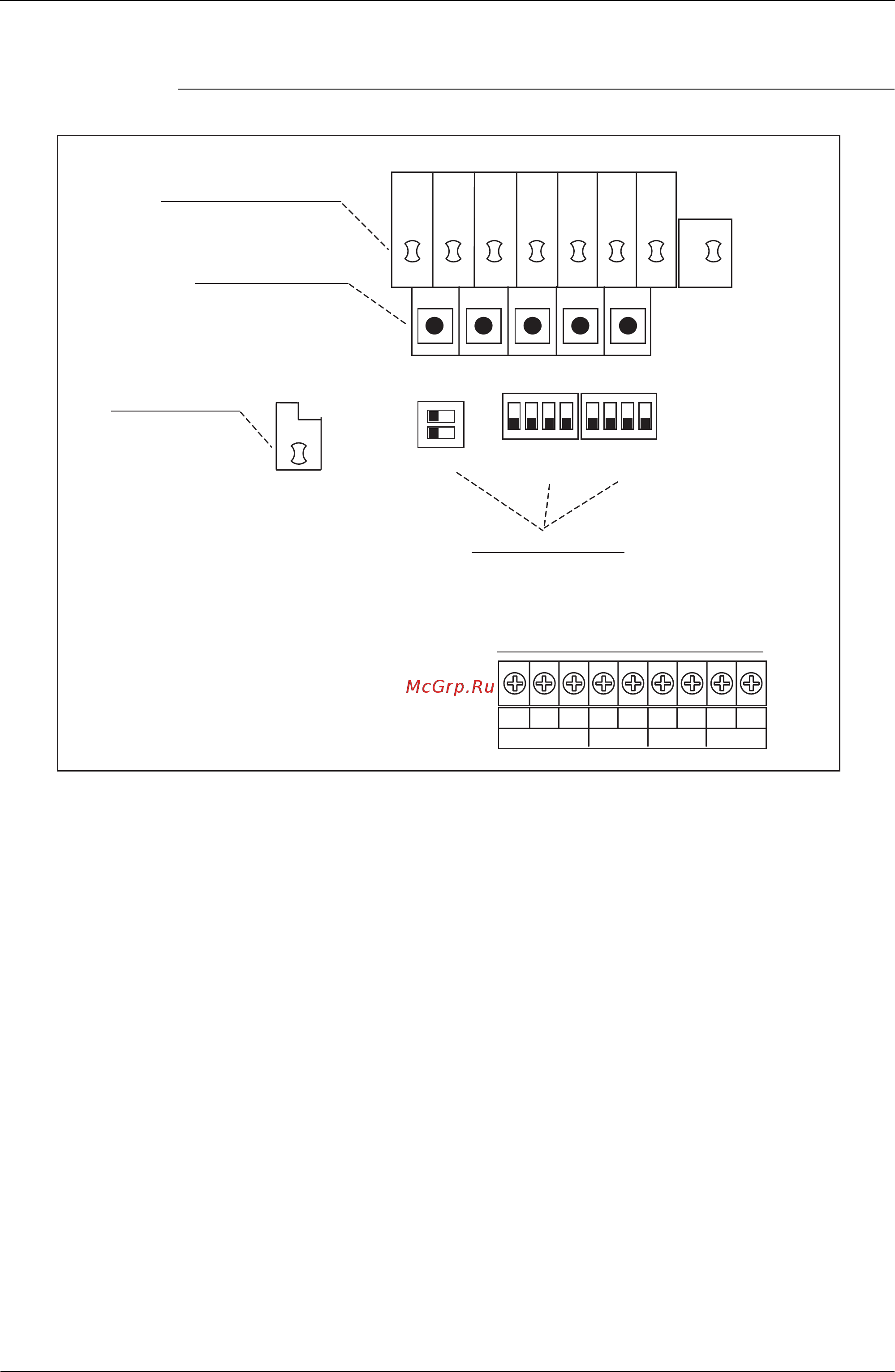

2. Outdoor Unit PC Board Layout
Outdoor unit PC board
BS1
MODE SET RETURN TEST RESET
BS2 BS3 BS4 BS5
H1P H2P H3P H4P H5P H6P H7P H8P
1 2 3 4
1
2
1 2 3 4
A B C F1F2F1F2Q1Q2
Switch cool/heat
Indoor −
Outdoor
Outdoor −
Outdoor
Multi outdoor
(2) Set mode display (LED)
(3) Mode setting switch
(1) Service monitor
(4) Local setting switch
Connection terminal for transmission use
DS1 DS2
DS3
HAP
(V3054)
(1) Service monitor
This monitor blinks while in normal operation, and turns on or off when a malfunction occurs.
(2) Set mode display (LED)
LEDs display mode according to the setting.
(3) Mode setting switch
Used to change mode.
(4) Local setting switch
Used to make local settings.
