Protection Control Si38-606
58 Function
4.4 Inverter Protection Control
Inverter current protection control and inverter fin temperature control are performed to prevent
tripping due to a malfunction, or transient inverter overcurrent, and fin temperature increase.
★
In the case of multi-outdoor-unit system, each INV compressor performs these controls in
the following sequence.

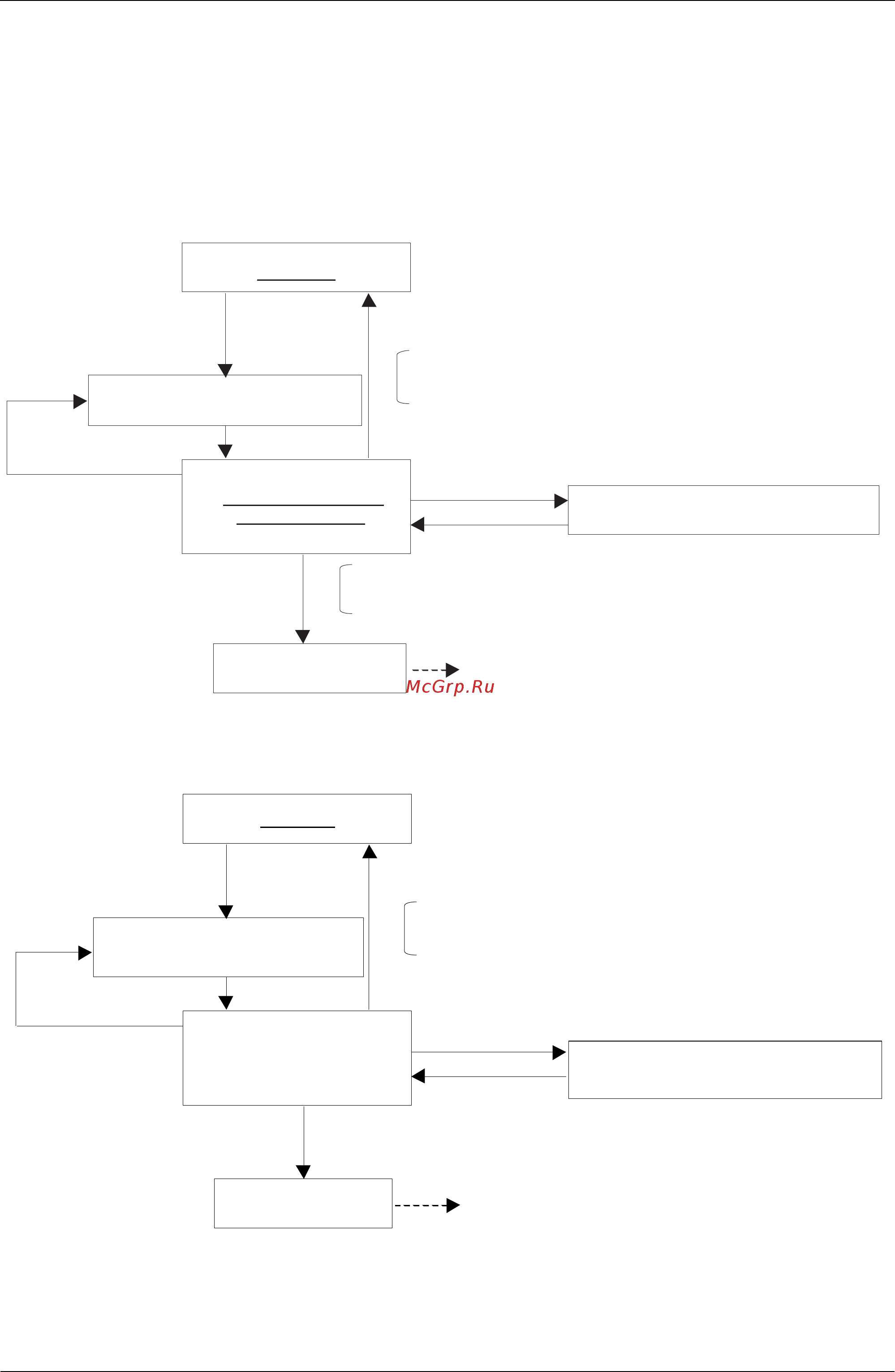

[Inverter overcurrent protection control]
[Inverter fin temperature control]
Not limited
Under inverter current
protection control
Inverter current >13.5A
Inverter current standby
Inverter current <13.5A
INV upper limit frequency
= 210 Hz
INV upper limit frequency: 1-step down
from current compressor frequency
INV upper limit frequency: 1-step up from
current compressor frequency
Inverter current >13.5A
Inverter current<Ia continues
for 3 min. or more.
Inverter current > 16.5A continues for 5 sec.
&
•
When occurring 3 times within 60 min.,
the malfunction code “L8 ” is output.
•
When occurring 3 times within 30 min.,
the malfunction code “L9” is output
Not limited
Tfin>84˚C
Fin temp. standby
Tfin<81˚C
INV upper limit frequency = 210 Hz
Under fin temperature
protection control
INV upper limit frequency: 1-step /
1 min down from current compressor
frequency
INV upper limit frequency: 1-step / 1 min
up from current compressor frequency
Interval
Inverter current<81˚C continues
for 3 min. or more.
&
Tfin>84˚C
Tfin>89˚C
•
When occurring 3 times within 60 min.,
the malfunction code “L4” is output.
