ED39-865 Piping Diagrams
FXMQ-P (R-410A) 55
2

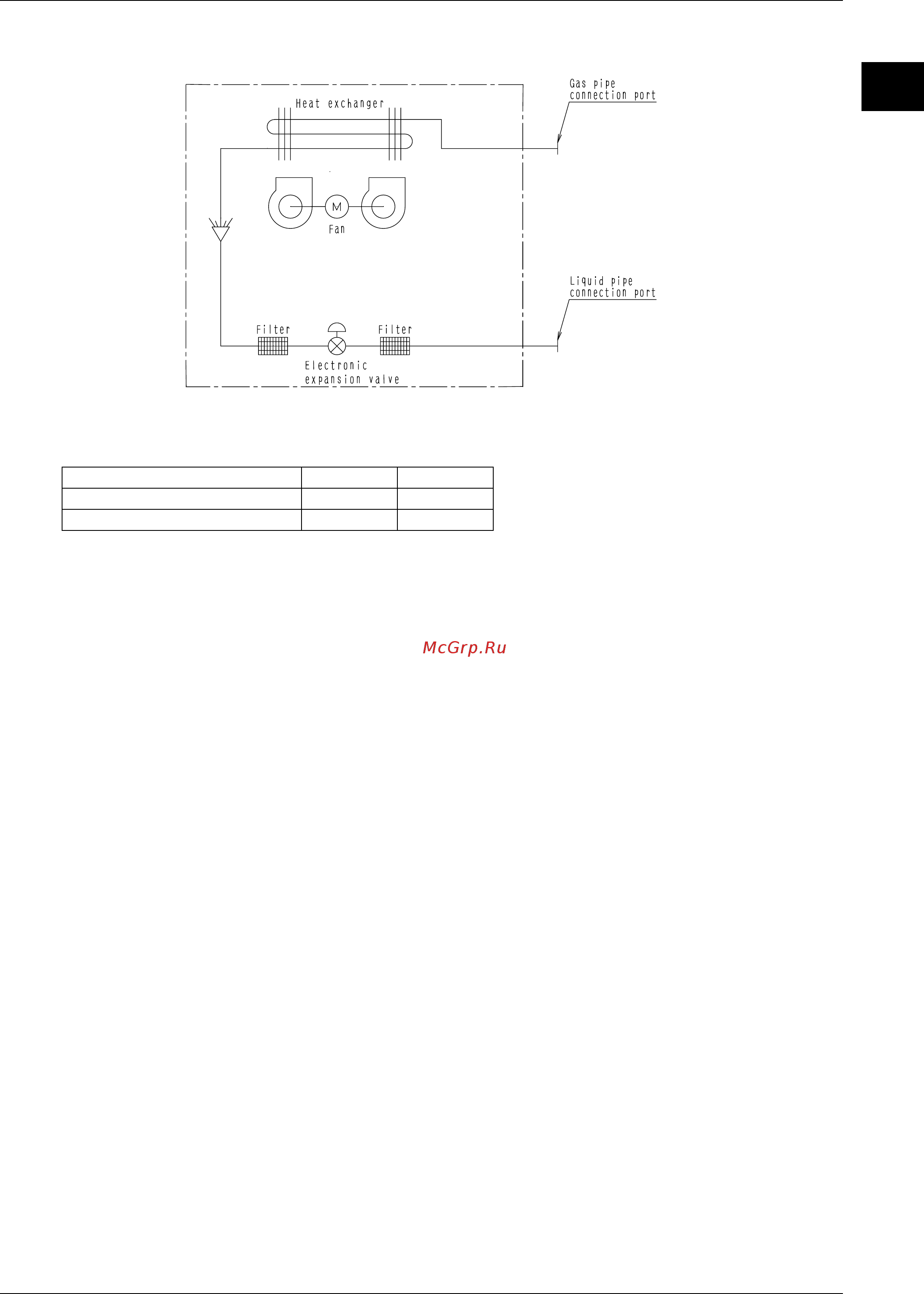

4. Piping Diagrams
Refrigerant pipe connection port diameters
(mm)
Model Gas Liquid
FXMQ40P / 50PVE
φ
12.7
φ
6.4
FXMQ63P / 80P / 100P / 125PVE
φ
15.9
φ
9.5
4D034245C
