English 14
CAUTION

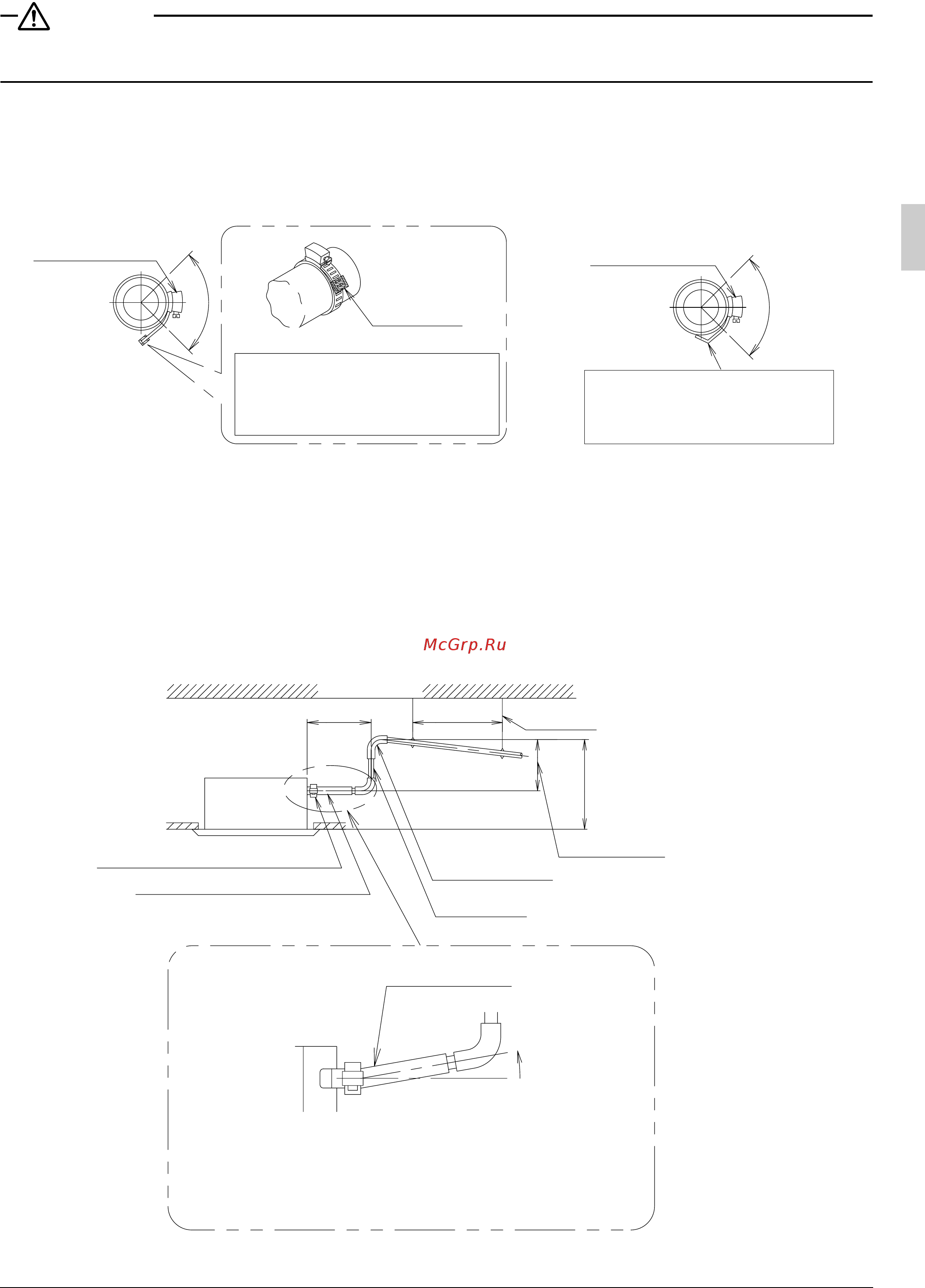

• Do not tighten the metal clamp (2) with the torque more than the specified value.
The drain hose (1), the socket or the metal clamp (2) may be damaged.
• Wrap the vinyl tape around the end of the metal clamp (2) so that the sealing material (Large) (10) to be
used at the next process may not be damaged with the clamp end or bend the tip of the metal clamp (2)
inward as shown. (Refer to Fig. 12)
< Caution to be taken when carrying out upward drain piping (Refer to Fig. 13) >
• The maximum height of the drain riser is 580mm. Since the drain pump mounted on this indoor unit is
a high head type, from the characteristic point of view, the higher the drain riser the lower the draining
noise.
Therefore, the drain riser of 300mm or higher is recommended.
• For upward drain piping, keep the horizontal piping distance of 300mm or less between the drain socket
root to the drain riser.
<In case of sticking vinyl tape>
Tightened part
approx. 90˚
Stick vinyl tape without
tearing the sealing material
(Large) (10) .
Vinyl tape
Bend the tip without tearing
the sealing material (Large)
(10).
Fig. 12
<In case of bending the tip>
Tightened part
approx. 90˚
Ceiling slab
300 or less
1~1.5m
(unit [mm])
Support
Metal clamp (2) (accessory)
Drain hose (1) (accessory)
Upward drain
piping
Drain riser
Adjustable
(580 or less)
(850 or less)
Drain hose (1)
(accessory)
Level or upward inclination
Keep the drain hose level or make a slight up-grade so
that air may not stagnate in the drain hose.
If air stagnates, the drain may flow oppositely when the
drain pump stops and generate abnormal sound.
Fig. 13
01_EN_3P249378-7M.fm Page 14 Wednesday, September 12, 2012 1:05 PM
