[When the electric wiring work is not finished]

• The electric wiring works (including earthing) must be carried out by a qualified electrician.

• If a qualified person is not present, after the electric wiring work is finished, check the drainage accord-

ing to the method specified in [When the electric wiring work is finished].

1. Open the control box lid and connect the single phase 220 - 240V power supply to the terminal (L, N)

on the terminal block (X2M).

Connect the earth wiring to the earth terminal. (Refer to Fig. 16)

2. Make sure the control box lid is closed before turning on the power supply.

• Throughout the whole process, carry out the work giving caution to the wiring around the control

box so that the connectors may not come off.

• Securely clamp the power supply wiring to avoid the wiring connection from getting tension. (e.g.

Fig. 16)

3. Gradually pour 1 liter of water from the air outlet into the drain pan giving caution to avoid splashing

water on the electric components such as drain pump. (Refer to Fig. 15)

4. When the power supply is turned on, the drain pump will operate. Drainage can be checked at the

transparent part of the drain socket.

(The drain pump will automatically stop after 10 minutes.)

• Do not apply external force to the float switch. (It may result in malfunction)

5. Turn off the power supply after checking drainage, and remove the power supply wiring.

Attach the control box lid as before.

• Do not touch the electronic parts other than the terminal block (X2M).

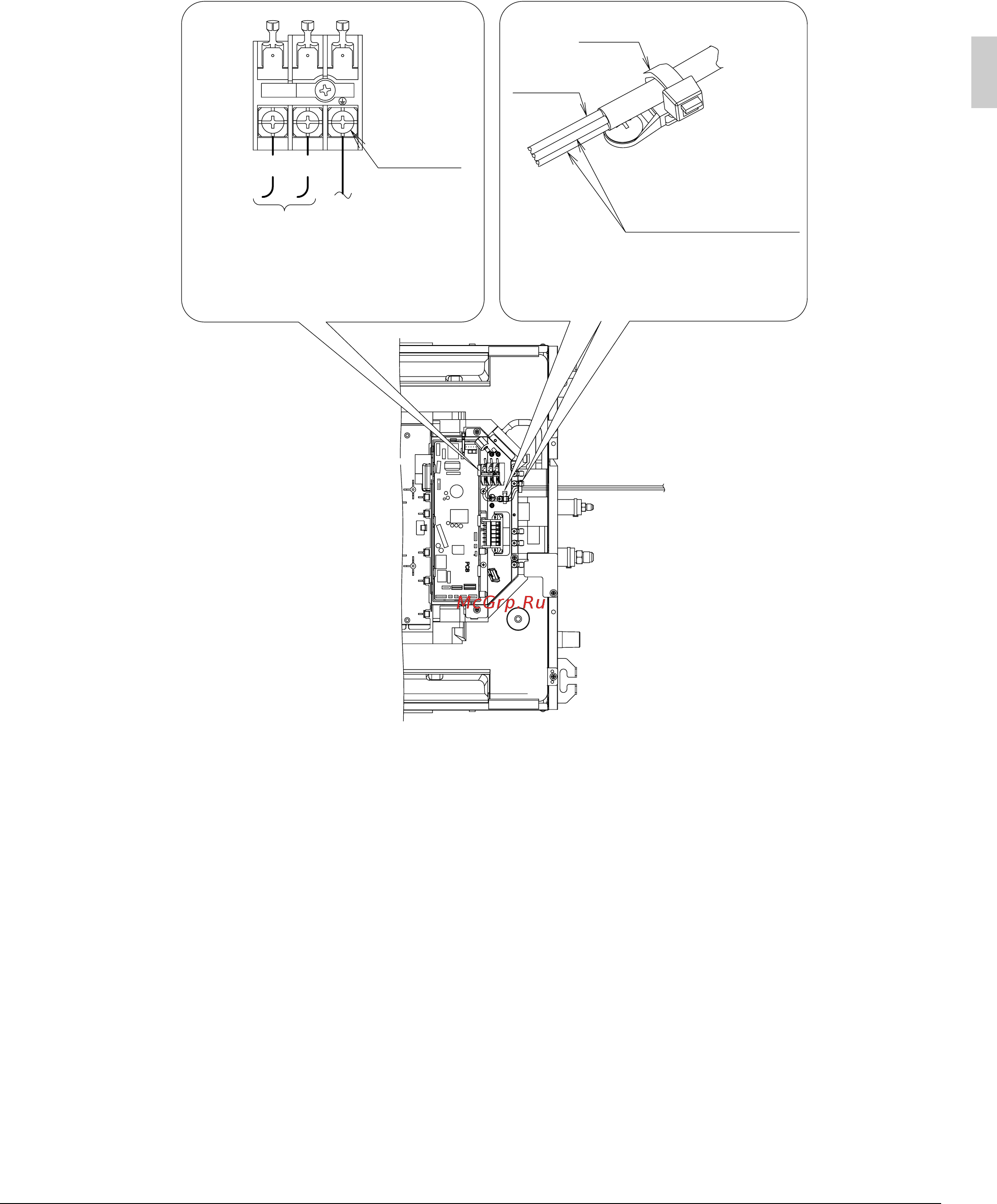

Fig. 16

Terminal

block (X2M)

Earth

terminal

Earth wiring

Power supply

220-240V

50Hz

Clamp

Earth

wiring

Power supply wiring

220-240V

50Hz

Example of wiring clamping

(Clamps are field supply)
