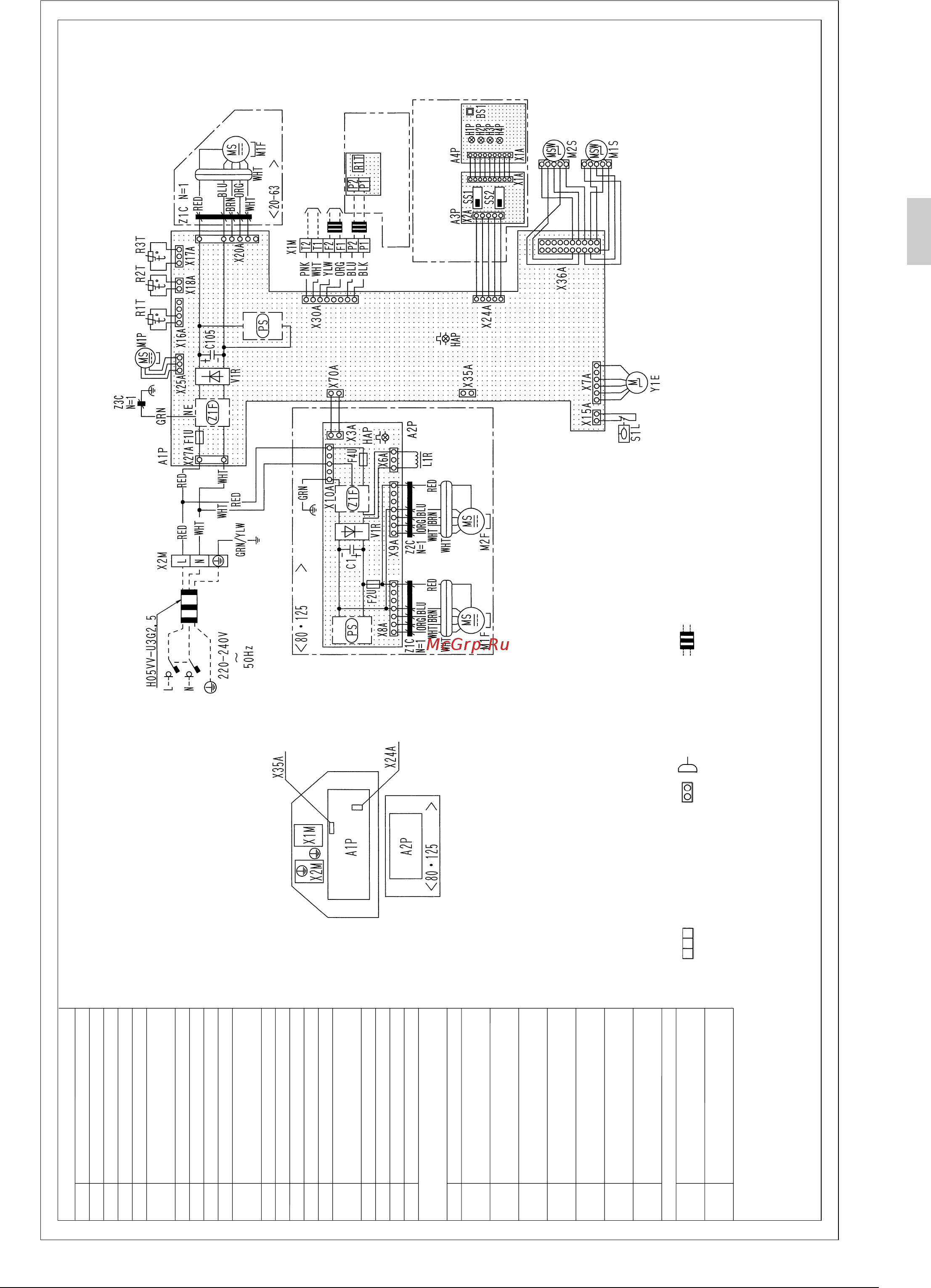

Daikin FXCQ125AVEB [29/30] Wiring diagram
![Daikin FXCQ125AVEB [29/30] Wiring diagram](/views2/1700002/page29/bg1d.png)
English 28
3P322450-1 FXCQ20 · 25 · 32 · 40 · 50 · 63 · 80 · 125AVEB
WIRING DIAGRAM
NOTES
1. : TERMINAL BLOCK , : CONNECTOR : FIELD WIRING
2. IN CASE USING CENTRAL REMOTE CONTROLLER, CONNECT IT TO THE UNIT IN ACCORDANCE WITH THE ATTACHED INSTALLATION MANUAL.
3. WHEN CONNECTING THE INPUT WIRING FROM OUTSIDE, FORCED OFF OR ON/OFF CONTROL OPERATION CAN BE SELECTED BY THE REMOTE CONTROLLER.
SEE INSTALLATION MANUAL FOR MORE DETAILS.
4. IN CASE OF MAIN/SUB OVERCHANGE, SEE THE INSTALLATION MANUAL ATTACHED TO REMOTE CONTROLLER.
5. SHOWS ONLY IN CASE OF PROTECTED PIPING. USE H07RN-F IN CASE OF NO PROTECTION.
6. SYMBOLS SHOW AS FOLLOWS : RED: RED BLK: BLACK WHT: WHITE YLW:YELLOW GRN: GREEN ORG: ORANGE BRN: BROWN PNK: PINK BLU: BLUE
PRINTED CIRCUIT BOARD
CAPACITOR
FUSE (T, 3.15A, 250V)
FUSE (T, 5A, 250V)
FUSE (T, 6.3A, 250V)
FLASHING LAMP (A1P, A2P)
(SERVICE MONITOR GREEN)
REACTOR
MOTOR (INDOOR FAN)
MOTOR (DRAIN PUMP)
MOTOR (SWING BLADE)
POWER SUPPLY CIRCUIT
(A1P, A2P)
THERMISTOR (AIR)
THERMISTOR (COIL)
FLOAT SWITCH
DIODE BRIDGE
TERMINAL BLOCK
ELECTRONIC EXPANSION
VALVE
FERRITE CORE
FERRITE CORE
FERRITE CORE
NOISE FILTER (A1P, A2P)
PRINTED CIRCUIT BOARD
PUSH BUTTON SWITCH
(ON/OFF)
PILOT LAMP
(ON-RED)
PILOT LAMP
(TIMER-GREEN)
PILOT LAMP
(FILTER SIGN-RED)
PILOT LAMP
(DEFROST-ORANGE)
SELECTOR SWITCH
(MAIN/SUB)
SELECTOR SWITCH
(WIRELESS ADDRESS SET)
CONNECTOR (WIRELESS
REMOTE CONTROLLER)
CONNECTOR (POWER
SUPPLY FOR ADAPTOR)
A1P·A2P
C105·C1
F1U
F2U
F4U
HAP
L1R
M1F·M2F
M1P
M1S·M2S
PS
R1T
R2T·R3T
S1L
V1R
X1M·X2M
Y1E
Z1C
Z2C
Z3C
Z1F
A3P·A4P
BS1
H1P
H2P
H3P
H4P
SS1
SS2
X24A
X35A
WIRELESS REMOTE CONTROLLER
(RECEIVER/DISPLAY UNIT)
CONNECTOR FOR OPTIONAL PARTS
INDOOR UNIT
12
3
4
5
6
7
8
8
8
Fig. 21
01_EN_3P249378-7M.fm Page 28 Wednesday, September 12, 2012 1:05 PM
