23 English
< No. 3 system: When BS unit is used >
NOTE
1. Remote controller wiring and transmission wiring have no polarity.
WARNING
Be sure to install an earth leakage breaker.
Failure to do so may cause electric shocks and a fire.
8-6 FOR CONTROL WITH 2 REMOTE CONTROLLERS (TO CONTROL 1 INDOOR UNIT WITH
2 REMOTE CONTROLLERS)
• For control with 2 remote controllers, set one remote controller as Main and the other remote controller as
Sub.
< Changeover method from Main to Sub and vice versa >
Refer to the installation manual attached to the remote controller.

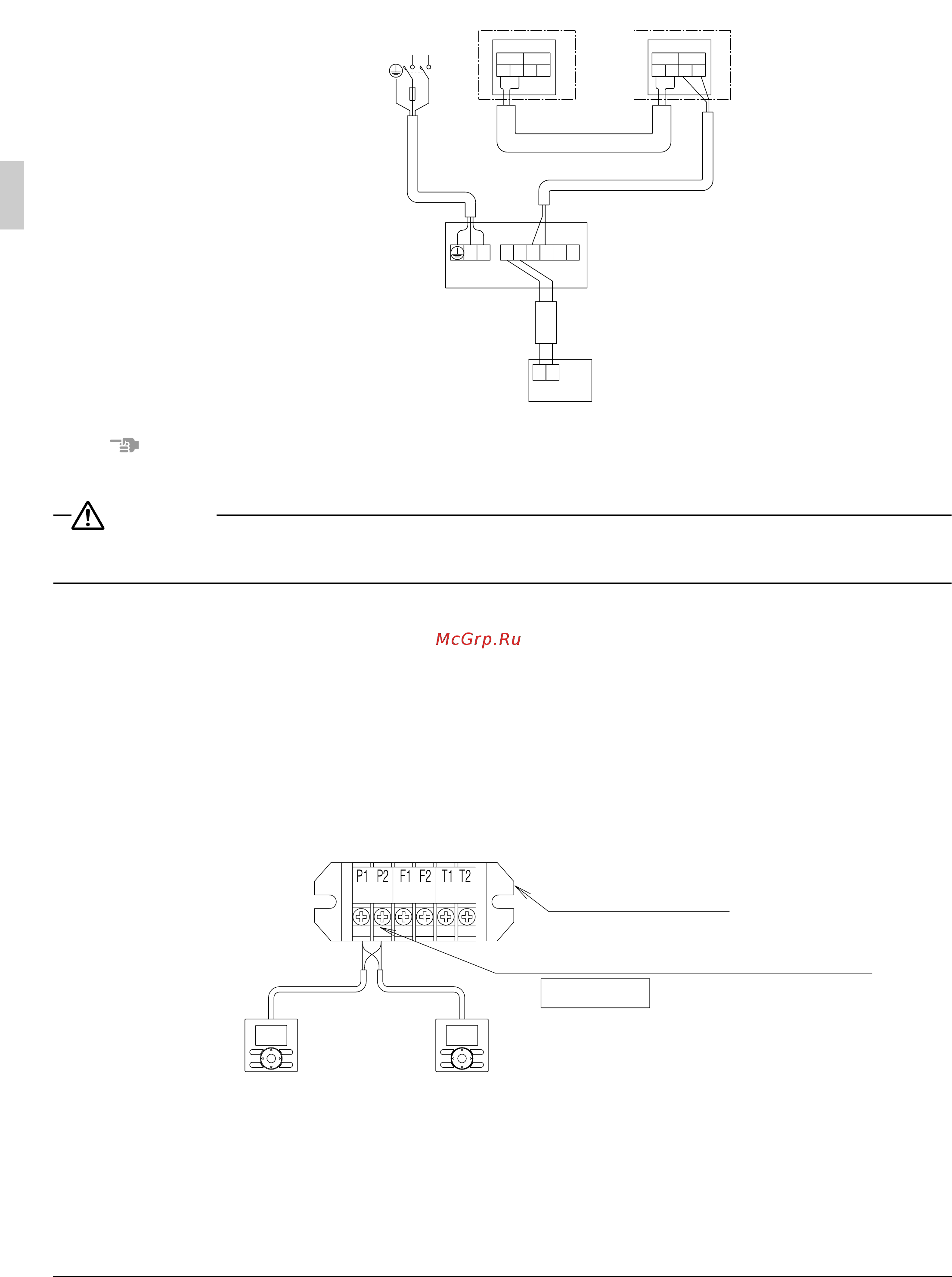

< Wiring method >
(1) Remove the control box lid.
(2) Connect the wiring to the terminals for remote controller 2 (Sub) in the control box.
Outdoor unit
BS unit
LN
Indoor unit A
Remote controller
(option)
F2F1 F2F1 F2F1 F2F1
IN/D
IN/D
OUT/D OUT/D
NL
Power supply
220-240V
~
50Hz
P1 P2
P1 P2 F1 F2 T1 T2
Terminal for remote controller wiring (P1, P2)
No polarity
Remote controller 2
(Sub)
Remote controller 1
(Main)
Terminal block (X1M)
01_EN_3P249378-7M.fm Page 23 Wednesday, September 12, 2012 1:05 PM
