21 English

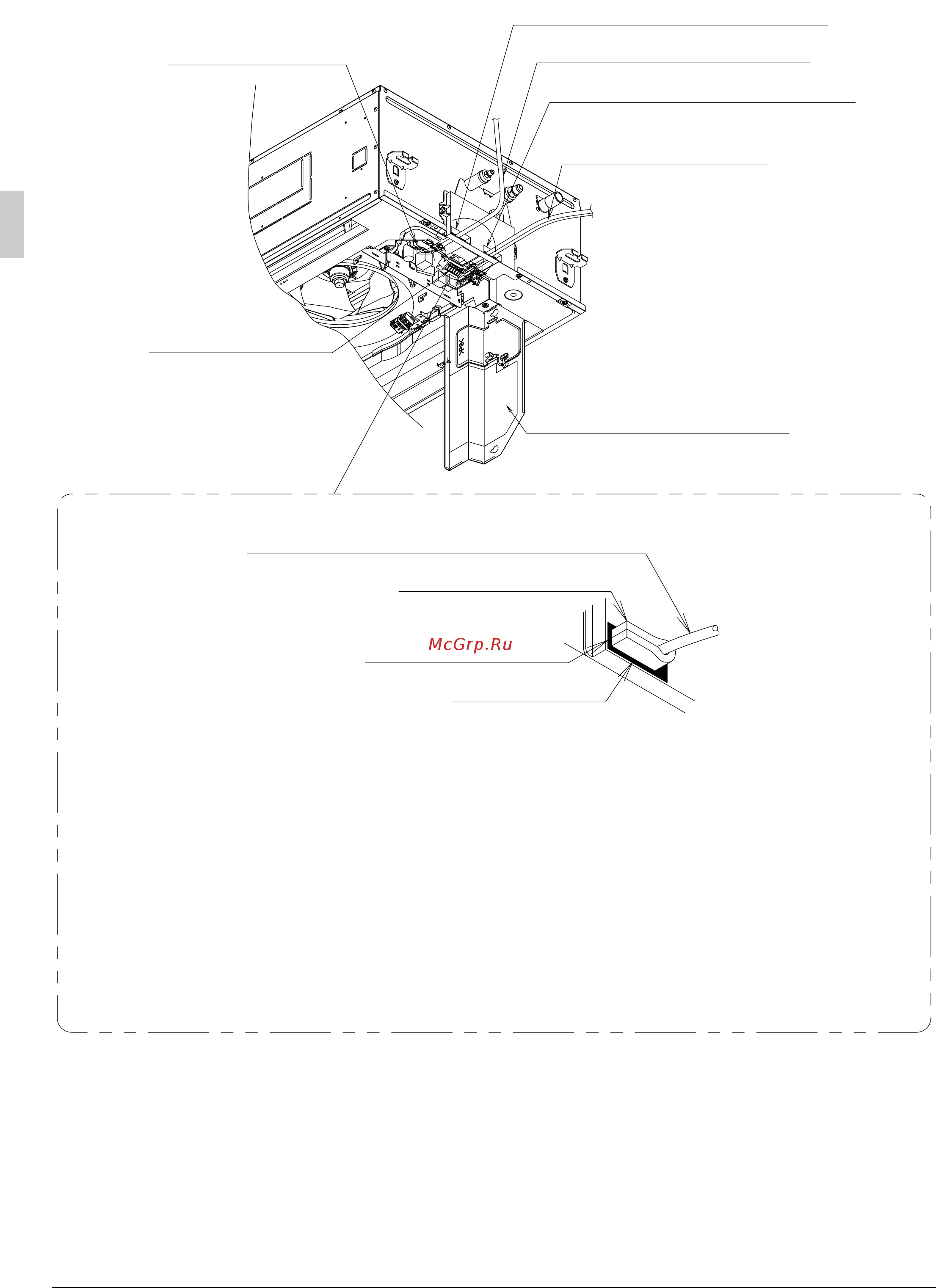

Wiring penetrating hole (high voltage)
Power supply wiring/earth wiring
Wiring penetrating hole (low voltage)
Remote controller wiring/
transmission wiring
Wiring diagram label
Terminal block (X1M)
Terminal block (X2M)
Power supply wiring/earth wiring
or remote controller wiring/transmission wiring
Sealing material (12)
(accessory)
Wiring penetrating hole
Putty or insulation
(field supply)
<<Mending method of wiring penetrating hole>>
• After wiring connection is finished, to prevent small animals and insects getting into the indoor unit
from the outside, mend the respective covers for wiring penetrating hole for the power supply
wiring/earth wiring and the remote controller wiring/transmission wiring.
• Fold the wiring sealing material (12) and sandwich the power supply wiring/earth wiring and the
remote controller wiring/transmission wiring respectively with this material and stick it together.
• Seal the clearance around the wirings with putty and insulating material (field supply).
(If insects and small animals get into the indoor unit, short circuiting may occur inside the control
box.)
• Keep the distance of 50mm or more between the low voltage wiring (remote controller wiring,
transmission wiring) and the high voltage wiring (power supply wiring, earth wiring) at anywhere
outside the indoor unit. If both the wirings are laid down together, they may be affected by electric
noise (outside noise) and cause malfunction or failure.
Fig. 19
(on backside of control box lid)
01_EN_3P249378-7M.fm Page 21 Wednesday, September 12, 2012 1:05 PM
