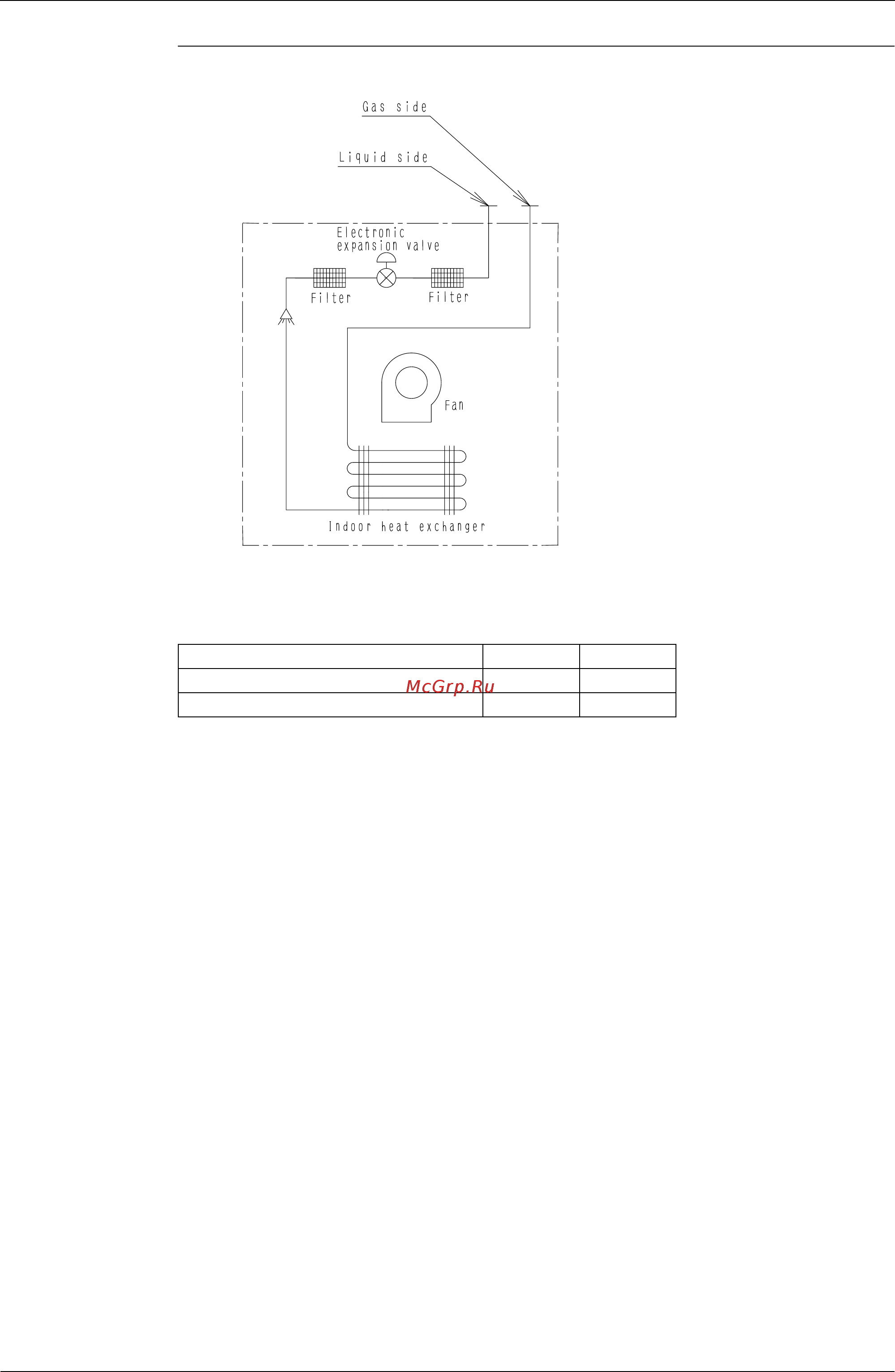

Piping Diagrams SiBE34-703
200 Appendix
FXDQ
Refrigerant pipe connection port diameters
4D043864H
(mm)
Model Gas Liquid
FXDQ20 / 25 / 32 / 40 / 50 φ12.7 φ6.4
FXDQ63 φ15.9 φ9.5
