Troubleshooting by Indication on the Centralized Remote Controller SiBE39-402
164 Troubleshooting
5.3 “M8” Malfunction of Transmission between Optional
Controllers for Centralized Control
Remote
Controller
Display
M8
Applicable
Models
Centralized remote controller
Method of
Malfunction
Detection
Malfunction
Decision
Conditions
Supposed
Causes
! Malfunction of transmission between optional controllers for centralized control
! Defect of PC board of optional controllers for centralized control

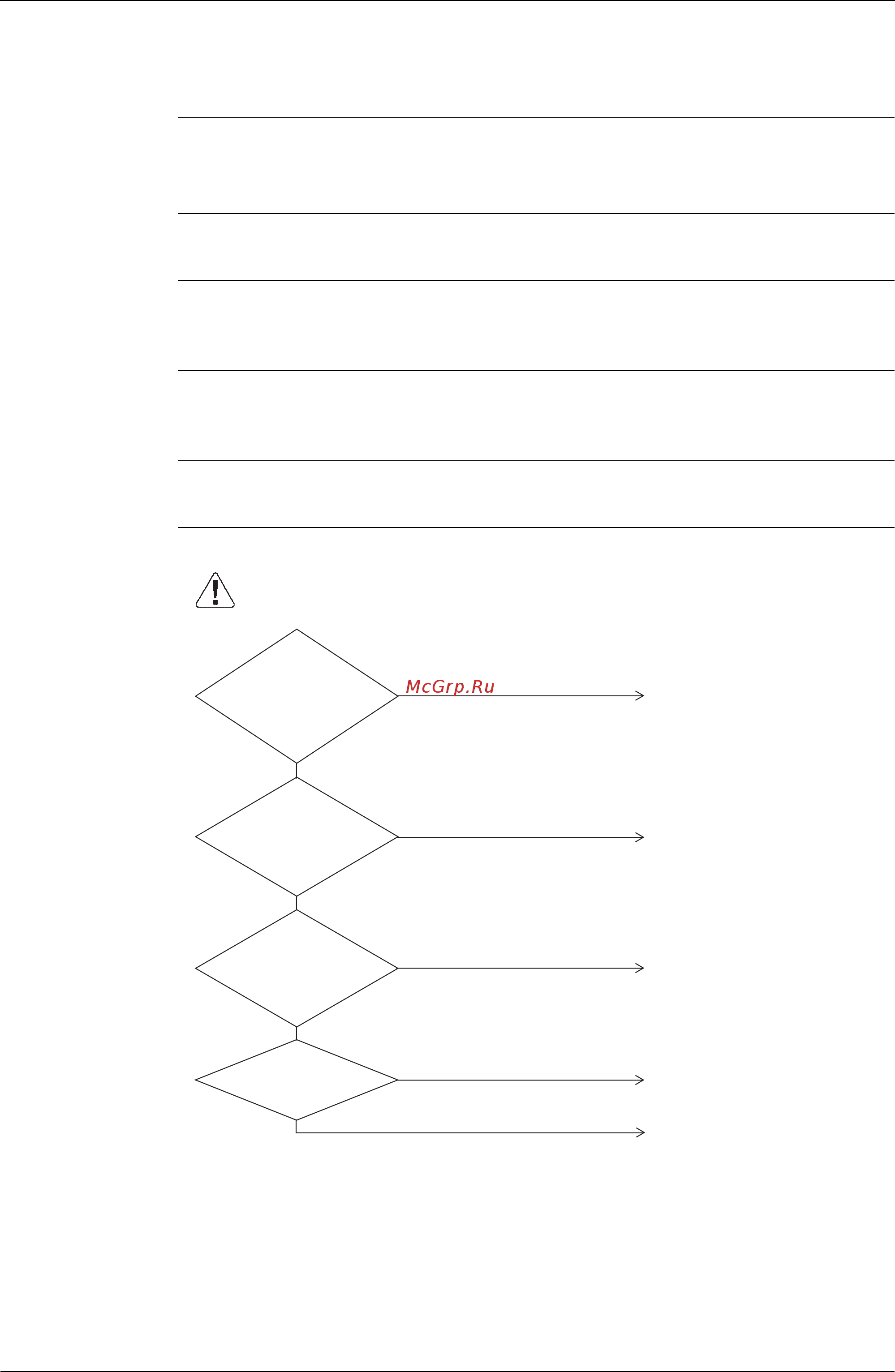

Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
(V2833)
Is
transmission wiring
disconnected or wired
incorrectly?
The PC board of one of the
optional controllers for centralized
control is defective. Try turning
on/off using each optional
controllers for centralized control,
and replace the PC board of the
one that is unable to control the
indoor unit.
NO
NO
Fix the wiring correctly.
YES
YES
Has a once
connected optional
controller for centralized
control been disconnected
or its address
changed?
Turn on power supply for
all
optional controllers for centralized
control.
Reset power supply simultaneously
for all optional controllers for
centralized control.
YES
NO
Is the
power supply
turned on for all optional
controllers for
centralized
control?
Set reset switch to "normal."
YES
NO
Is the
reset switch of all
optional controllers for
centralized control set
to ''normal?''
